2026 Cervelo R5 Dura-Ace Di2

Archived: 2026 Cervelo R5 Dura-Ace Di2 · Road · Published sizes: 48, 51, 54, 56, 58

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Cervélo R5 frame · Fork: Cervélo All-Carbon, Tapered R5 Fork · Carbon Fiber

• Inspect the complete frame for cracks, dents, distortion, heavy abrasion, suspicious paint differences or evidence of a previous repair.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano Dura-Ace, R9270 · Front derailleur: Shimano Dura-Ace, R9250 · Rear derailleur: Shimano Dura-Ace, R9250 · Crankset: Shimano Dura-Ace, R9200, 52/36T · Bottom bracket: Ceramic Speed SL, BBright for 24mm spindle · Cassette: Shimano Dura-Ace, R9200, 11-34T, 12-Speed · Chain: Shimano M9100

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Brake controls: Shimano Dura-Ace, R9270; Rotors: Shimano CL900 Centerlock

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

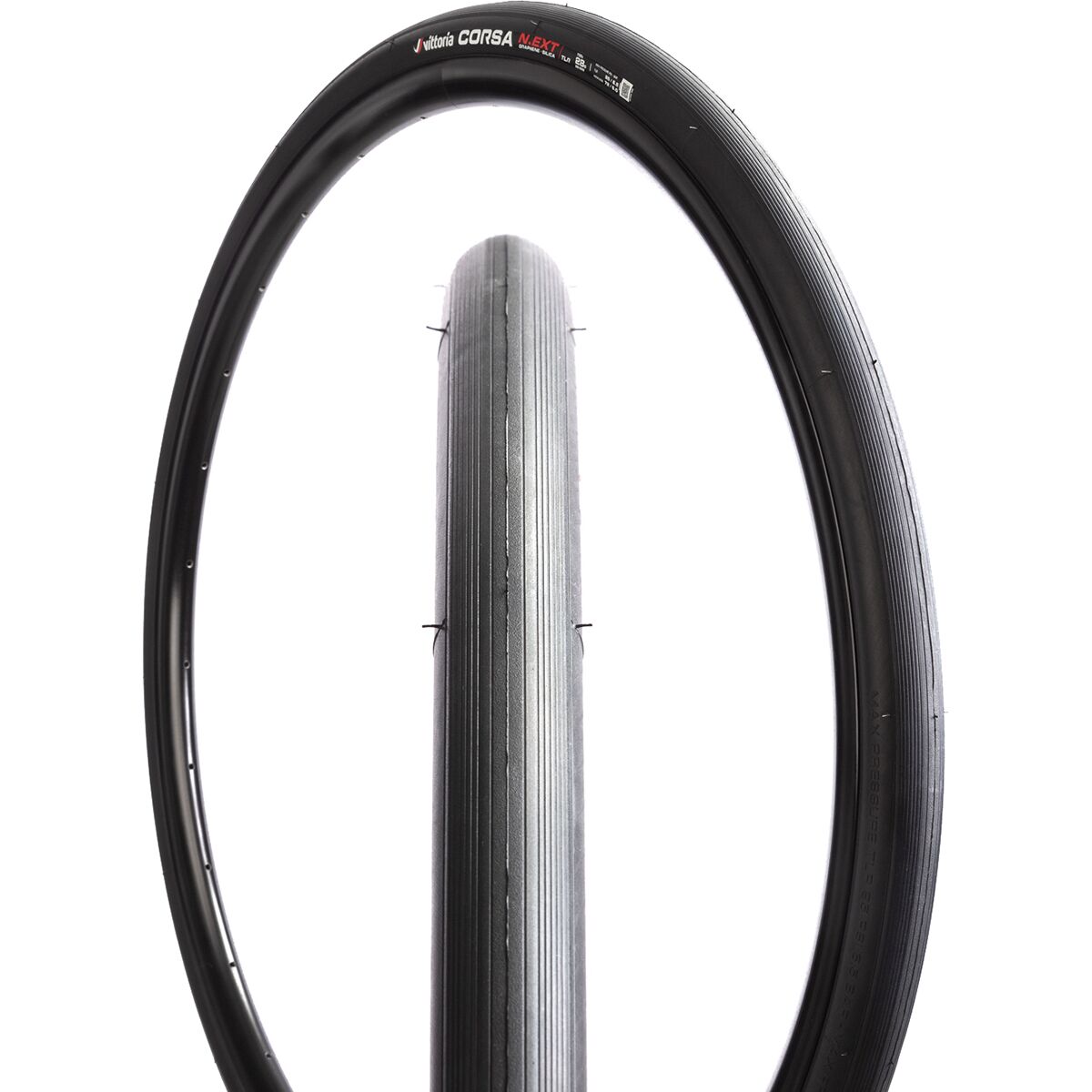

Archived: Wheels: Front: Reserve 34TA SL, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 37TA SL, DT Swiss 180, 12x142mm, HG freehub 24H, centerlock, tubeless compatible · Front tire: Vittoria Corsa Pro Speed TLR G2.0 700x26c · Rear tire: Vittoria Corsa Pro Speed TLR G2.0 700x26c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° · Handlebar: Cervélo HB18 Carbon · Seatpost: Cervélo SP33 Carbon · Saddle: Prologo Nago R4 PAS Nack Lightweight

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
