2026 Cannondale SuperX 4 AXS

Archived: 2026 Cannondale SuperX 4 AXS · Cyclocross/Gravel · Published sizes: 46, 51, 54, 56, 58, 61

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder · Fork: SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset · Carbon fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

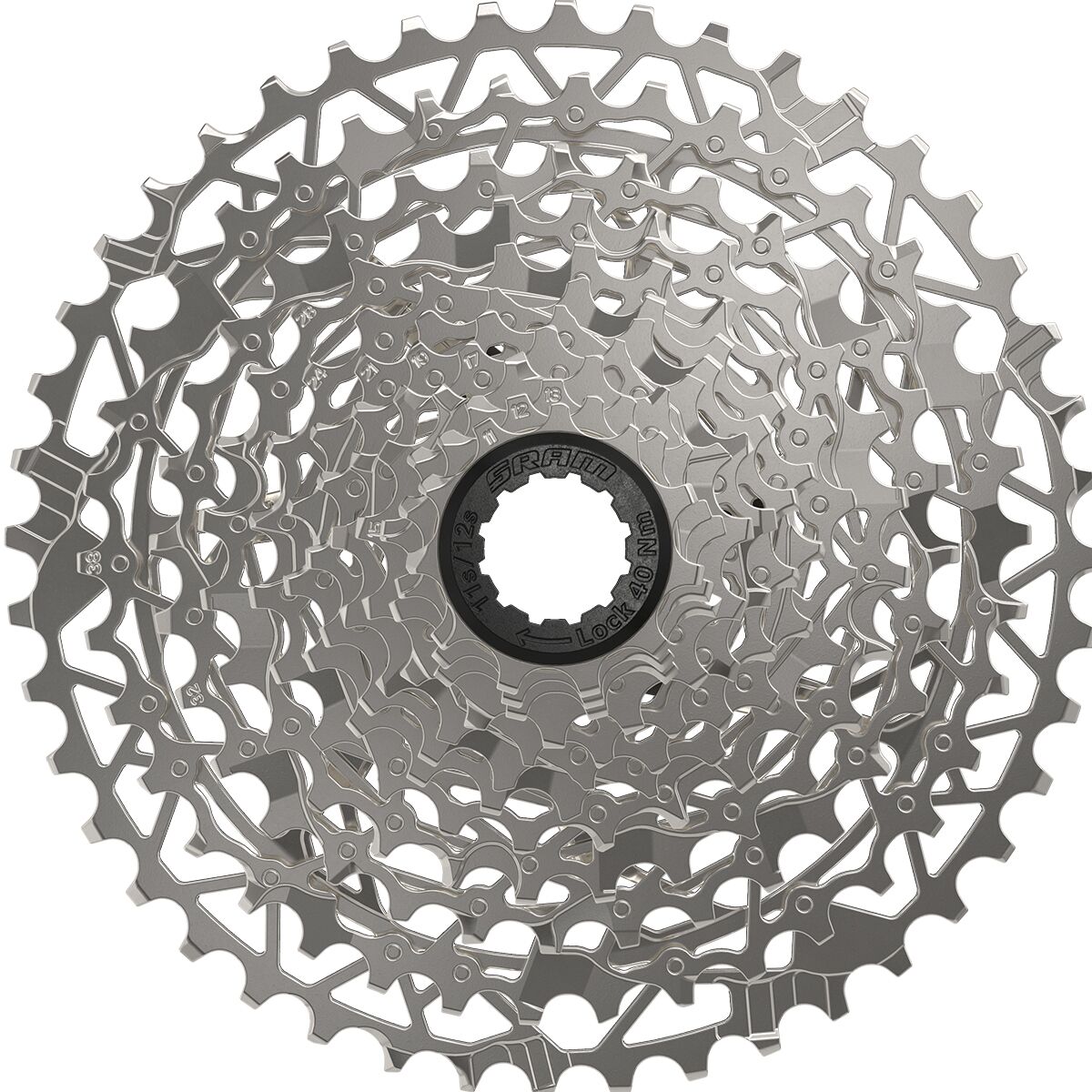

Archived: Shifters: SRAM Apex AXS, 12-speed · Rear derailleur: SRAM Apex AXS XPLR, 12-speed · Crankset: SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51-54cm), 172.5 (56-58cm), 175mm (61cm) · Bottom bracket: SRAM DUB BSA Road 68 Wide · Rear cogs: SRAM Apex XPLR PG-1231, 11-44, 12-speed · Chain: SRAM Apex, 12-speed

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Brakes SRAM Apex hydraulic disc, Centerline 160/160mm centerlock rotors Brake Levers SRAM Apex AXS hydraulic disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

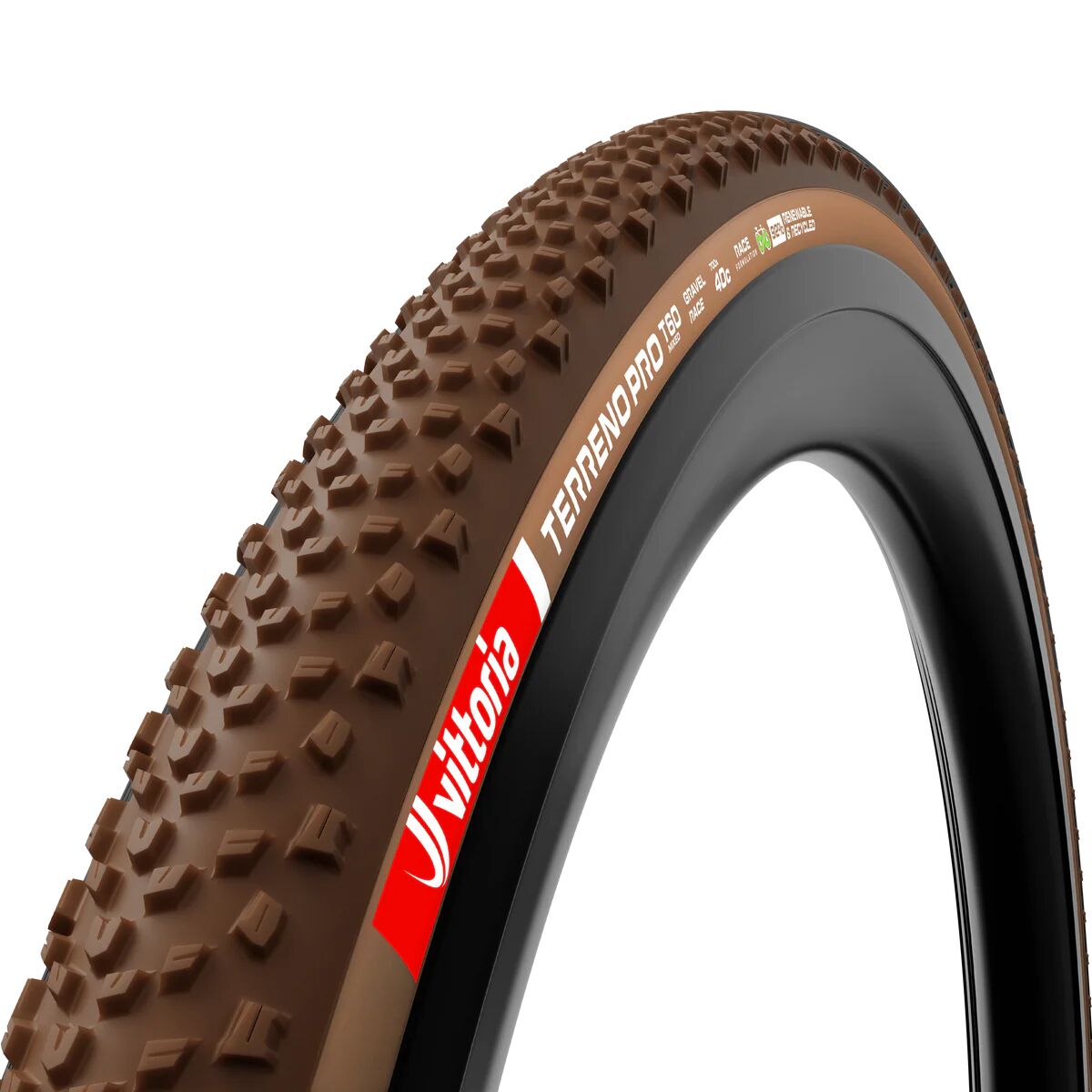

Archived: Wheel size: 700c · Rims: DT Swiss G540, 24mm inner width, 28h, tubeless ready · Hubs: Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm · Front tire: Vittoria Terreno T50, 700x40c, tubeless ready · Rear tire: Vittoria Terreno T50, 700x40c, tubeless ready

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: Integrated, 1-1/8" - 1.5" · Handlebar: Vision Trimax Aero Alloy : 400mm (46-58cm), 420mm (61cm) · Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm) · Seatpost: Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm) · Saddle: Fizik Vento Argo X5, S-Alloy rails, 140mm

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
