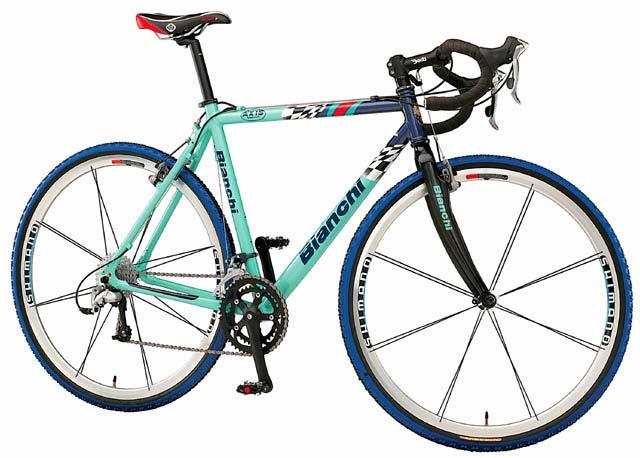

2002 Bianchi Axis

Cyclocross bicycle from the Velopedia specification archive.

Original MSRP
$1,299.99
Sizes
49cm, 52cm, 55cm, 58cm, 61cm
Colors
Bianchi MTB Team Celeste
Archive ID
37495

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame MaterialEaston Ultralite
ForkBianchi carbon
Fork MaterialCarbon fiber composite w/alloy steerer, aero crown
Rear ShockN/A

Drivetrain

Component GroupCyclocross Mix
ShiftersShimano 105 STI Dual Control
Front DerailleurShimano LX, top-pull/clamp-on
Rear DerailleurShimano Deore XT
CranksetSugino XD-500D, 36/48 teeth
Bottom BracketCartridge, 107mm spindle
Rear Cogs9-speed, 11 - 32 teeth
ChainShimano CN-HG53, 1/2 x 3/32"
PedalsKoski Revolver clipless

Brakes

BrakesAvid Shorty 6 brakes, Shimano 105 STI Dual Control levers

Cockpit & Contact Points

Headset1 1/8" threadless Aheadset SAS
HandlebarTitec Malone
Handlebar ExtensionsNot included
StemDeda Elementi Linx
SaddleWTB Rocket V-Comp
SeatpostBianchi alloy, 26.8mm diameter

Wheels & Tires

HubsShimano WH-R535
RimsShimano WH-R535, 16-hole
SpokesShimano stainless steel, 14ga. (2.0mm) bladed
Spoke NipplesAluminum nipples
Front Tire700 x 35c Kenda Kwick
Wheel Size700c wheels

More 2002 Bianchi Bicycles

View all

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
