Velopedia Bicycle Archive

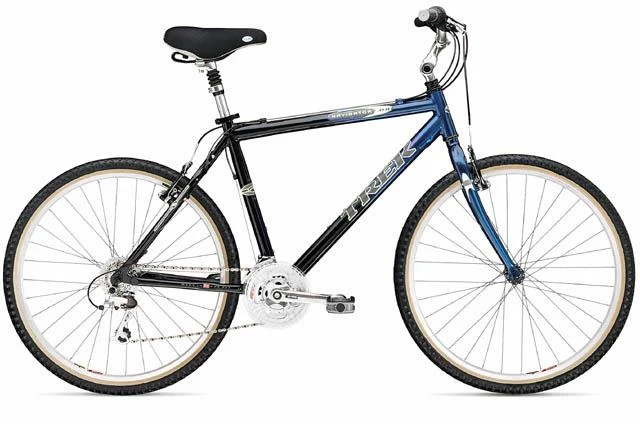

1999 Trek Navigator 300

Mountain bike, non-suspension bicycle from the Velopedia specification archive.

Original MSRP
$439.99
Sizes
Large, medium, small, womens large, womens medium, xlarge, xxlarge
Colors
Ice Green
Weight
29
Archive ID
87202

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum
ForkTrek
Fork MaterialChromoly
Rear ShockN/A

Drivetrain

Component GroupMountain Mix
ShiftersGrip Shift Centera
Front DerailleurShimano Altus, top-pull/bottom bracket mount
Rear DerailleurShimano Alivio
CranksetShimano Altus, 24/34/44 teeth
Bottom BracketShimano BB-CT92E, 121mm spindle
BB Shell Width73mm English
Rear Cogs8-speed, 11 - 30 teeth
ChainKAZ LR900, 1/2 x 3/32"
PedalsPlatform

Brakes

BrakesLee Chi TX22 brakes, Lee Chi LV77E levers

Cockpit & Contact Points

Headset1 1/8" Victor VP-H992W
HandlebarSteel, rise
Handlebar ExtensionsNot included
StemAlloy, suspension
SaddleVelo
SeatpostPolygon, suspension, 27.2mm diameter

Wheels & Tires

HubsFront: Kung Ten W55F, Rear: Kung Ten W5ER
RimsWeinmann 519, 32-hole
SpokesStainless steel, 2.0mm straight gauge
Spoke NipplesBrass nipples
Front Tire26 x 1.95" street tread
Wheel Size26" wheels

More 1999 Trek Bicycles

View all

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
