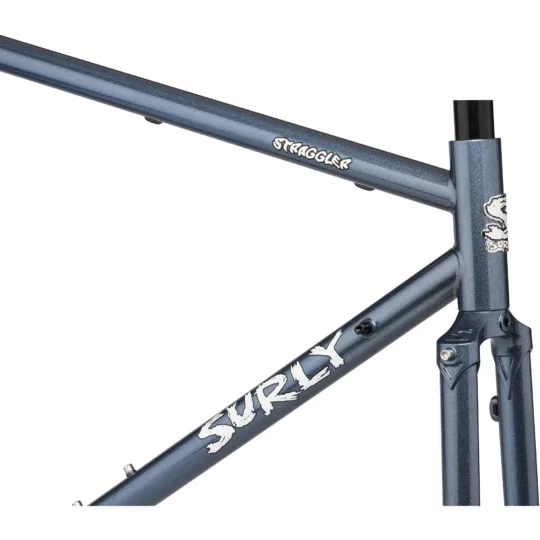

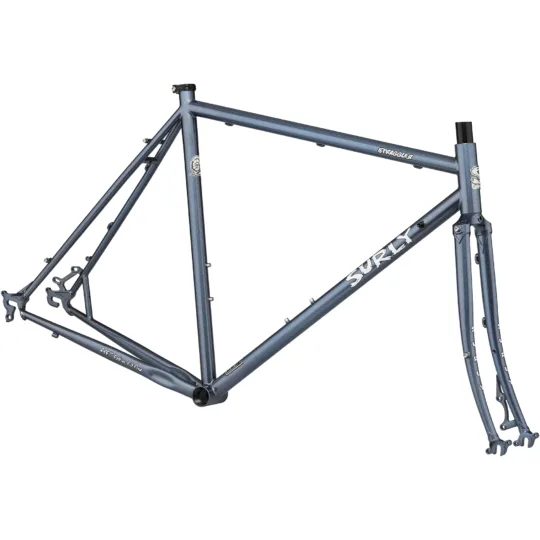

Surly Straggler 700c Frameset - Cold Steel Blue

Cyclocross/Gravel bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $699.00
Sizes: 54cm; 56cm; 58cm; 60cm; 62cm
Colors: Cold Steel Blue
Geometry: 5 manufacturer sizes
Archive ID: 900000379
Catalog verified: August 12, 2026

Current market

Checking current listings…

Frameset

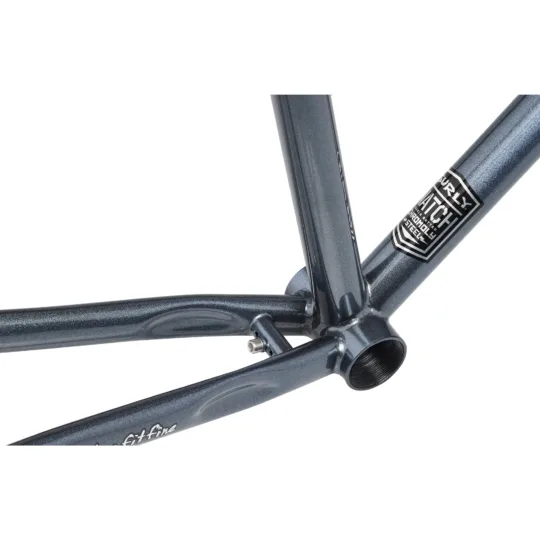

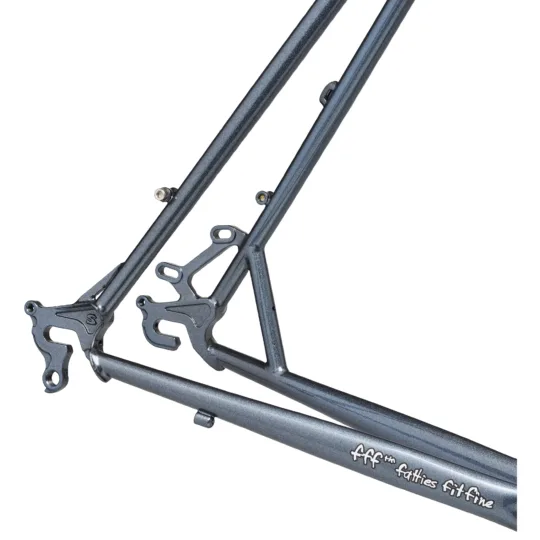

Frame Construction	Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing. ED Coated. TIG-welded. Double-butted main triangle
Frame Material	Steel
Fork	Surly Straggler, 4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets
Fork Material	Steel

Wheels & Tires

Wheel Size	650B

Size-specific frame data

Geometry

5 sizes · 13 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	54cm	56cm	58cm	60cm	62cm
Seat tube	540 mm	560 mm	580 mm	600 mm	620 mm
Effective top tube	565 mm	580 mm	595 mm	610 mm	625 mm
Head tube	107 mm	121 mm	146 mm	165 mm	185 mm
Head-tube angle	72°	72°	72°	72°	72°
Seat-tube angle	73°	72.5°	72.5°	72°	72°
Chainstay / rear center	425 mm	430 mm	430 mm	430 mm	430 mm
Wheelbase	1016.5 mm	1031.9 mm	1047 mm	1056.8 mm	1071.8 mm
Bottom-bracket drop	72 mm	72 mm	72 mm	72 mm	72 mm
Reach	396.3 mm	400.7 mm	408.2 mm	412.1 mm	420.9 mm
Stack	549.2 mm	567.3 mm	591.1 mm	609.1 mm	628.2 mm
Standover height	791.7 mm	809.4 mm	828.7 mm	846.1 mm	865 mm
Fork offset / rake	44 mm	44 mm	44 mm	44 mm	44 mm
Fork length / axle-to-crown	400 mm	400 mm	400 mm	400 mm	400 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
