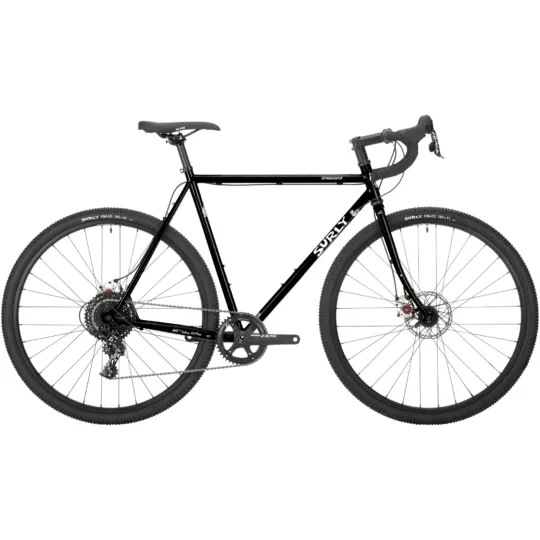

Surly Straggler 700c - Black

Cyclocross/Gravel bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $1,699.00
Sizes: 54cm; 56cm; 58cm; 60cm; 62cm
Colors: Black
Geometry: 5 manufacturer sizes
Archive ID: 900000376
Catalog verified: August 12, 2026

Current market

Checking current listings…

Frameset

Frame Construction	Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing. ED Coated. TIG-welded. Double-butted main triangle
Frame Material	Steel
Fork	Surly Straggler, 4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets
Fork Material	Steel

Drivetrain

Shifters	SRAM Apex
Front Derailleur	N/A
Rear Derailleur	SRAM Apex 1x11
Crankset	SRAM FC Apex 42t
Bottom Bracket	SRAM GXP
Cassette	SunRace CSMS7, 11–42t, 11spd
Chain	CNP1110

Brakes

Brakes	Brake Calipers: SRAM Avid BB7 Road; Brake Levers: SRAM Apex; Rotors: SRAM 160/160, 6-Bolt

Cockpit & Contact Points

Headset	Cane Creek 40
Handlebar	Salsa Cowbell
Stem	31.8, 4-bolt
Saddle	WTB Volt 142
Seatpost	Promax SP-2016 offset on 54-64cm frames, 27.2 x 350mm

Wheels & Tires

Hubs	(F) Novatec 10 x 100mm QR, 6-Bolt, 32h / (R) Novatec 10 x 135mm QR, 6-Bolt, 32h
Rims	Alex Adventurer 2, tubeless ready
Spokes	14G Black
Front Tire	Surly Knard 700c x 41mm, 33 tpi
Rear Tire	Surly Knard 700c x 41mm, 33 tpi
Wheel Size	700C; 650B

Size-specific frame data

Geometry

5 sizes · 16 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	54cm	56cm	58cm	60cm	62cm
Seat tube	540 mm	560 mm	580 mm	600 mm	620 mm
Effective top tube	565 mm	580 mm	595 mm	610 mm	625 mm
Head tube	107 mm	121 mm	146 mm	165 mm	185 mm
Head-tube angle	72°	72°	72°	72°	72°
Seat-tube angle	73°	72.5°	72.5°	72°	72°
Chainstay / rear center	425 mm	430 mm	430 mm	430 mm	430 mm
Wheelbase	1016.5 mm	1031.9 mm	1047 mm	1056.8 mm	1071.8 mm
Bottom-bracket drop	72 mm	72 mm	72 mm	72 mm	72 mm
Reach	396.3 mm	400.7 mm	408.2 mm	412.1 mm	420.9 mm
Stack	549.2 mm	567.3 mm	591.1 mm	609.1 mm	628.2 mm
Standover height	791.7 mm	809.4 mm	828.7 mm	846.1 mm	865 mm
Fork offset / rake	44 mm	44 mm	44 mm	44 mm	44 mm
Fork length / axle-to-crown	400 mm	400 mm	400 mm	400 mm	400 mm
Crank length	172.5 mm	175 mm	175 mm	175 mm	175 mm
Stem length	100 mm	100 mm	120 mm	120 mm	120 mm
Handlebar width	420 mm	440 mm	440 mm	460 mm	460 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
