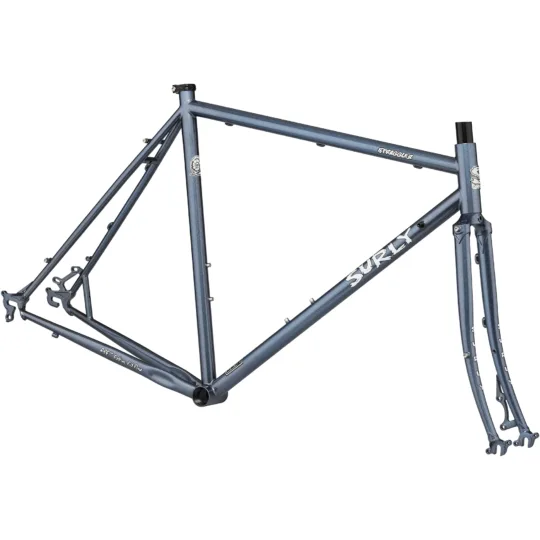

Surly Straggler 650b Frameset - Cold Steel Blue

Original specifications: 650B wheels · geometry for 5 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: Gravel & Cyclocross
Original MSRP: $699.00
Sizes: 38cm, 42cm, 46cm, 50cm, 52cm
Colors: Cold Steel Blue
Geometry: 5 manufacturer sizes
In this record: 5 specifications · 8 archived images · original MSRP · geometry
Archive ID: 900000377

Learn more about Surly →

Original buildSteel · 650B

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

38cm42cm46cm50cm52cm

Published colors

Cold Steel Blue

Frameset

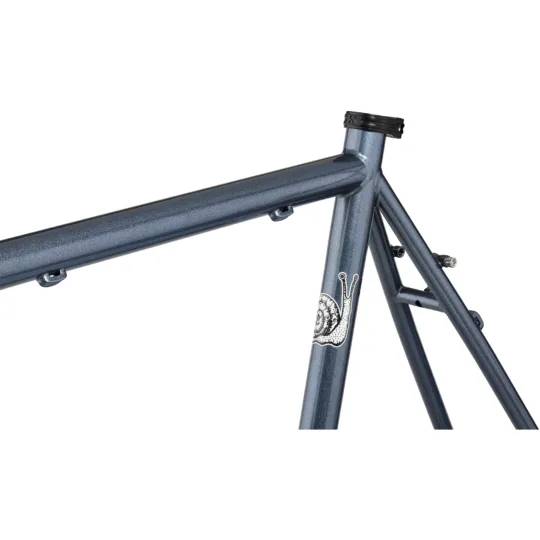

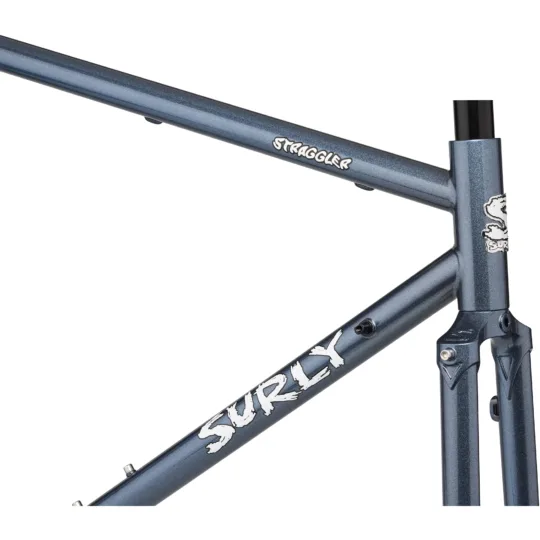

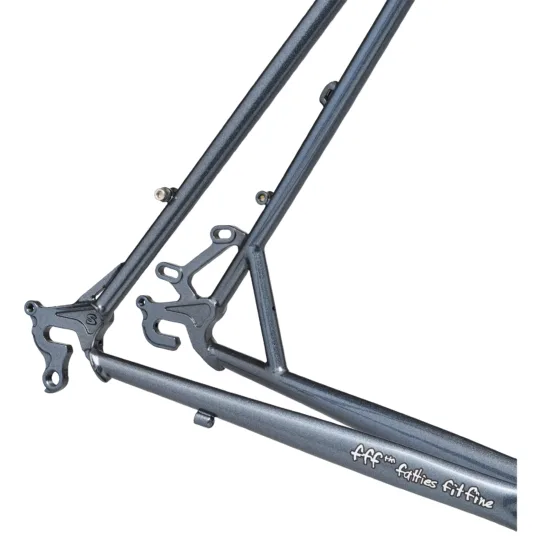

Frame Construction	Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing. ED Coated. TIG-welded. Double-butted main triangle
Frame Material	Steel
Fork	Surly Straggler, 4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets
Fork Material	Steel

Wheels & Tires

Wheel Size	650B

Geometry

5 sizes · 13 measurements

Frame measurements by size.

Measurement	38cm	42cm	46cm	50cm	52cm
Seat tube	380 mm	420 mm	460 mm	500 mm	520 mm
Effective top tube	500 mm	510 mm	520 mm	535 mm	550 mm
Head tube	85 mm	100 mm	110 mm	120 mm	130 mm
Head-tube angle	69.5°	70°	71°	71.5°	72°
Seat-tube angle	75.5°	74.5°	74°	74°	73°
Chainstay / rear center	405 mm	405 mm	405 mm	405 mm	405 mm
Wheelbase	980 mm	978 mm	977 mm	988 mm	990 mm
Bottom-bracket drop	54 mm	54 mm	54 mm	54 mm	54 mm
Reach	371 mm	369 mm	371 mm	383 mm	386 mm
Stack	483 mm	498 mm	511 mm	523 mm	534 mm
Standover height	704 mm	726 mm	751 mm	776 mm	789 mm
Fork offset / rake	44 mm	44 mm	44 mm	44 mm	44 mm
Fork length / axle-to-crown	380 mm	380 mm	380 mm	380 mm	380 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
