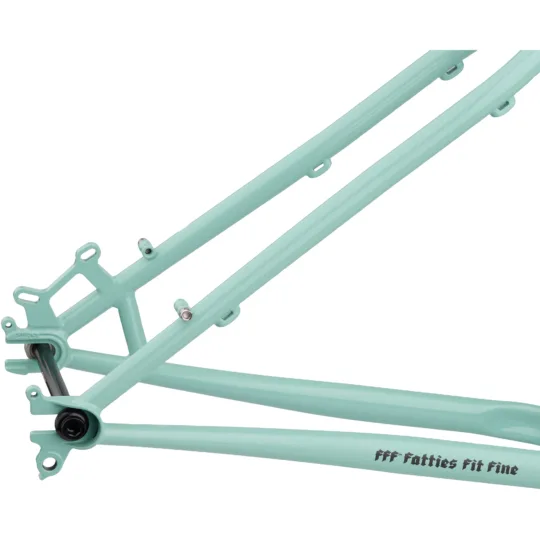

Surly Krampus Frameset - Blue Oyster Coat

Original specifications: 29" wheels · geometry for 4 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: Mountain
Original MSRP: $1,099.00
Sizes: S, M, L, XL
Colors: Blue Oyster Coat
Geometry: 4 manufacturer sizes
In this record: 5 specifications · 7 archived images · original MSRP · geometry
Archive ID: 900000879

Original buildSteel · 29"

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Blue Oyster Coat

Frameset

Frame Construction	Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
Frame Material	Steel
Fork	Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
Fork Material	Steel

Wheels & Tires

Wheel Size	29"

Geometry

4 sizes · 13 measurements

Frame measurements by size.

Measurement	Small	Medium	Large	X-Large
Seat tube	368 mm	419 mm	470 mm	521 mm
Effective top tube	585 mm	610 mm	635 mm	660 mm
Head tube	90 mm	100 mm	110 mm	120 mm
Head-tube angle	69°	69°	69°	69°
Seat-tube angle	73°	73°	73°	73°
Chainstay / rear center	435 mm	435 mm	435 mm	435 mm
Wheelbase	1087 mm	1113 mm	1138 mm	1164 mm
Bottom-bracket drop	65 mm	65 mm	65 mm	65 mm
Reach	404 mm	426 mm	448 mm	470 mm
Stack	593 mm	602 mm	612 mm	621 mm
Standover height	770 mm	797 mm	825 mm	853 mm
Fork offset / rake	47 mm	47 mm	47 mm	47 mm
Fork length / axle-to-crown	483 mm	483 mm	483 mm	483 mm

Dimensions as recorded.
