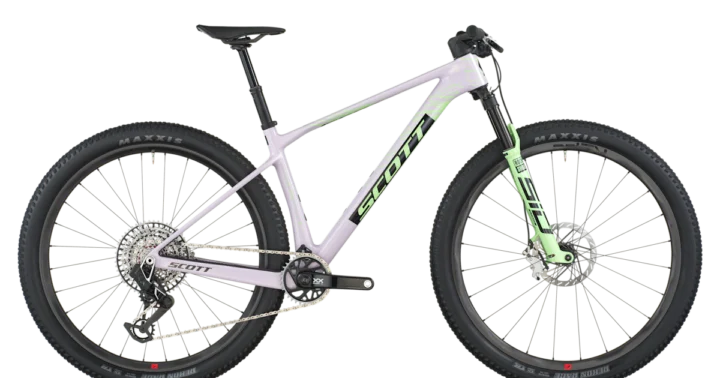

2026 Scott Scale RC World Cup

Original manufacturer specifications including 29 wheels, 9.6 (Tubeless setup) kg published weight, geometry for 4 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2026
Category
Mountain
Original MSRP
$8,499.99
Sizes
S, M, L, XL
Weight
9.6 (Tubeless setup) kg
Geometry
4 manufacturer sizes · Geometry context
Record coverage
19 preserved details · 2 archived images · original MSRP · preserved geometry
Archive ID
900001946
Model history 1 other year
Campaign

Manufacturer catalog

Published sizes and colors

4 sizes

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Frameset

Frame ConstructionScale Carbon HMX Adjustable head angle, Syncros Cable Integration System Advanced Shock & Standing Damping System BB92, UDH Interface, 12x148mm with 55mm Chainline
Frame MaterialCarbon Fiber
ForkRockShox SID SL Ultimate 3P Air Charger Race Day 2 Damper 3-Modes 15x110mm Maxle Stealth, 44mm offset /Tapered steerer Lockout, Reb. Adj., 110mm travel

Drivetrain

ShiftersSRAM AXS Rocker Pod Controller
Rear DerailleurSRAM XX SL Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
CranksetSRAM XX Eagle AXS Transmission Carbon crankarm, Spindle Power Meter DUB 55mm CL, 34T
Bottom BracketSRAM DUB PF 92 MTB Wide, shell 41x92mm
CassetteSRAM XX Eagle XS 1297 Transmission 10-52
ChainSRAM CN XX Eagle Transmission

Brakes

BrakesSRAM Motive Ultimate 4-Piston Disc; Rotors: SRAM HS2 CL Rotors 180/F and 160/R

Cockpit & Contact Points

HeadsetSyncros - Acros Angle adjust & Cable Routing HS System Stainless +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
HandlebarSyncros Fraser iC SL XC Carbon -12° rise, back sweep 8°, 740mm Syncros Performance XC lock-on grips
SaddleSyncros Belcarra V1.0 Cut Out Carbon rails
SeatpostSyncros Duncan Dropper 1.5XC, 31.6mm all sizes 100mm

Wheels & Tires

WheelsFulcurm Red Zone Carbon CL F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rims 28H, XD Driver Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Front TireMaxxis Rekon Race, 29x2.4", 120TPI Foldable Bead,Tubeless Ready, EXO
Rear TireMaxxis Rekon Race, 29x2.4", 120TPI Foldable Bead,Tubeless Ready, EXO
Wheel Size29

Size-specific frame data

Geometry

4 sizes · 15 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementSMLXL
Seat tube390 mm440 mm480 mm530 mm
Effective top tube575 mm600.2 mm626 mm656.5 mm
Head tube90 mm95 mm110 mm120 mm
Head-tube angle67.9°67.9°67.9°67.9°
Seat-tube angle75.4°75.4°75.3°75.3°
Chainstay / rear center425 mm425 mm425 mm425 mm
Wheelbase1105.4 mm1131.1 mm1158 mm1189.4 mm
Bottom-bracket drop62 mm62 mm62 mm62 mm
Bottom-bracket height313 mm313 mm313 mm313 mm
Reach418.5 mm442.3 mm463.6 mm491.2 mm
Stack600.3 mm604.9 mm618.9 mm628.1 mm
Standover height752 mm781 mm800 mm835.1 mm
Trail105 mm105 mm105 mm105 mm
Fork length / axle-to-crown506 mm506 mm506 mm506 mm
Stem length50 mm60 mm70 mm80 mm

Geometry source: SCOTT first-party numeric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

S geometry

Archive context: Its bottom-bracket drop of 62 mm sits toward the deeper-drop end. Its wheelbase of 1105.4 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.

Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry

Parts & serviceability

Find replacement parts

3 top part searches
ChainMatching configuration
SRAM CN XX Eagle Transmission Interpreted as SRAM XX · 12-speed Component family — verify exact version
CassetteMatching configuration
SRAM XX Eagle XS 1297 Transmission 10-52 Interpreted as SRAM XX · 12-speed Component family — verify exact version
Front tireMatching fit standard
Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead,Tubeless Ready, EXO Named tire and published size
More qualified parts (6)
Bottom bracketExact archived part
SRAM DUB PF 92 MTB Wide, shell 41x92mm Named archived component — verify dimensions
SaddleQualified part search
Syncros Belcarra V1.0 Cut Out Carbon rails Named archived component — verify exact version
CranksetQualified part search
SRAM XX Eagle AXS Transmission Carbon crankarm, Spindle Power Meter DUB 55mm CL, 34T Component family — verify exact version
Rear derailleurMatching configuration
SRAM XX SL Eagle AXS Transmission 12 Speed Wireless Electronic Shift System Interpreted as SRAM XX SL · 12-speed · electronic Component family — verify exact version
HandlebarQualified part search
Syncros Fraser iC SL XC Carbon -12° rise, back sweep 8°, 740mm Syncros Performance XC lock-on grips Named archived component — verify dimensions
SeatpostQualified part search
Syncros Duncan Dropper 1.5XC, 31.6mm all sizes 100mm Dropper post identified — verify travel, routing and insertion depth

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
  • BrakesBoth brakes should stop firmly and release without rubbing. Inspect pad thickness, rotor wear and alignment, and check the cables or hoses for damage.Inspect the brakes →
  • SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
  • DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 21 checks based on 6 archived component groups Open checklistClose checklist
0 of 21 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2026 Scott Scale RC World Cup · Mountain · Published sizes: S, M, L, XL

Archived: Frame: Scale Carbon HMX Adjustable head angle, Syncros Cable Integration System Advanced Shock & Standing Damping System BB92, UDH Interface, 12x148mm with 55mm Chainline · Fork: RockShox SID SL Ultimate 3P Air Charger Race Day 2 Damper 3-Modes 15x110mm Maxle Stealth, 44mm offset /Tapered steerer Lockout, Reb. Adj., 110mm travel

Archived: Fork: RockShox SID SL Ultimate 3P Air Charger Race Day 2 Damper 3-Modes 15x110mm Maxle Stealth, 44mm offset /Tapered steerer Lockout, Reb. Adj., 110mm travel

Archived: Shifters: SRAM AXS Rocker Pod Controller · Rear derailleur: SRAM XX SL Eagle AXS Transmission 12 Speed Wireless Electronic Shift System · Crankset: SRAM XX Eagle AXS Transmission Carbon crankarm, Spindle Power Meter DUB 55mm CL, 34T · Bottom bracket: SRAM DUB PF 92 MTB Wide, shell 41x92mm · Cassette: SRAM XX Eagle XS 1297 Transmission 10-52 · Chain: SRAM CN XX Eagle Transmission

Archived: Brakes: SRAM Motive Ultimate 4-Piston Disc; Rotors: SRAM HS2 CL Rotors 180/F and 160/R

Archived: Wheel size: 29 · Wheels: Fulcurm Red Zone Carbon CL F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rims 28H, XD Driver Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools · Front tire: Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead,Tubeless Ready, EXO · Rear tire: Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead,Tubeless Ready, EXO

Controls and contact points

Archived: Headset: Syncros - Acros Angle adjust & Cable Routing HS System Stainless +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB · Handlebar: Syncros Fraser iC SL XC Carbon -12° rise, back sweep 8°, 740mm Syncros Performance XC lock-on grips · Seatpost: Syncros Duncan Dropper 1.5XC, 31.6mm all sizes 100mm · Saddle: Syncros Belcarra V1.0 Cut Out Carbon rails

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
