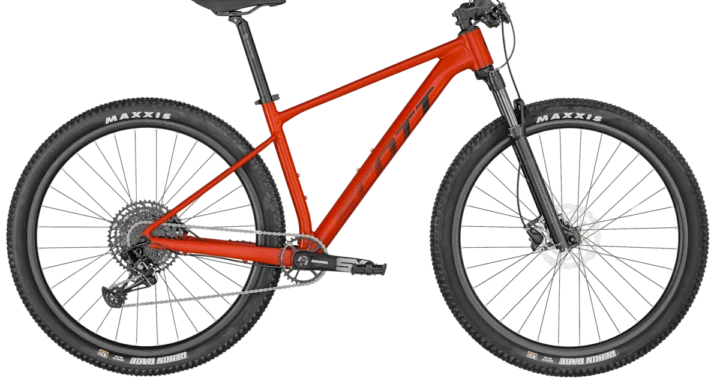

2026 Scott Scale 970
Original manufacturer specifications including 13.5 (with tubes / wo Pedals) kg published weight, geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $1,399.99
- Sizes
- XS, S, M, L, XL, XXL
- Weight
- 13.5 (with tubes / wo Pedals) kg
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001952
Model history 2 other years
Frameset
| Frame Construction | Scale Alloy 6061 Custom Butted Tubing Syncros Cable Integration System / Tapered Headtube BB92 / QR 5x141mm with 55mm Chainline |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Judy Silver TK Solo Air 46mm offset / Tapered Steerer / Reb. Adj. Lockout / 100mm travel |
Drivetrain
| Shifters | SRAM SX Eagle Trigger |
|---|---|
| Rear Derailleur | SRAM NX Eagle 12 Speed |
| Crankset | SRAM SX Eagle DUB 55mm CL / 32T |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Cassette | SRAM SX-PG1210 / 11-50 T |
| Chain | SRAM CN SX Eagle |
| Pedals | Femin FP873ZU |
Brakes
| Brakes | Shimano MT200 DiscBrake; Rotors: Shimano SM-RT10 CL / 180/F and 160/R |
|---|
Cockpit & Contact Points
| Headset | Syncros - Acros OE Cable Routing HS System OD 50/62mm / ID 42/56mm |
|---|---|
| Handlebar | Syncros Alloy 6061 T shape Flat / 9° / 740mm Syncros Performance XC grips |
| Stem | Syncros Alloy 6061 oversized 31.8mm / 1 1/8" / 6° angle |
| Saddle | Syncros Belcarra Regular 2.5 |
| Seatpost | Syncros / 31.6x400mm |
Wheels & Tires
| Hubs | (F) Formula CL-51 / (R) Formula CL-2241 / QR 5x141mm Spokes Stainless Black 15G / 1.8mm |
|---|---|
| Rims | Syncros R27 / 32H / 27mm |
| Front Tire | Maxxis Rekon Race / 2.4" / 60TPI |
| Rear Tire | Maxxis Rekon Race / 2.4" / 60TPI |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube | 360 mm | 390 mm | 440 mm | 480 mm | 530 mm | 580 mm |
| Effective top tube | 555 mm | 575 mm | 600 mm | 625 mm | 655 mm | 675 mm |
| Head tube | 90 mm | 90 mm | 100 mm | 110 mm | 120 mm | 120 mm |
| Head-tube angle | 67.4° | 67.4° | 67.4° | 67.4° | 67.4° | 67.4° |
| Seat-tube angle | 75° | 75° | 75° | 75° | 75° | 75° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1091.4 mm | 1111.8 mm | 1138.2 mm | 1164.6 mm | 1195.9 mm | 1215.9 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Bottom-bracket height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Reach | 400.3 mm | 420.3 mm | 442.8 mm | 463.3 mm | 492.9 mm | 512.9 mm |
| Stack | 596.1 mm | 596.1 mm | 605.3 mm | 614.6 mm | 623.8 mm | 623.8 mm |
| Standover height | 745 mm | 755 mm | 786 mm | 805 mm | 835 mm | 870 mm |
| Fork length / axle-to-crown | 160 mm | 506 mm | 506 mm | 506 mm | 506 mm | 112.6 mm |
| Stem length | 50 mm | 50 mm | 60 mm | 70 mm | 80 mm | 80 mm |
Geometry source: SCOTT first-party numeric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its wheelbase of 1091.4 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 56 distinct mountain geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its wheelbase of 1111.8 mm sits toward the shorter end. The chainstay of 425 mm sits toward the shorter rear-center end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its wheelbase of 1138.2 mm sits toward the shorter end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its wheelbase of 1164.6 mm sits toward the shorter end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its wheelbase of 1195.9 mm sits toward the shorter end. Its stack of 623.8 mm sits toward the lower end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XXL geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its stack of 623.8 mm sits toward the lower end. Its wheelbase of 1215.9 mm sits toward the shorter end.
Compared with 23 distinct mountain geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry Parts & serviceability
Find replacement parts
SRAM CN SX Eagle
Interpreted as SRAM SX · 12-speed Named component · published drivetrain speed — verify exact version
Syncros Belcarra Regular 2.5
Named archived component — verify exact version
SRAM NX Eagle 12 Speed
Interpreted as SRAM NX · 12-speed · mechanical Component family — verify exact version
More qualified parts (1)
SRAM SX Eagle Trigger
Interpreted as SRAM SX · 12-speed · mechanical Named component · published drivetrain speed — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth brakes should stop firmly and release without rubbing. Inspect pad thickness, rotor wear and alignment, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Scott Scale 970 · Mountain · Published sizes: XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Scale Alloy 6061 Custom Butted Tubing Syncros Cable Integration System / Tapered Headtube BB92 / QR 5x141mm with 55mm Chainline · Fork: RockShox Judy Silver TK Solo Air 46mm offset / Tapered Steerer / Reb. Adj. Lockout / 100mm travel
Suspension
Evaluate the suspension →Archived: Fork: RockShox Judy Silver TK Solo Air 46mm offset / Tapered Steerer / Reb. Adj. Lockout / 100mm travel
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM SX Eagle Trigger · Rear derailleur: SRAM NX Eagle 12 Speed · Crankset: SRAM SX Eagle DUB 55mm CL / 32T · Bottom bracket: SRAM DUB PF 92 MTB Wide / shell 41x92mm · Cassette: SRAM SX-PG1210 / 11-50 T · Chain: SRAM CN SX Eagle
Brakes
Inspect the brakes →Archived: Brakes: Shimano MT200 DiscBrake; Rotors: Shimano SM-RT10 CL / 180/F and 160/R
Wheels and tires
Check wheels and tires →Archived: Rims: Syncros R27 / 32H / 27mm · Hubs: (F) Formula CL-51 / (R) Formula CL-2241 / QR 5x141mm Spokes Stainless Black 15G / 1.8mm · Front tire: Maxxis Rekon Race / 2.4" / 60TPI · Rear tire: Maxxis Rekon Race / 2.4" / 60TPI
Controls and contact points
Archived: Headset: Syncros - Acros OE Cable Routing HS System OD 50/62mm / ID 42/56mm · Handlebar: Syncros Alloy 6061 T shape Flat / 9° / 740mm Syncros Performance XC grips · Stem: Syncros Alloy 6061 oversized 31.8mm / 1 1/8" / 6° angle · Seatpost: Syncros / 31.6x400mm · Saddle: Syncros Belcarra Regular 2.5 · Pedals: Femin FP873ZU
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
