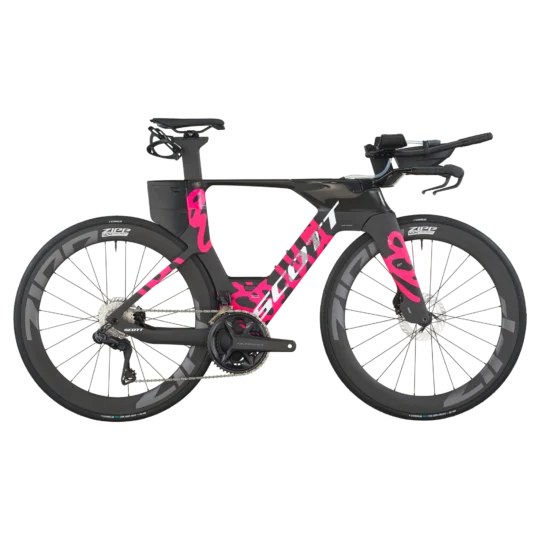

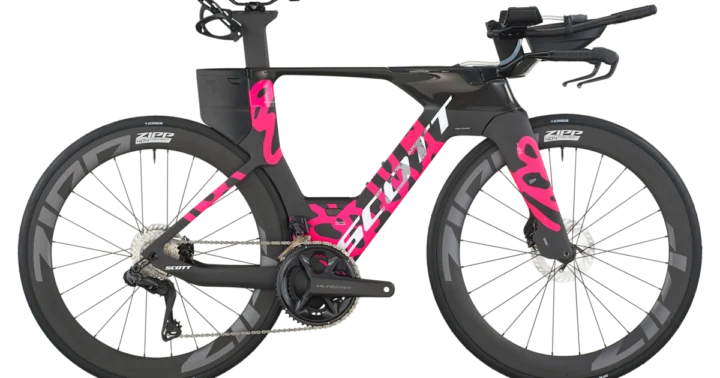

2026 Scott Plasma RC Pro

Original manufacturer specifications including 700c wheels, 9.8 kg published weight, geometry for 5 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2026
Category
Road
Original MSRP
$10,499.99
Sizes
XS, S, M, L, XL
Weight
9.8 kg
Geometry
5 manufacturer sizes · Geometry context
Record coverage
21 preserved details · 2 archived images · original MSRP · preserved geometry
Archive ID
900001916
Model history 1 other year
Campaign

Manufacturer catalog

Published sizes and colors

5 sizes

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Frameset

Frame ConstructionPlasma 6 HMX TRI Geometry, Plasma HMX seatpost, Replaceable Derailleur Hanger
Frame MaterialCarbon Fiber
ForkPlasma 6 HMX 1 1/4"- 1 1/2" Carbon Flatmount Disc
Fork MaterialCarbon Fiber

Drivetrain

ShiftersShimano Di2 SW-R9160 Electronic Shift System
Front DerailleurShimano Ultegra Di2 FD-R8150 Electronic Shift System
Rear DerailleurShimano Ultegra Di2 RD-R8150 24 Speed Electronic Shift System
CranksetShimano Ultegra FC-R8100 52/36 T
Bottom BracketShimano SM-BB71-41B
CassetteShimano Ultegra CS-R8100-12 11-30 Brake Levers Shimano Di2 ST-R9180 Electronic Shift System
ChainShimano CN-M8100-12

Brakes

BrakesShimano BR-R9170 Hyd.Disc; Rotors: Shimano RT-CL800 rotor 160/F and 160/R

Cockpit & Contact Points

HeadsetSyncros Integrated 1 1/4"- 1 1/2" drop-in headset
HandlebarSyncros Creston iC TRI, 400mm, Syncros E1 Carbon extension
SaddleSyncros Belcarra 1.5 TRI
SeatpostSyncros Plasma 6 HMX with Ritchey WCS clamp adjustable head

Wheels & Tires

WheelsZIPP 404 Firecrest Carbon tubeless 24 Front, 24 Rear Syncros SL Axle, Removable Lever with Tool
Front TireSchwalbe PRO ONE Aero, TL-Easy, Fold,700x28C
Rear TireSchwalbe PRO ONE Aero, TL-Easy, Fold,700x28C
Wheel Size700c

Size-specific frame data

Geometry

5 sizes · 12 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementXS/49S/52M/54L/56XL/58
Seat tube503 mm503 mm552.4 mm572.3 mm587.5 mm
Effective top tube509.3 mm529.3 mm555.8 mm582.9 mm609.5 mm
Head tube71.5 mm71.5 mm87 mm108 mm124 mm
Head-tube angle72.5°72.5°72.5°72.5°72.5°
Seat-tube angle75.2°75.2°75.2°75.2°75.2°
Chainstay / rear center410 mm410 mm410 mm410 mm410 mm
Wheelbase962 mm982 mm1011.7 mm1043 mm1072.8 mm
Bottom-bracket drop75 mm75 mm75 mm75 mm75 mm
Bottom-bracket height261 mm261 mm261 mm261 mm261 mm
Reach372.5 mm392.5 mm417.5 mm442.5 mm467.5 mm
Stack520 mm520 mm535 mm555 mm570 mm
Standover height746 mm746 mm795.8 mm815.8 mm831.1 mm

Geometry source: SCOTT first-party numeric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

XS/49 geometry

Archive context: The head angle of 72.5° sits toward the steeper end. Its wheelbase of 962 mm sits toward the shorter end. The seat angle of 75.2° sits toward the steeper end.

Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS/49 geometry

Parts & serviceability

Find replacement parts

3 top part searches
ChainExact archived part
Shimano CN-M8100-12 Exact archived model
Front tireExact archived part
Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C Named tire and published size
Brake padsExact archived part
Shimano BR-R9170 Hyd.Disc Brake model identified — verify pad shape
More qualified parts (6)
Bottom bracketQualified part search
Shimano SM-BB71-41B Named archived component — verify dimensions
SaddleQualified part search
Syncros Belcarra 1.5 TRI Named archived component — verify exact version
CranksetExact archived part
Shimano Ultegra FC-R8100 52/36 T Exact archived model
Front derailleurExact archived part
Shimano Ultegra Di2 FD-R8150 Electronic Shift System Exact archived model
Rear derailleurExact archived part
Shimano Ultegra Di2 RD-R8150 24 Speed Electronic Shift System Exact archived model
HandlebarQualified part search
Syncros Creston iC TRI, 400mm, Syncros E1 Carbon extension Named archived component — verify dimensions

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
  • BrakesBoth brakes should stop firmly and release without rubbing. Inspect pad thickness, rotor wear and alignment, and check the cables or hoses for damage.Inspect the brakes →
  • DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
0 of 20 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2026 Scott Plasma RC Pro · Road · Published sizes: XS, S, M, L, XL

Archived: Frame: Plasma 6 HMX TRI Geometry, Plasma HMX seatpost, Replaceable Derailleur Hanger · Fork: Plasma 6 HMX 1 1/4"- 1 1/2" Carbon Flatmount Disc · Carbon Fiber

Archived: Shifters: Shimano Di2 SW-R9160 Electronic Shift System · Front derailleur: Shimano Ultegra Di2 FD-R8150 Electronic Shift System · Rear derailleur: Shimano Ultegra Di2 RD-R8150 24 Speed Electronic Shift System · Crankset: Shimano Ultegra FC-R8100 52/36 T · Bottom bracket: Shimano SM-BB71-41B · Cassette: Shimano Ultegra CS-R8100-12 11-30 Brake Levers Shimano Di2 ST-R9180 Electronic Shift System · Chain: Shimano CN-M8100-12

Archived: Brakes: Shimano BR-R9170 Hyd.Disc; Rotors: Shimano RT-CL800 rotor 160/F and 160/R

Archived: Wheel size: 700c · Wheels: ZIPP 404 Firecrest Carbon tubeless 24 Front, 24 Rear Syncros SL Axle, Removable Lever with Tool · Front tire: Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C · Rear tire: Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C

Controls and contact points

Archived: Headset: Syncros Integrated 1 1/4"- 1 1/2" drop-in headset · Handlebar: Syncros Creston iC TRI, 400mm, Syncros E1 Carbon extension · Seatpost: Syncros Plasma 6 HMX with Ritchey WCS clamp adjustable head · Saddle: Syncros Belcarra 1.5 TRI

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
