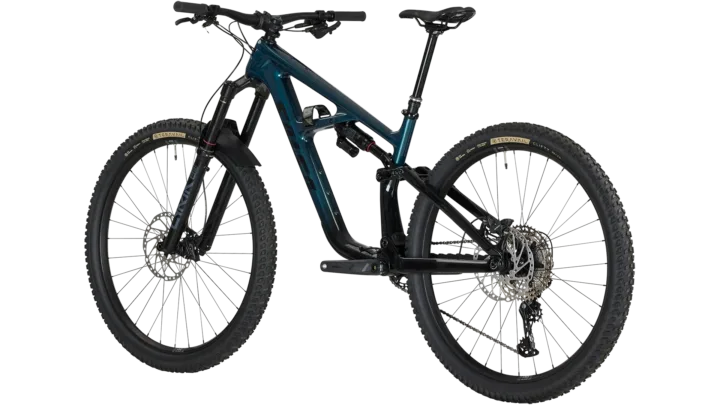

2025 Salsa Blackthorn 145 C Deore 12
Original specifications: 29"; 27.5" wheels · 34lb 13oz published weight · geometry for 4 published sizes.
Selling this bike? Get the spec link and selling options
At a glance
- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $3,999.00
- Sizes
- S, M, L, XL
- Colors
- Black/Slate
- Weight
- 34lb 13oz
- Geometry
- 4 manufacturer sizes
- In this record
- 21 specifications · 3 archived images · original MSRP · geometry
- Archive ID
- 900000347
Original buildCarbon Fiber · 29"; 27.5"
Frameset
| Frame Construction | Carbon |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Lyrik, 160mm |
Drivetrain
| Shifters | Shimano Deore M6100, I-Spec EV |
|---|---|
| Rear Derailleur | Shimano Deore M6100–SGS |
| Crankset | Shimano Deore MT512, 30t w/ MRP 1x SL ISCG-05 bashguard |
| Bottom Bracket | Shimano MT501 |
| Cassette | Shimano Deore M6100, 10–51t, 12-speed |
| Chain | Shimano Deore M6100, HYPERGLIDE+ |
Brakes
| Brakes | Brake Calipers: Shimano Deore M6120, 4-piston; Brake Levers: Shimano Deore M6100; Rotors: Shimano Deore RT64 (Center Lock, 203mm front and rear) |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit 1.5E ZS NO.57E |
|---|---|
| Handlebar | Race Face Chester |
| Stem | Salsa 35.0 Guide Trail, 40mm |
| Saddle | WTB Solano, Medium, Steel Rail, Fusion Form |
| Seatpost | TranzX YSI05 RAD+ w/ Shimano SL-MT500 I-Spec EV lever, SM: 150mm travel; MD–LG: 170mm travel; XL: 200mm travel |
Wheels & Tires
| Hubs | (F) Shimano TC500 15 x 110mm / (R) Shimano TC500 12 x 148mm |
|---|---|
| Rims | WTB KOM Trail i30 TCS, 32h |
| Spokes | Butted steel, black |
| Front Tire | Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included |
| Rear Tire | Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included |
| Wheel Size | 29"; 27.5" |
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 17 measurements
| Measurement | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat tube | 405 mm | 430 mm | 455 mm | 480 mm |
| Effective top tube | 589 mm | 611 mm | 633 mm | 655 mm |
| Head tube | 100 mm | 110 mm | 120 mm | 130 mm |
| Head-tube angle | 63.9- 63.6 | 63.9- 63.6 | 63.9- 63.6 | 63.9- 63.6 |
| Seat-tube angle | 77.4- 77.1 | 77.4- 77.1 | 77.4- 77.1 | 77.4- 77.1 |
| Chainstay / rear center | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1219 mm | 1243 mm | 1268 mm | 1292 mm |
| Bottom-bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Bottom-bracket height | 351 mm | 351 mm | 351 mm | 351 mm |
| Reach | 452 mm | 472 mm | 492 mm | 512 mm |
| Stack | 612 mm | 621 mm | 630 mm | 639 mm |
| Standover height | 746 mm | 746 mm | 747 mm | 747 mm |
| Fork offset / rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Fork length / axle-to-crown | 571 mm | 571 mm | 571 mm | 571 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm |
| Handlebar width | 780 mm | 780 mm | 780 mm | 780 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
How it works
Ratio = chainring teeth ÷ rear sprocket teeth. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Salsa Blackthorn 145 C Deore 12 · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon · Fork: RockShox Lyrik, 160mm
Suspension
Evaluate the suspension →Archived: Fork: RockShox Lyrik, 160mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore M6100, I-Spec EV · Rear derailleur: Shimano Deore M6100–SGS · Crankset: Shimano Deore MT512, 30t w/ MRP 1x SL ISCG-05 bashguard · Bottom bracket: Shimano MT501 · Cassette: Shimano Deore M6100, 10–51t, 12-speed · Chain: Shimano Deore M6100, HYPERGLIDE+
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Shimano Deore M6120, 4-piston; Brake Levers: Shimano Deore M6100; Rotors: Shimano Deore RT64 (Center Lock, 203mm front and rear)
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29"; 27.5" · Rims: WTB KOM Trail i30 TCS, 32h · Hubs: (F) Shimano TC500 15 x 110mm / (R) Shimano TC500 12 x 148mm · Front tire: Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included · Rear tire: Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included
Controls and contact points
Archived: Headset: FSA Orbit 1.5E ZS NO.57E · Handlebar: Race Face Chester · Stem: Salsa 35.0 Guide Trail, 40mm · Seatpost: TranzX YSI05 RAD+ w/ Shimano SL-MT500 I-Spec EV lever, SM: 150mm travel; MD–LG: 170mm travel; XL: 200mm travel · Saddle: WTB Solano, Medium, Steel Rail, Fusion Form
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery3 images
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
