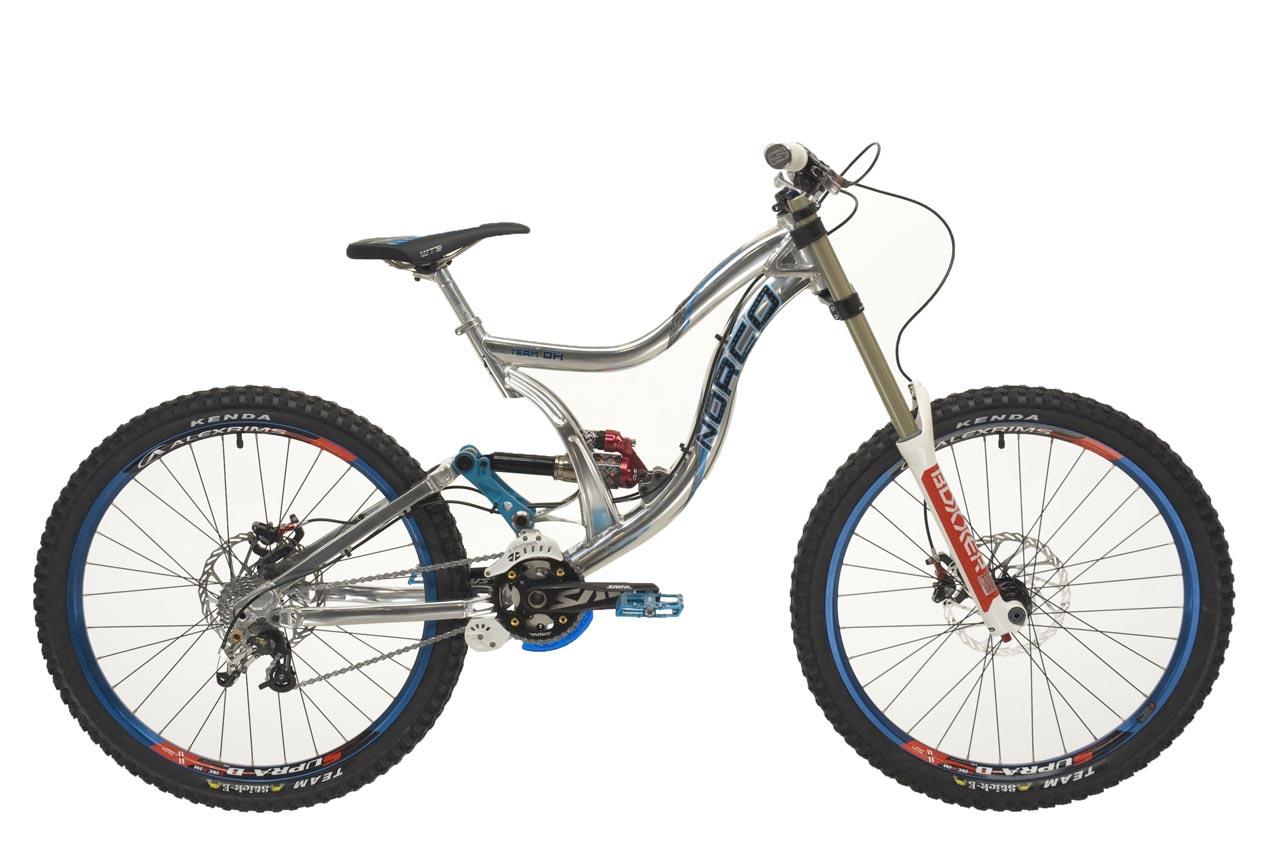

2009 Norco Team DH
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Small, medium, large
- Colors
- High polish silver
- Archive ID
- 15976
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Hydraformed Aluminum |
| Fork | RockShox Boxxer World Cup, 200mm travel |
| Fork Material | Dual |
| Rear Shock | Marzocchi World Cup, 199 - 227mm adjustable |
Drivetrain
| Component Group | SRAM X.0/mix |
|---|---|
| Shifters | Sram X.0 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM X.0 |
| Crankset | Shimano Saint w/E-13 LG1, 36 teeth |
| Bottom Bracket | Shimano Saint |
| BB Shell Width | 68mm |
| Cassette | SRAM DH PG-970 |
| Rear Cogs | 9-speed, 11 - 26 teeth |
| Chain | KMC Super Light CP, 1/2 x 3/32" |
| Pedals | CNC Alloy |
Brakes
| Brakes | Avid Elixer CR w/8" rotor brakes, Avid Elixer CR levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Sunline integrated reducer 1 1/2" to 1 1/8" |
|---|---|
| Handlebar | Sunline V-1 31.8mm |
| Handlebar Extensions | Not included |
| Stem | Sunline direct mount |
| Saddle | WTB Silverado |
| Seatpost | TruVativ Team, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: DT Swiss 440, 20mm thru axle, Rear: DT Swiss 440, 150 x 12mm |
|---|---|
| Rims | Alex Supra D, anodized blue, 32-hole |
| Spokes | DT Swiss Super Comp stainless steel, 14/17/15ga. (2.0/1.7/1.8mm) |
| Front Tire | 26 x 2.35" Kenda Nevegal DH Stick-E |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
