Moots VAMOOTS CRD Frameset
Original manufacturer specifications including geometry for 9 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- Not published by manufacturer
- Category
- Road
- Original MSRP
- $8,899.00
- Sizes
- 48, 50, 52, 54, 55, 56, 58, 60, 62
- Geometry
- 9 manufacturer sizes
- Record coverage
- 6 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001505
Frameset
| Frame Construction | At the pinnacle of our road line, the Vamoots CRD (Complete Race Design) is built from our double-butted RSL (Race Super Light) titanium tube set for a frame that’s light, responsive, and smooth in every detail |
|---|---|
| Frame Material | Titanium |
| Fork | Enve Integrated Road Fork |
Drivetrain
| Bottom Bracket | Chris King T47 30i |
|---|
Cockpit & Contact Points
| Headset | Chris King Aeroset 3 w/ Moots CRD integrated spacer |
|---|---|
| Seatpost | 27.2 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 48 | 50 | 52 | 54 | 55 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|---|---|
| Effective top tube | 495 mm | 510 mm | 530 mm | 545 mm | 530 mm | 565 mm | 575 mm | 590 mm | 605 mm |
| Head tube | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 160 mm | 180 mm | 200 mm |
| Head-tube angle | 71° | 71.5° | 72° | 72.5° | 72.75° | 73° | 73.25° | 73.5° | 73.75° |
| Seat-tube angle | 75° | 75° | 74.5° | 74° | 73.75° | 73.5° | 73° | 72.75° | 72.75° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 415 mm | 415 mm | 415 mm |
| Bottom-bracket drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Reach | 347.7 mm | 360.1 mm | 372.7 mm | 380.2 mm | 384.9 mm | 389.6 mm | 392.1 mm | 398.5 mm | 407.5 mm |
| Stack | 535.5 mm | 546.8 mm | 558.3 mm | 569.6 mm | 580.1 mm | 590.5 mm | 599 mm | 619 mm | 639.1 mm |
| Standover height | 723.9 mm | 744.22 mm | 762 mm | 779.78 mm | 789.94 mm | 800.1 mm | 810.26 mm | 830.58 mm | 850.9 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
Geometry source: Moots first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Parts & serviceability
Find replacement parts
Chris King T47 30i
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameCheck the welds for cracking and make sure the seatpost, bottom bracket and other threaded parts are not seized or galled in place.Inspect the frame and fork →
- Bottom bracket shellInspect the bottom-bracket shell for damaged threads, corrosion, ovalization, cracks or signs of an improvised repair. Confirm the archived shell standard and width before buying components.Inspect the bottom bracket and shell →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: Moots VAMOOTS CRD Frameset · Road · Published sizes: 48, 50, 52, 54, 55, 56, 58, 60, 62
Frame and fork
Inspect the frame and fork →Archived: Frame: At the pinnacle of our road line, the Vamoots CRD (Complete Race Design) is built from our double-butted RSL (Race Super Light) titanium tube set for a frame that’s light, responsive, and smooth in every detail · Fork: Enve Integrated Road Fork
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

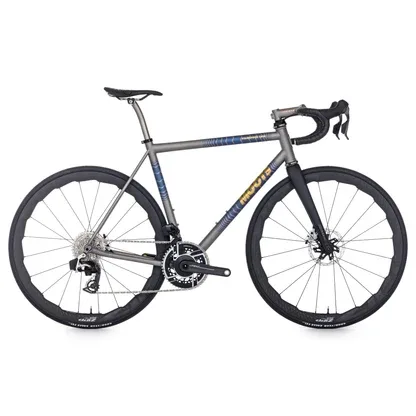

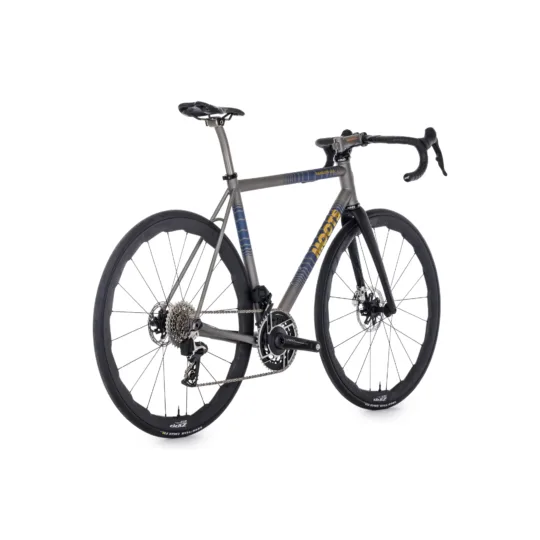

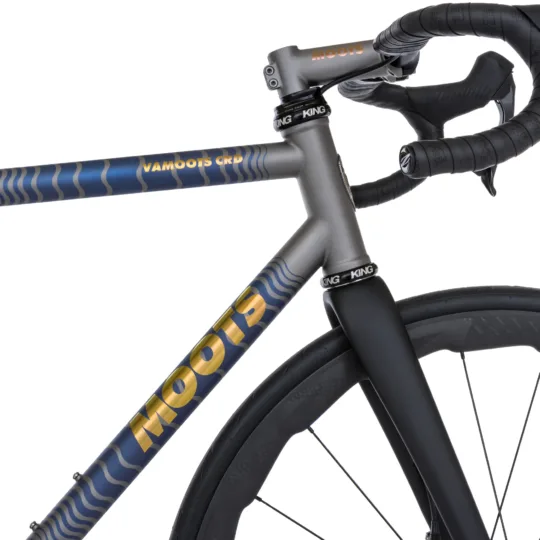

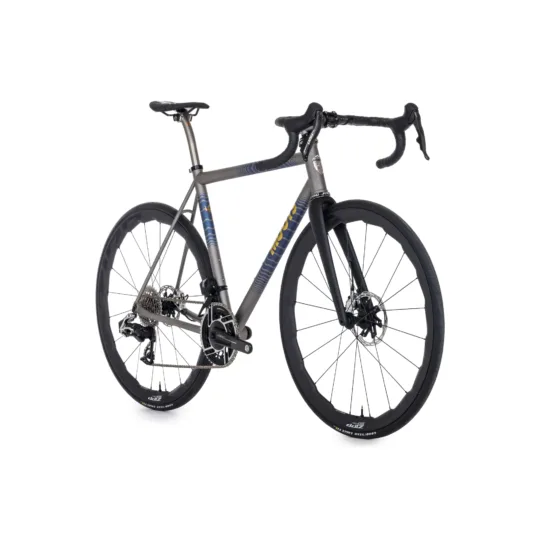

Gallery
