Velopedia Bicycle Archive

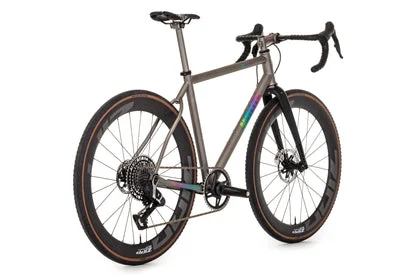

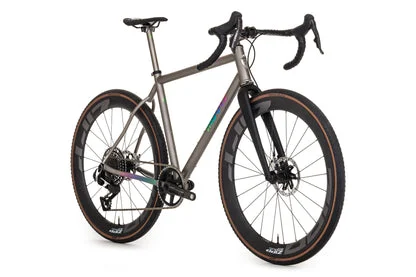

Moots ROUTT RSL Frameset
Original manufacturer specifications including geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- Not published by manufacturer
- Category
- Gravel & Cyclocross
- Original MSRP
- $7,249.00
- Sizes
- 50, 52, 54, 55, 56, 58, 60
- Geometry
- 7 manufacturer sizes
- Record coverage
- 6 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900001495
Frameset
| Frame Construction | Moots/Reynolds internally butted 3al/2.5v titanium tubing, 3d printed UDH dropouts, BSA BB |
|---|---|
| Frame Material | Titanium |
| Fork | Moots Gravel Fork |
Drivetrain
| Bottom Bracket | Chris King TF30 |
|---|
Cockpit & Contact Points
| Headset | Chris King Inset 7 |
|---|---|
| Seatpost | 27.2 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 50 | 52 | 54 | 55 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|---|
| Seat tube | 460 mm | 480 mm | 510 mm | 520 mm | 530 mm | 550 mm | 570 mm |
| Effective top tube | 520 mm | 530 mm | 545 mm | 555 mm | 570 mm | 585 mm | 605 mm |
| Head tube | 120 mm | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm | 210 mm |
| Head-tube angle | 70.25° | 70.25° | 70.5° | 70.5° | 71° | 71° | 71.5° |
| Seat-tube angle | 75° | 74.25° | 74° | 73.5° | 73.25° | 73° | 72.75° |
| Chainstay / rear center | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Bottom-bracket drop | 71 mm | 71 mm | 69 mm | 69 mm | 69 mm | 69 mm | 68 mm |
| Reach | 366 mm | 366 mm | 376 mm | 379 mm | 385 mm | 392 mm | 403 mm |
| Stack | 560 mm | 579 mm | 587 mm | 596 mm | 603 mm | 627 mm | 647 mm |
| Standover height | 762 mm | 787.4 mm | 802.64 mm | 810.26 mm | 820.42 mm | 838.2 mm | 858.52 mm |
Geometry source: Moots first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Parts & serviceability
Find replacement parts
Chris King TF30
Named archived component — verify dimensions
Chris King Inset 7
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameCheck the welds for cracking and make sure the seatpost, bottom bracket and other threaded parts are not seized or galled in place.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: Moots ROUTT RSL Frameset · Cyclocross/Gravel · Published sizes: 50, 52, 54, 55, 56, 58, 60
Frame and fork
Inspect the frame and fork →Archived: Frame: Moots/Reynolds internally butted 3al/2.5v titanium tubing, 3d printed UDH dropouts, BSA BB · Fork: Moots Gravel Fork
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
