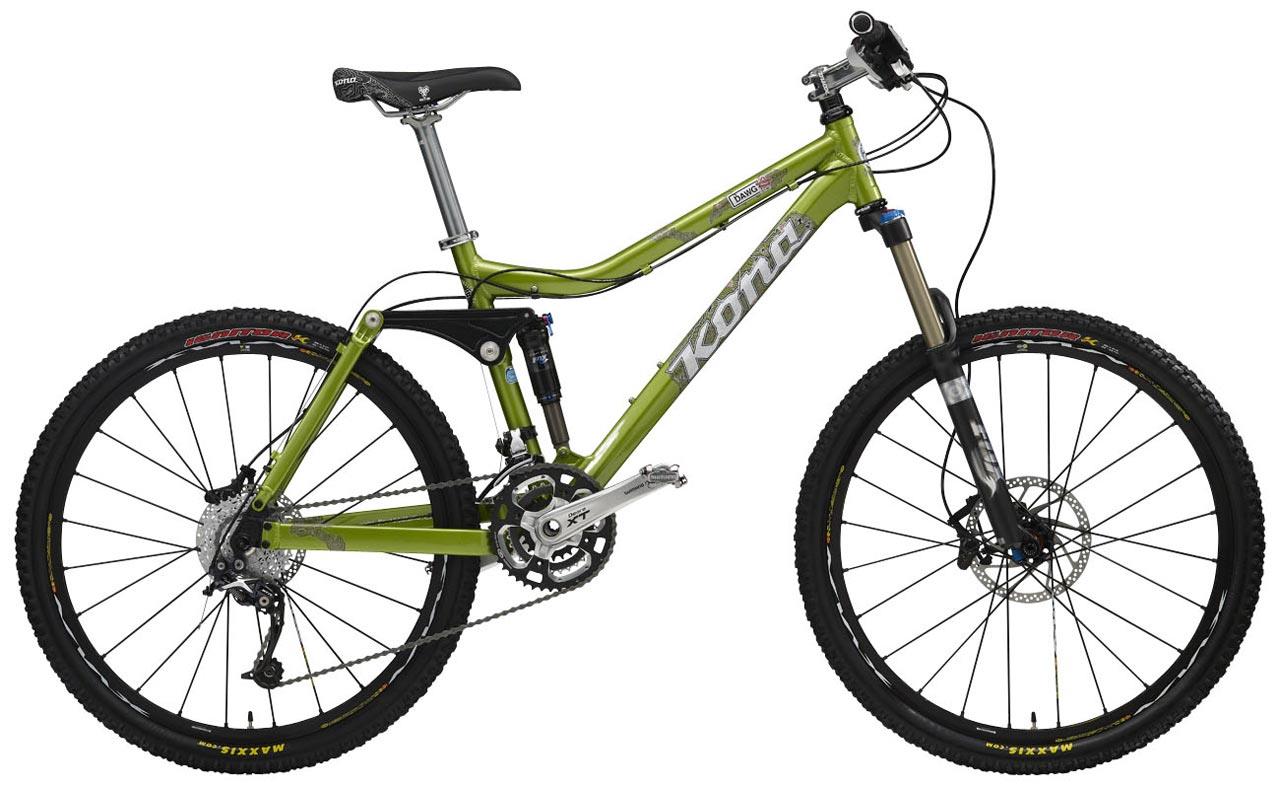

2009 Kona Dawg Supreme

Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.

Original MSRP
$4,599.00
Sizes
15", 17", 18", 19", 20", 22"
Colors
Light Green Metallic
Archive ID
16928

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame MaterialKona Race Light Scandium Butted
ForkFox 32 Float RLC, 140mm travel
Fork MaterialSingle
Rear ShockFox RP23, 6" travel

Drivetrain

Component GroupShimano XT
ShiftersShimano XT Rapid Fire
Front DerailleurShimano XT
Rear DerailleurShimano XTR Shadow
CranksetShimano XT, 22/32/44 teeth
Bottom BracketShimano XT Hollowtech II
BB Shell Width73mm
CassetteShimano XT
Rear Cogs9-speed, 11 - 34 teeth
ChainShimano LX
PedalsShimano PD-M540

Brakes

BrakesShimano XT Disc brakes, Shimano XT hydraulic levers

Cockpit & Contact Points

HeadsetFSA Orbit DL
HandlebarKona XC/BC Deluxe riser
Handlebar ExtensionsNot included
StemKona XC/BC Deluxe
SaddleWTB Rocket V SLT
SeatpostKona XC/BC Deluxe

Wheels & Tires

HubsFront: Mavic CrossMax ST disc w/15mm axle, Rear: Mavic CrossMax ST disc
RimsMavic CrossMax ST disc
Front Tire26 x 2.35" Maxxis Ignitor
Wheel Size26" wheels

More 2009 Kona Bicycles

View all

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
