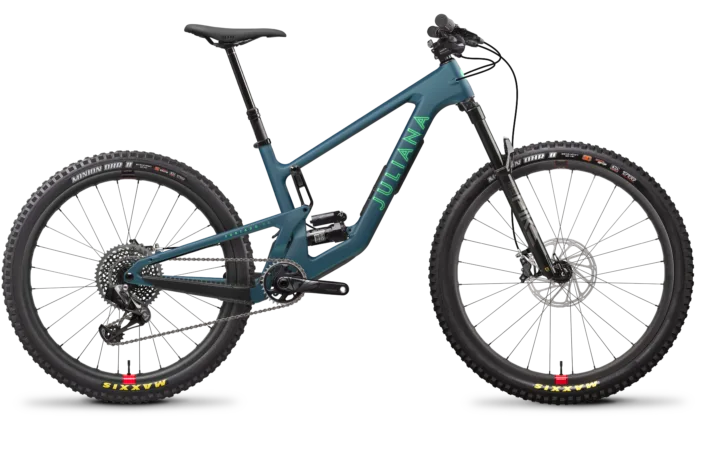

2023 Juliana Furtado X01 AXS RSV
Mountain bicycle from the Velopedia specification archive.
- Original MSRP
- $10,299.00
- Sizes
- XS, S, M
- Colors
- Matte Aquamarine
- Weight
- 29.59 lbs / 12.42 kg
- Geometry
- 3 manufacturer sizes · Ride analysis
- Archive ID
- 900000294
Recently checked market
0 close matches
Observed used market
No listingsNo close used matches in the latest snapshot.
New asking
No listingsNo close matches in this condition.
View market details Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Suspension at both ends means fork and shock setup should be considered together; mismatched sag or rebound can leave the front and rear reacting very differently. The mixed-wheel layout uses different front and rear diameters, so tires, tubes, rims and spare wheels are not interchangeable end to end. Electronic shifting removes the usual shift cable but adds a separate battery and controls, while the 500% cassette range describes how much gearing is available.
Suspension setup
Front + rear
Fork and shock pressure, sag and rebound should be balanced and recorded independently.
Wheel system
Mixed 29 / 27.5
Front and rear tires, tubes, rims and spare wheels use different diameters.
Drivetrain
Electronic · 500% range
Shift-system battery state joins derailleur setup and sprocket compatibility as a troubleshooting variable.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2023 Juliana Furtado X01 AXS RSV · Mountain · Published sizes: XS, S, M
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon CC Frame · Fork: RockShox Pike Ultimate, 140mm
Suspension
Evaluate the suspension →Archived: Fork: RockShox Pike Ultimate, 140mm · Rear shock: RockShox Super Deluxe Ultimate, 210x50
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM GX Eagle AXS Controller 2 Button · Rear derailleur: SRAM X01 Eagle AXS, 12spd · Crankset: SRAM X1 Eagle Carbon 148 DUB, 32t · Bottom bracket: SRAM DUB 68/73mm Threaded BB · Cassette: SRAM XG1275 Eagle, 12spd, 10-50t · Chain: SRAM GX Eagle, 12spd
Brakes
Inspect the brakes →Archived: Brakes: SRAM G2 RSC
Wheels and tires
Check wheels and tires →Archived: Wheel size: MX · Rims: (F) Reserve 30|SL 29", 28h / (R) Reserve 30|HD 27.5", 28h · Hubs: (F) i9 1/1, 15x110, Torque Cap, 28h / (R) i9 1/1, 12x148, XD, 28h · Front tire: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR · Rear tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Controls and contact points
Archived: Headset: Cane Creek 40 IS Integrated Headset · Handlebar: Santa Cruz 20 Carbon Bar, 760mm · Stem: Burgtec Enduro MK3, 42mm · Seatpost: RockShox Reverb Stealth, 31.6 · Saddle: Juliana Carbon Saddle
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon CC Frame |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Pike Ultimate, 140mm |
| Rear Shock | RockShox Super Deluxe Ultimate, 210x50 |
Drivetrain
| Shifters | SRAM GX Eagle AXS Controller 2 Button |
|---|---|
| Rear Derailleur | SRAM X01 Eagle AXS, 12spd |
| Crankset | SRAM X1 Eagle Carbon 148 DUB, 32t |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| BB Shell Width | 73mm Threaded |
| Cassette | SRAM XG1275 Eagle, 12spd, 10-50t |
| Chain | SRAM GX Eagle, 12spd |
Brakes
| Brakes | SRAM G2 RSC |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 40 IS Integrated Headset |
|---|---|
| Handlebar | Santa Cruz 20 Carbon Bar, 760mm |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | Juliana Carbon Saddle |
| Seatpost | RockShox Reverb Stealth, 31.6 |
Wheels & Tires
| Hubs | (F) i9 1/1, 15x110, Torque Cap, 28h / (R) i9 1/1, 12x148, XD, 28h |
|---|---|
| Rims | (F) Reserve 30|SL 29", 28h / (R) Reserve 30|HD 27.5", 28h |
| Front Tire | Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR |
| Wheel Size | MX |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M |
|---|---|---|---|
| Seat tube | 370 mm | 380 mm | 405 mm |
| Top tube | 544/544 | 570/571 | 598/599 |
| Head tube | 90 mm | 100 mm | 115 mm |
| Head-tube angle | 65.2/64.9 | 65.2/64.9 | 65.2/64.9 |
| Seat-tube angle | 77.4/77.1 | 77.4/77.1 | 77.4/77.1 |
| Chainstay / rear center | 428/429 | 430/431 | 433/434 |
| Wheelbase | 1147/1147 | 1178/1178 | 1212/1213 |
| Bottom-bracket drop | 35/38 | 35/38 | 35/38 |
| Bottom-bracket height | 338/335 | 338/335 | 338/334 |
| Reach | 410/406 | 434/431 | 459/456 |
| Stack | 599/601 | 608/610 | 622/624 |
| Standover height | 694/688 | 703/698 | 706/700 |
| Front center | 719/718 | 748/748 | 779/779 |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
The archived table contains paired manufacturer values. Velopedia separates the numerically higher and lower chassis states for interpretation without treating them as separate bicycles.
XS geometry
Configuration
Riding position
The 599 mm stack is tall relative to the 410 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 65.2° head angle combined with a 1147 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 428 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Lower geometry, this configuration raises the bottom bracket by 3 mm, reduces bottom-bracket drop by 3 mm, steepens the head angle by 0.3°, and extends reach by 4 mm.
Archive context
The seat angle of 77.4° sits toward the steeper end. The chainstay of 428 mm sits somewhat shorter than typical. Its bottom-bracket drop of 35 mm sits close to the middle of the group.
Riding position
The 601 mm stack is tall relative to the 406 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.1° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.9° head angle combined with a 1147 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 429 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Higher geometry, this configuration lowers the bottom bracket by 3 mm, increases bottom-bracket drop by 3 mm, slackens the head angle by 0.3°, and shortens reach by 4 mm.
Archive context
Its stack of 601 mm sits somewhat taller than typical. The head angle of 64.9° sits somewhat slacker than typical. The seat angle of 77.1° sits somewhat steeper than typical.
S geometry
Configuration
Riding position
The 608 mm stack is tall relative to the 434 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 65.2° head angle combined with a 1178 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Lower geometry, this configuration raises the bottom bracket by 3 mm, reduces bottom-bracket drop by 3 mm, steepens the head angle by 0.3°, and extends reach by 3 mm.
Archive context
The seat angle of 77.4° sits toward the steeper end. The chainstay of 430 mm sits somewhat shorter than typical. Its reach of 434 mm sits somewhat longer than typical.
Riding position
The 610 mm stack is tall relative to the 431 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.1° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.9° head angle combined with a 1178 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Higher geometry, this configuration lowers the bottom bracket by 3 mm, increases bottom-bracket drop by 3 mm, slackens the head angle by 0.3°, and shortens reach by 3 mm.
Archive context
The seat angle of 77.1° sits somewhat steeper than typical. The chainstay of 431 mm sits somewhat shorter than typical. Its reach of 431 mm sits somewhat longer than typical.
M geometry
Configuration
Riding position
A 459 mm reach paired with 622 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 65.2° head angle combined with a 1212 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Lower geometry, this configuration raises the bottom bracket by 4 mm, reduces bottom-bracket drop by 3 mm, steepens the head angle by 0.3°, and extends reach by 3 mm.
Archive context
The seat angle of 77.4° sits toward the steeper end. Its reach of 459 mm sits somewhat longer than typical. The chainstay of 433 mm sits somewhat shorter than typical.
Riding position
A 456 mm reach paired with 624 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.1° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.9° head angle combined with a 1213 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Higher geometry, this configuration lowers the bottom bracket by 4 mm, increases bottom-bracket drop by 3 mm, slackens the head angle by 0.3°, and shortens reach by 3 mm.
Archive context
The seat angle of 77.1° sits somewhat steeper than typical. Its reach of 456 mm sits somewhat longer than typical. Its stack of 624 mm sits somewhat taller than typical.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
