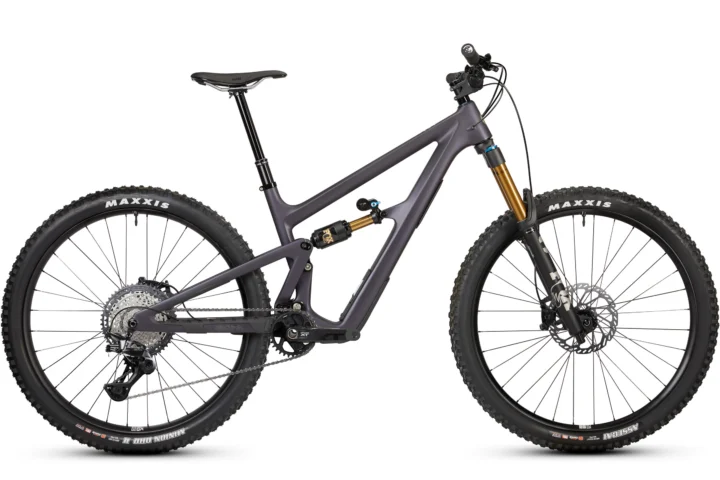

2026 Ibis Ripmo XT
Mountain bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
- Original MSRP
- $6,799.00
- Sizes
- Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
- Colors
- Olive Swamp Monster, HeckleberryPurple
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900000658
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The fork and rear shock need to be set up as a pair. If their sag or rebound settings are far apart, the front and rear of the bike can react very differently. Wheel diameter changes with frame size rather than between the front and rear, so the size-specific specification is the one to use for tires, tubes and replacement wheels. The 510% cassette range describes the available gearing more clearly than the component-group name alone.
Suspension setup
Front + rear
Fork and shock pressure, sag and rebound should be balanced and recorded independently.
Wheel system
27.5 / 29 by frame size
Wheel diameter changes with frame size; the record does not indicate a front/rear mismatch.
Gearing
510% cassette range
Calculated from the published 10–51-tooth sprocket span.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Ibis Ripmo XT · Mountain · Published sizes: Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon front and rear triangle · Fork: Fox Float 36, Factory Series, Grip X2, 160mm, 29”, 110mm x 15mm
Suspension
Evaluate the suspension →Archived: Fork: Fox Float 36, Factory Series, Grip X2, 160mm, 29”, 110mm x 15mm · Rear shock: Fox Float X2 Factory Series with EVOL, 230mm x 60mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano XT Rapidfire · Rear derailleur: Shimano XT M8200 SGS · Crankset: Shimano XT M8200 30T Alloy RingS–M: 165mm, XM–XL: 170mm · Bottom bracket: Shimano XT · Cassette: Shimano XT 10-51T · Chain: Shimano XT
Brakes
Inspect the brakes →Archived: Brakes: Shimano XT M8220 4-Piston; Rotors: Shimano XT 6B750 200F/200R
Wheels and tires
Check wheels and tires →Archived: Wheel size: Size XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip) · Wheels: Blackbird Send Alloy, 32H, Blackbird Hubs · Front tire: Maxxis Assegai 29x2.5 EXO+ · Rear tire: Maxxis DHR2, EXO+S–M: 27.5" x 2.5", XM–XL: 29" x 2.5"
Controls and contact points
Archived: Headset: Cane Creek 50: ZS44/ZS56 · Handlebar: Blackbird 35 Aluminum Riser Bar 800mm · Stem: BLKBRD StemS–M: 35mm, XM–XL: 50mm · Seatpost: KS Vantage Dropper, 34.9mmS: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm · Saddle: WTB Silverado Fusion CrMo 142
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon front and rear triangle |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Fox Float 36, Factory Series, Grip X2, 160mm, 29”, 110mm x 15mm |
| Rear Shock | Fox Float X2 Factory Series with EVOL, 230mm x 60mm |
Drivetrain
| Shifters | Shimano XT Rapidfire |
|---|---|
| Rear Derailleur | Shimano XT M8200 SGS |
| Crankset | Shimano XT M8200 30T Alloy RingS–M: 165mm, XM–XL: 170mm |
| Bottom Bracket | Shimano XT |
| BB Shell Width | 73 mm |
| Cassette | Shimano XT 10-51T |
| Chain | Shimano XT |
Brakes
| Brakes | Shimano XT M8220 4-Piston; Rotors: Shimano XT 6B750 200F/200R |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 50: ZS44/ZS56 |
|---|---|
| Handlebar | Blackbird 35 Aluminum Riser Bar 800mm |
| Stem | BLKBRD StemS–M: 35mm, XM–XL: 50mm |
| Saddle | WTB Silverado Fusion CrMo 142 |
| Seatpost | KS Vantage Dropper, 34.9mmS: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm |
Wheels & Tires
| Wheels | Blackbird Send Alloy, 32H, Blackbird Hubs |
|---|---|
| Front Tire | Maxxis Assegai 29x2.5 EXO+ |
| Rear Tire | Maxxis DHR2, EXO+S–M: 27.5" x 2.5", XM–XL: 29" x 2.5" |
| Wheel Size | Size XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip) |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| Seat tube | 395 mm | 400 mm | 415 mm | 457 mm | 477 mm |
| Top tube | 578 mm | 605 mm | 630 mm | 655 mm | 685 mm |
| Head tube | 85 mm | 95 mm | 110 mm | 125 mm | 140 mm |
| Head-tube angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat-tube angle | 77° | 76.5° | 76.5° | 77° | 77.5° |
| Chainstay / rear center | 435 mm | 435 mm | 436 mm | 438 mm | 440 mm |
| Wheelbase | 1195 mm | 1219 mm | 1249 mm | 1286 mm | 1329 mm |
| Bottom-bracket drop | 36 mm | 33 mm | 30 mm | 27 mm | 24 mm |
| Bottom-bracket height | 338 mm | 341 mm | 344 mm | 349 mm | 350 mm |
| Reach | 436 mm | 456 mm | 478 mm | 506 mm | 540 mm |
| Stack | 616 mm | 622 mm | 633 mm | 643 mm | 654 mm |
| Standover height | 693 mm | 734 mm | 757 mm | 772 mm | 784 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm | 170 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
SM geometry
Riding position
The 616 mm stack is tall relative to the 436 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.5° head angle combined with a 1195 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
The head angle of 64.5° sits somewhat slacker than typical. Its reach of 436 mm sits somewhat longer than typical. The seat angle of 77° sits somewhat steeper than typical.
MD geometry
Riding position
A 456 mm reach paired with 622 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 76.5° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.5° head angle combined with a 1219 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
The head angle of 64.5° sits somewhat slacker than typical. Its wheelbase of 1219 mm sits somewhat longer than typical. Its reach of 456 mm sits close to the middle of the group.
XM geometry
Riding position
A 478 mm reach paired with 633 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 76.5° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.5° head angle combined with a 1249 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 478 mm sits toward the longer end. Its wheelbase of 1249 mm sits toward the longer end. Its stack of 633 mm sits somewhat taller than typical.
LG geometry
Riding position
With 506 mm of reach and 643 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.5° head angle combined with a 1286 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 506 mm sits toward the longer end. Its wheelbase of 1286 mm sits toward the longer end. Its stack of 643 mm sits toward the taller end.
XL geometry
Riding position
With 540 mm of reach and 654 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77.5° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.5° head angle combined with a 1329 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 540 mm sits toward the longer end. Its wheelbase of 1329 mm sits toward the longer end. Its bottom-bracket drop of 24 mm sits toward the shallower-drop end.
Across the size range
From SM to XL, reach grows by 104 mm and stack by 38 mm, showing how the frame becomes both longer and taller through the published size range. Chainstay length grows from 435 to 440 mm across the range. That size-specific rear-center strategy helps the larger frames grow at both ends instead of adding all of their length ahead of the bottom bracket.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
