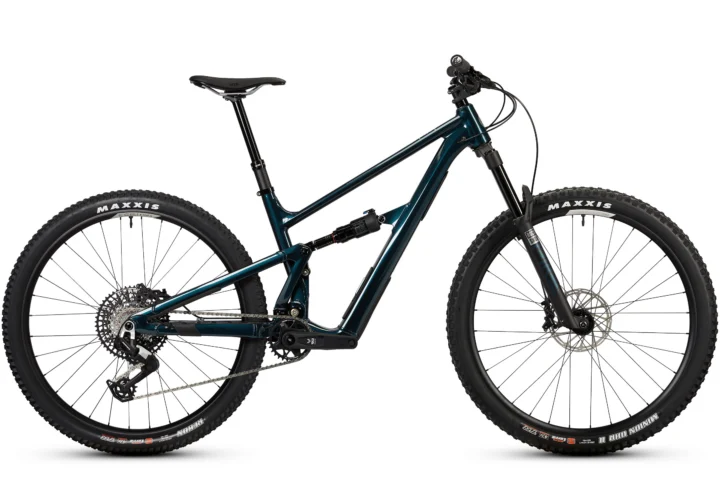

2026 Ibis Ripley AF 90
Mountain bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
- Original MSRP
- $3,999.00
- Sizes
- Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
- Colors
- Burnt Orange, Blue Velvet
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900000664
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The fork and rear shock need to be set up as a pair. If their sag or rebound settings are far apart, the front and rear of the bike can react very differently. The 520% cassette range describes the available gearing more clearly than the component-group name alone. On the alloy frame, dents and hairline cracks around welds matter more than cosmetic scratches. Pay closest attention near the head tube, bottom bracket shell, dropouts and other heavily loaded junctions.
Suspension setup
Front + rear
Fork and shock pressure, sag and rebound should be balanced and recorded independently.
Gearing
520% cassette range
Calculated from the published 10–52-tooth sprocket span.
Frame material
Aluminum / alloy
Dents and cracking around welds at the head tube, bottom bracket shell and dropouts deserve attention.
Wheel standard
29 in · 622 mm
Rim width and frame or fork clearance remain important beyond nominal diameter.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Ibis Ripley AF 90 · Mountain · Published sizes: Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
Frame and fork
Inspect the frame and fork →Archived: Frame: Aluminum · Fork: RockShox Pike, 15QRx110, 140mm
Suspension
Evaluate the suspension →Archived: Fork: RockShox Pike, 15QRx110, 140mm · Rear shock: RockShox Deluxe Select 210mm x 52.5mm
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Eagle 90 Transmission · Rear derailleur: SRAM Eagle 90 Transmission · Crankset: SRAM Eagle 90 Transmission DUB 30t Alloy RingS–M: 165mm, XM–XL: 170mm · Bottom bracket: SRAM DUB BSA · Cassette: SRAM XS 1275 Transmission, T-Type, 10-52T · Chain: SRAM GX Eagle Transmission, T-Type
Brakes
Inspect the brakes →Archived: Brakes: SRAM G2 4P; Rotors: SRAM Centerline 6-Bolt 180F/180R
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29” (MX optional via Flip Chip) · Wheels: Ibis 933 Aluminum Rims, Blackbird Hubs · Front tire: Maxxis DHR2, 29" x 2.4", Exo, TR - OR - Maxxis Forekaster, 29" x 2.4", Exo, TR · Rear tire: Maxxis Rekon, 29" x 2.4", Exo, TR
Controls and contact points
Archived: Headset: Cane Creek 50: ZS44/ZS56 · Handlebar: Ibis Alloy MTB Bars 800 wide SP Ano Black w/ Ibis Logo · Stem: Ibis 31.8mmS–M: 40mm, L–XL: 50mm · Seatpost: KS Vantage Dropper, 34.9mmS: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm · Saddle: WTB Silverado Fusion CrMo 142
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Pike, 15QRx110, 140mm |
| Rear Shock | RockShox Deluxe Select 210mm x 52.5mm |
Drivetrain
| Shifters | SRAM Eagle 90 Transmission |
|---|---|
| Rear Derailleur | SRAM Eagle 90 Transmission |
| Crankset | SRAM Eagle 90 Transmission DUB 30t Alloy RingS–M: 165mm, XM–XL: 170mm |
| Bottom Bracket | SRAM DUB BSA |
| BB Shell Width | 73 mm |
| Cassette | SRAM XS 1275 Transmission, T-Type, 10-52T |
| Chain | SRAM GX Eagle Transmission, T-Type |
Brakes
| Brakes | SRAM G2 4P; Rotors: SRAM Centerline 6-Bolt 180F/180R |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 50: ZS44/ZS56 |
|---|---|
| Handlebar | Ibis Alloy MTB Bars 800 wide SP Ano Black w/ Ibis Logo |
| Stem | Ibis 31.8mmS–M: 40mm, L–XL: 50mm |
| Saddle | WTB Silverado Fusion CrMo 142 |
| Seatpost | KS Vantage Dropper, 34.9mmS: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm |
Wheels & Tires
| Wheels | Ibis 933 Aluminum Rims, Blackbird Hubs |
|---|---|
| Front Tire | Maxxis DHR2, 29" x 2.4", Exo, TR - OR - Maxxis Forekaster, 29" x 2.4", Exo, TR |
| Rear Tire | Maxxis Rekon, 29" x 2.4", Exo, TR |
| Wheel Size | 29” (MX optional via Flip Chip) |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| Seat tube | 395 mm | 400 mm | 415 mm | 457 mm | 477 mm |
| Top tube | 577 mm | 604 mm | 629 mm | 654 mm | 684 mm |
| Head tube | 85 mm | 95 mm | 110 mm | 125 mm | 140 mm |
| Head-tube angle | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| Seat-tube angle | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
| Chainstay / rear center | 436 mm | 436 mm | 437 mm | 440 mm | 442 mm |
| Wheelbase | 1187 mm | 1211 mm | 1241 mm | 1279 mm | 1321 mm |
| Bottom-bracket drop | 48 mm | 45 mm | 42 mm | 39 mm | 36 mm |
| Bottom-bracket height | 326 mm | 329 mm | 332 mm | 335 mm | 338 mm |
| Reach | 440 mm | 460 mm | 483 mm | 511 mm | 545 mm |
| Stack | 613 mm | 619 mm | 629 mm | 640 mm | 650 mm |
| Standover height | 680 mm | 721 mm | 744 mm | 759 mm | 772 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm | 170 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
SM geometry
Riding position
The 613 mm stack is tall relative to the 440 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.9° head angle combined with a 1187 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its bottom-bracket drop of 48 mm sits toward the deeper-drop end. The seat angle of 77.4° sits somewhat steeper than typical. Its reach of 440 mm sits somewhat longer than typical.
MD geometry
Riding position
A 460 mm reach paired with 619 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 76.9° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.9° head angle combined with a 1211 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its bottom-bracket drop of 45 mm sits somewhat deeper than typical. Its reach of 460 mm sits somewhat longer than typical. The seat angle of 76.9° sits somewhat steeper than typical.
XM geometry
Riding position
A 483 mm reach paired with 629 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 76.9° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.9° head angle combined with a 1241 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 483 mm sits toward the longer end. Its wheelbase of 1241 mm sits somewhat longer than typical. Its bottom-bracket drop of 42 mm sits somewhat deeper than typical.
LG geometry
Riding position
With 511 mm of reach and 640 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.9° head angle combined with a 1279 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 511 mm sits toward the longer end. The seat angle of 77.4° sits toward the steeper end. Its wheelbase of 1279 mm sits toward the longer end.
XL geometry
Riding position
With 545 mm of reach and 650 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77.9° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64.9° head angle combined with a 1321 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 545 mm sits toward the longer end. The seat angle of 77.9° sits toward the steeper end. Its wheelbase of 1321 mm sits toward the longer end.
Across the size range
From SM to XL, reach grows by 105 mm and stack by 37 mm, showing how the frame becomes both longer and taller through the published size range. Chainstay length grows from 436 to 442 mm across the range. That size-specific rear-center strategy helps the larger frames grow at both ends instead of adding all of their length ahead of the bottom bracket.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
