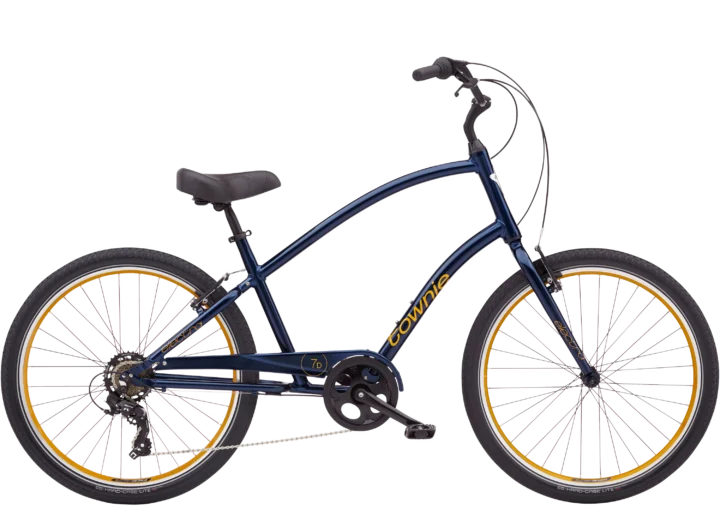

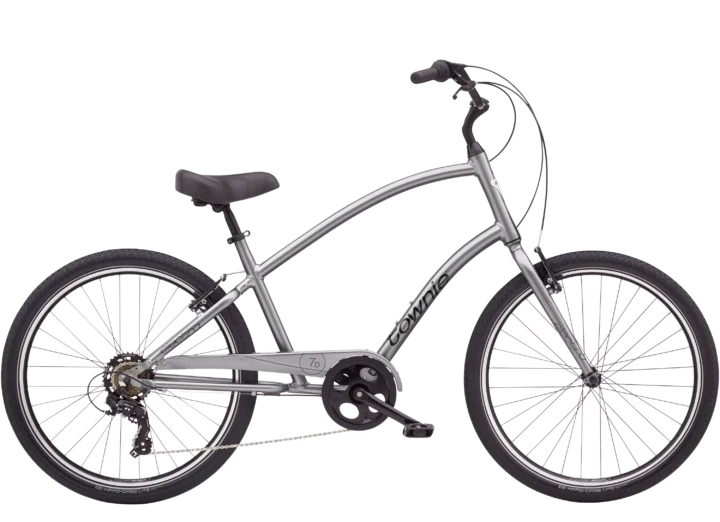

2023 Electra Townie 7D Step-Over

Archived: 2023 Electra Townie 7D Step-Over · Comfort/commuter · Published sizes: 26" wheel

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

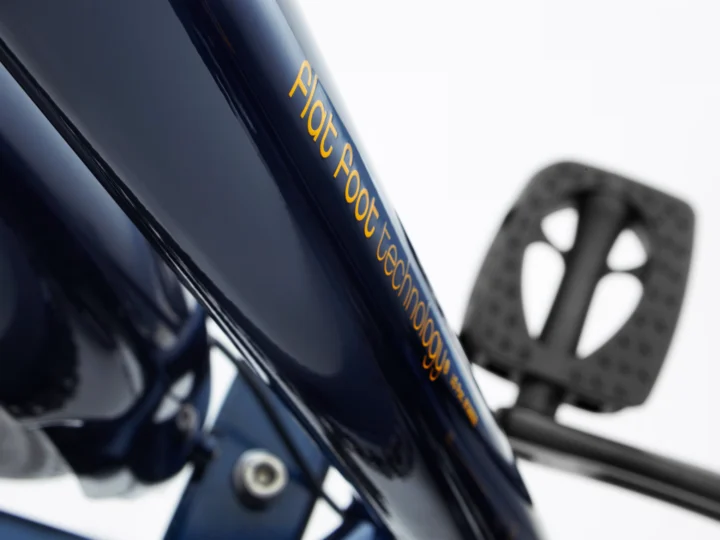

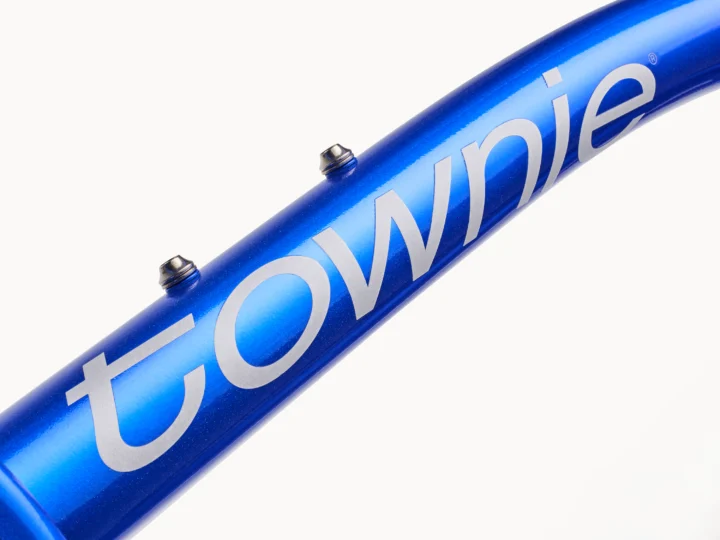

Archived: Frame: 6061-T6 Aluminum with Flat Foot Technology® · Fork: Rigid steel · Steel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

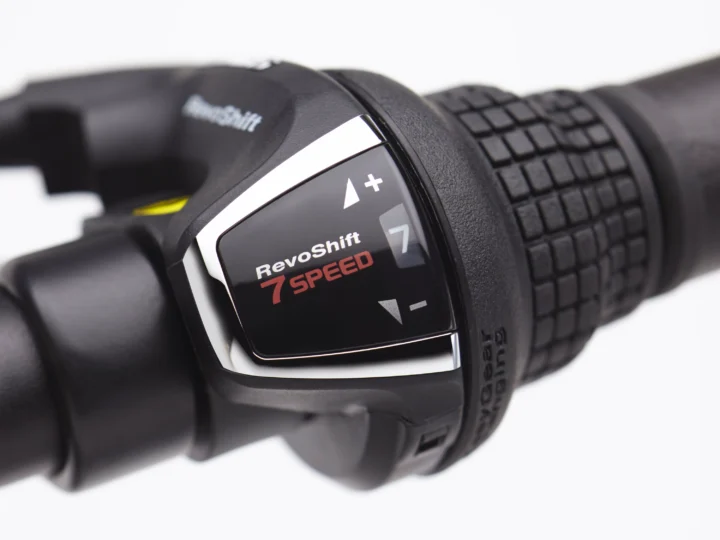

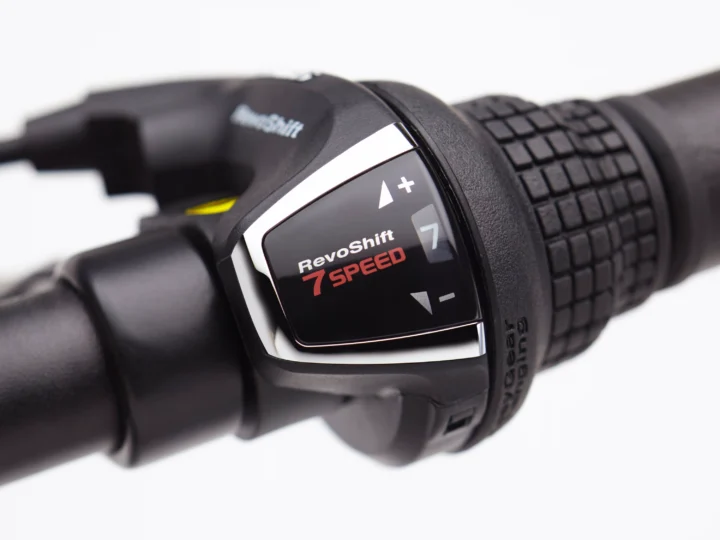

Archived: Group: Shimano Tourney, 7-speed · Shifters: Shimano Tourney Revo 7-speed twist with optical gear display · Rear derailleur: Shimano Tourney TY300 · Crankset: Forged alloy 170mm w/steel 44t chainring w/double chainguards · Bottom bracket: Square taper, loose ball · Cassette: 14-34, 7 speed freewheel · Chain: KMC Z7, 7 speed

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Alloy linear-pull

• Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 26" · Front tire: Bontrager E6 hard-case lite 26x2.00'' w/reflective stripe · Rear tire: Bontrager E6 hard-case lite 26x2.00'' w/reflective stripe

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

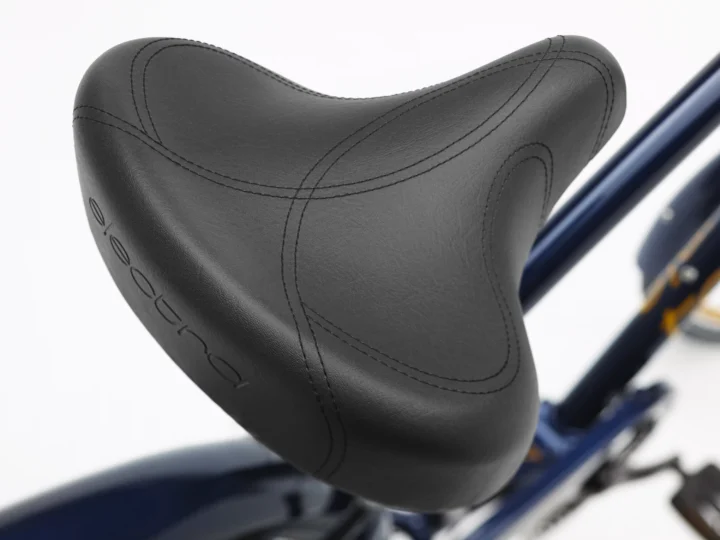

Archived: Headset: 1 1/8'' steel threaded/semi-integrated · Handlebar: Alloy custom bend 25.9'' width/4'' rise · Stem: Forged alloy 25.4mm quill, 80mm extension · Seatpost: Alloy 27.2x400mm · Saddle: Ergonomic w/shock-absorbing elastomers · Pedals: Resin platform, non-slip tread

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
