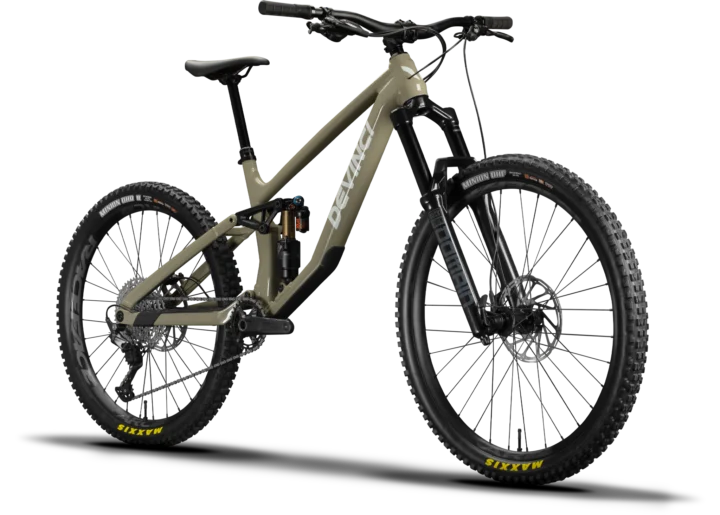

2026 Devinci Spartan Deore 12s
Original manufacturer specifications including geometry for 16 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $3,899.00
- Sizes
- S · MX SHORT, M · MX SHORT, L · MX SHORT, XL · MX SHORT, S · 29 LONG, M · 29 LONG, L · 29 LONG, XL · 29 LONG, S · 29 SHORT, M · 29 SHORT, L · 29 SHORT, XL · 29 SHORT, S · MX LONG, M · MX LONG, L · MX LONG, XL · MX LONG
- Colors
- Greige, Gloss
- Geometry
- 16 manufacturer sizes · Geometry context
- Record coverage
- 20 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001875
Frameset
| Frame Construction | Aluminum Optimum G04 165mm |
|---|---|
| Frame Material | Aluminum |
| Fork | Rockshox Domain Gold R DebonAir 170 | 1T | 44 Offset |
| Rear Shock | Fox Float X2 Performance Elite Trunnion | 0.3Vspacer|205x65 |
Drivetrain
| Rear Derailleur | Shimano Deore M6100 | 12s |
|---|---|
| Crankset | Shimano MT5121 | 32T |
| Bottom Bracket | Shimano BB MT501 | BSA | 68/73mm |
| Cassette | Shimano Deore M6100 | 12s | 10-51T | Microspline |
| Chain | KMC X12 | 12s |
Brakes
| Brakes | SRAM DB8 |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit | 1.5 | Zero Stack |
|---|---|
| Handlebar | V2 Pro | B:35mm | R:30mm | W:800mm |
| Stem | V2 Pro | B:35mm | L:40mm | 0° |
| Saddle | Devinci |
| Seatpost | SDG Tellis 31.6mm |
Wheels & Tires
| Hubs | Front: Formula DC-611 | Sealed | 6bolts | TA 15x110mm; Rear: Formula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline |
|---|---|
| Rims | Front: RaceFace AR30 29 | 30mm inner | TR; Rear: RaceFace AR35 Offset 27.5 | 35mm inner | TR |
| Spokes | Sapim Stainless 14G w/Nylok |
| Front Tire | Maxxis Minion DHF | 29x2.5 | 3C | Exo+ | TR | MaxxTerra |
| Rear Tire | Maxxis Minion DHR II | 27.5x2.5 | 3C | DD | TR | MaxxTerra |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S · MX SHORT | M · MX SHORT | L · MX SHORT | XL · MX SHORT | S · 29 LONG | M · 29 LONG | L · 29 LONG | XL · 29 LONG | S · 29 SHORT | M · 29 SHORT | L · 29 SHORT | XL · 29 SHORT | S · MX LONG | M · MX LONG | L · MX LONG | XL · MX LONG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seat tube | 390 mm | 420 mm | 450 mm | 470 mm | 390 mm | 420 mm | 450 mm | 470 mm | 390 mm | 420 mm | 450 mm | 470 mm | 390 mm | 420 mm | 450 mm | 470 mm |
| Top tube | 569 mm | 594 mm | 621 mm | 647 mm | 570 mm | 595 mm | 622 mm | 648 mm | 569 mm | 594 mm | 621 mm | 647 mm | 570 mm | 595 mm | 622 mm | 648 mm |
| Head tube | 105 mm | 115 mm | 120 mm | 125 mm | 105 mm | 115 mm | 120 mm | 125 mm | 105 mm | 115 mm | 120 mm | 125 mm | 105 mm | 115 mm | 120 mm | 125 mm |
| Head-tube angle | 63.5° | 63.5° | 63.5° | 63.5° | 63° | 63° | 63° | 63° | 63.5° | 63.5° | 63.5° | 63.5° | 63° | 63° | 63° | 63° |
| Seat-tube angle | 78.8° | 78.5° | 78° | 77.6° | 78.3° | 78° | 77.6° | 77.1° | 78.8° | 78.5° | 78° | 77.6° | 78.3° | 78° | 77.6° | 77.1° |
| Chainstay / rear center | 440 mm | 440 mm | 450 mm | 450 mm | 450 mm | 450 mm | 460 mm | 460 mm | 443 mm | 443 mm | 453 mm | 453 mm | 447 mm | 447 mm | 457 mm | 457 mm |
| Wheelbase | 1234 mm | 1258 mm | 1291 mm | 1313 mm | 1242 mm | 1267 mm | 1299 mm | 1322 mm | 1236 mm | 1260 mm | 1293 mm | 1315 mm | 1241 mm | 1265 mm | 1298 mm | 1320 mm |
| Bottom-bracket height | 347 mm | 347 mm | 347 mm | 347 mm | 340 mm | 340 mm | 340 mm | 340 mm | 347 mm | 347 mm | 347 mm | 347 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Reach | 445 mm | 465 mm | 485 mm | 505 mm | 440 mm | 460 mm | 480 mm | 500 mm | 445 mm | 465 mm | 485 mm | 505 mm | 440 mm | 460 mm | 480 mm | 500 mm |
| Stack | 627 mm | 636 mm | 640 mm | 645 mm | 631 mm | 640 mm | 644 mm | 649 mm | 627 mm | 636 mm | 640 mm | 645 mm | 631 mm | 640 mm | 645 mm | 649 mm |
| Standover height | 745 mm | 745 mm | 745 mm | 745 mm | 740 mm | 740 mm | 740 mm | 740 mm | 745 mm | 745 mm | 745 mm | 745 mm | 740 mm | 740 mm | 740 mm | 740 mm |
Geometry source: Devinci first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
The manufacturer publishes more than one geometry configuration. Velopedia analyzes each labeled state separately while treating them as one chassis in archive comparisons.
S geometry
Configuration
Archive context: The seat angle of 78.8° sits toward the steeper end. Its wheelbase of 1234 mm sits toward the longer end. Its reach of 445 mm sits toward the longer end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · MX SHORT geometry Archive context: Its wheelbase of 1242 mm sits toward the longer end. The chainstay of 450 mm sits toward the longer rear-center end. The head angle of 63° sits toward the slacker end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · 29 LONG geometry Archive context: The seat angle of 78.8° sits toward the steeper end. Its wheelbase of 1236 mm sits toward the longer end. The chainstay of 443 mm sits toward the longer rear-center end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · 29 SHORT geometry Archive context: Its wheelbase of 1241 mm sits toward the longer end. The head angle of 63° sits toward the slacker end. The chainstay of 447 mm sits toward the longer rear-center end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · MX LONG geometry M geometry
Configuration
Archive context: The seat angle of 78.5° sits toward the steeper end. Its wheelbase of 1258 mm sits toward the longer end. Its stack of 636 mm sits toward the taller end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · MX SHORT geometry Archive context: Its wheelbase of 1267 mm sits toward the longer end. The chainstay of 450 mm sits toward the longer rear-center end. Its stack of 640 mm sits toward the taller end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · 29 LONG geometry Archive context: The seat angle of 78.5° sits toward the steeper end. Its wheelbase of 1260 mm sits toward the longer end. Its stack of 636 mm sits toward the taller end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · 29 SHORT geometry Archive context: Its wheelbase of 1265 mm sits toward the longer end. Its stack of 640 mm sits toward the taller end. The head angle of 63° sits toward the slacker end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · MX LONG geometry L geometry
Configuration
Archive context: The seat angle of 78° sits toward the steeper end. Its wheelbase of 1291 mm sits toward the longer end. The chainstay of 450 mm sits toward the longer rear-center end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · MX SHORT geometry Archive context: The chainstay of 460 mm sits toward the longer rear-center end. Its wheelbase of 1299 mm sits toward the longer end. The head angle of 63° sits toward the slacker end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · 29 LONG geometry Archive context: The chainstay of 453 mm sits toward the longer rear-center end. Its wheelbase of 1293 mm sits toward the longer end. The seat angle of 78° sits toward the steeper end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · 29 SHORT geometry Archive context: The chainstay of 457 mm sits toward the longer rear-center end. Its wheelbase of 1298 mm sits toward the longer end. The head angle of 63° sits toward the slacker end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · MX LONG geometry XL geometry
Configuration
Archive context: The chainstay of 450 mm sits toward the longer rear-center end. The seat angle of 77.6° sits toward the steeper end. The head angle of 63.5° sits toward the slacker end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · MX SHORT geometry Archive context: The chainstay of 460 mm sits toward the longer rear-center end. The head angle of 63° sits toward the slacker end. Its wheelbase of 1322 mm sits toward the longer end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · 29 LONG geometry Archive context: The chainstay of 453 mm sits toward the longer rear-center end. The seat angle of 77.6° sits toward the steeper end. The head angle of 63.5° sits toward the slacker end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · 29 SHORT geometry Archive context: The chainstay of 457 mm sits toward the longer rear-center end. The head angle of 63° sits toward the slacker end. Its wheelbase of 1320 mm sits toward the longer end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · MX LONG geometry Parts & serviceability
Find replacement parts
SDG Tellis 31.6mm
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Devinci Spartan Deore 12s · Mountain · Published sizes: S · MX SHORT, M · MX SHORT, L · MX SHORT, XL · MX SHORT, S · 29 LONG, M · 29 LONG, L · 29 LONG, XL · 29 LONG, S · 29 SHORT, M · 29 SHORT, L · 29 SHORT, XL · 29 SHORT, S · MX LONG, M · MX LONG, L · MX LONG, XL · MX LONG
Frame and fork
Inspect the frame and fork →Archived: Frame: Aluminum Optimum G04 165mm · Fork: Rockshox Domain Gold R DebonAir 170 | 1T | 44 Offset
Suspension
Evaluate the suspension →Archived: Fork: Rockshox Domain Gold R DebonAir 170 | 1T | 44 Offset · Rear shock: Fox Float X2 Performance Elite Trunnion | 0.3Vspacer|205x65
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: Shimano Deore M6100 | 12s · Crankset: Shimano MT5121 | 32T · Bottom bracket: Shimano BB MT501 | BSA | 68/73mm · Cassette: Shimano Deore M6100 | 12s | 10-51T | Microspline · Chain: KMC X12 | 12s
Brakes
Inspect the brakes →Archived: Brakes: SRAM DB8
Wheels and tires
Check wheels and tires →Archived: Rims: Front: RaceFace AR30 29 | 30mm inner | TR; Rear: RaceFace AR35 Offset 27.5 | 35mm inner | TR · Hubs: Front: Formula DC-611 | Sealed | 6bolts | TA 15x110mm; Rear: Formula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline · Front tire: Maxxis Minion DHF | 29x2.5 | 3C | Exo+ | TR | MaxxTerra · Rear tire: Maxxis Minion DHR II | 27.5x2.5 | 3C | DD | TR | MaxxTerra
Controls and contact points
Archived: Headset: FSA Orbit | 1.5 | Zero Stack · Handlebar: V2 Pro | B:35mm | R:30mm | W:800mm · Stem: V2 Pro | B:35mm | L:40mm | 0° · Seatpost: SDG Tellis 31.6mm · Saddle: Devinci
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
