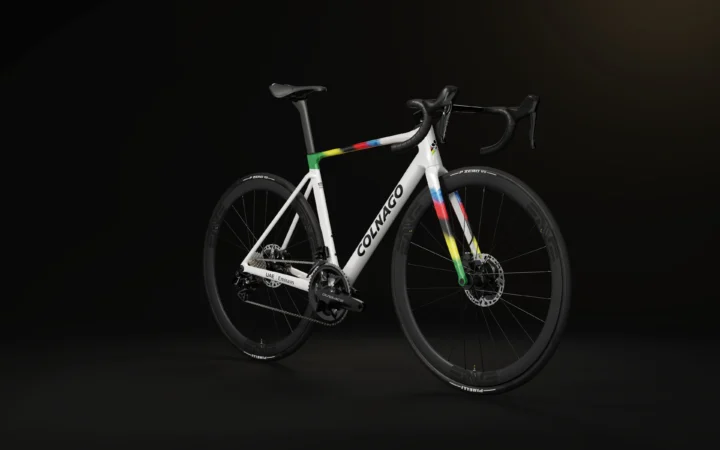

2026 Colnago V5Rs Shimano Ultegra Di2
Road bicycle from the Velopedia specification archive.
- Original MSRP
- From $11,750.00
- Sizes
- 420, 455, 485, 510, 530, 550, 570
- Colors
- SDMX, RVWH, RVBK
- Weight
- Size 485 unpainted frame: 685g
- Geometry
- 7 manufacturer sizes · Ride analysis
- Archive ID
- 900000270
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Electronic shifting removes the usual shift cable but adds a separate battery and controls, while the 309% cassette range describes how much gearing is available. Carbon construction changes the inspection emphasis from metal-style dents and corrosion to impact damage, ripples and overtightened clamp areas. A threaded bottom bracket still requires the correct shell width, thread standard and crank-spindle interface before replacement.
Drivetrain
Electronic · 309% range
Shift-system battery state joins derailleur setup and sprocket compatibility as a troubleshooting variable.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Bottom bracket
Threaded interface
Shell width, thread standard and crank-spindle interface still require confirmation.
Published weight
Size 485 unpainted frame: 685g
Frame size, pedals, tire setup and production substitutions can change the measured result.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Colnago V5Rs Shimano Ultegra Di2 · Road · Published sizes: 420, 455, 485, 510, 530, 550, 570
Frame and fork
Inspect the frame and fork →Archived: Frame: Colnago V5Rs Monocoque carbon frame · Fork: Carbon fork for disc brakes, integrated cables, Semi-Circular section. · Carbon fiber
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Ultegra Di2 · Shifters: Shimano ULTEGRA ST-R8170 · Front derailleur: Shimano FD-R8150 · Rear derailleur: Shimano Shadow RD-R8150 · Crankset: 52-36T · Bottom bracket: BSA (English Threaded Bottom Bracket) Shimano · Cassette: 11-34 · Chain: Shimano CN-M8100 12V
Brakes
Inspect the brakes →Archived: Brakes: Shimano Ultegra R8170, 160 mm Front / 140 mm Rear, RT-CL900 rotors
Wheels and tires
Check wheels and tires →Archived: Wheels: Option 1Fulcrum Sharq 57Option 2VISION SC45 · Hubs: Fulcrum Wind 420 DBAluminum, Low flanges. Sealed bearing, AdjustableFulcrum Racing 600 DBAluminum, Aluminum flanges Sealed cartridge bearings · Front tire: Fulcrum Sharq 57Pirelli PZero Race 700x28VISION SC45Pirelli P7 Sport 700x28 · Rear tire: Fulcrum Sharq 57Pirelli PZero Race 700x28VISION SC45Pirelli P7 Sport 700x28
Controls and contact points
Archived: Headset: 1"1/8 and 1"1/4 - SLT Treated Bearings · Handlebar: Colnago CC.01 integrated Cockpit - regular geometry. · Stem: CC01 integrated cockpit · Seatpost: Standard OptionCarbon seatpost, 15mm offsetSold separatelyCarbon seatpost, 0 mm offset · Saddle: Prologo Scratch M5 TiroxSelle Italia Novus Boost EVO TI316 Superflow(subject to stock availability)
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Colnago V5Rs Monocoque carbon frame |
|---|---|
| Frame Material | Carbon fiber |
| Fork | Carbon fork for disc brakes, integrated cables, Semi-Circular section. |
| Fork Material | Carbon fiber |
Drivetrain
| Component Group | Shimano Ultegra Di2 |
|---|---|
| Shifters | Shimano ULTEGRA ST-R8170 |

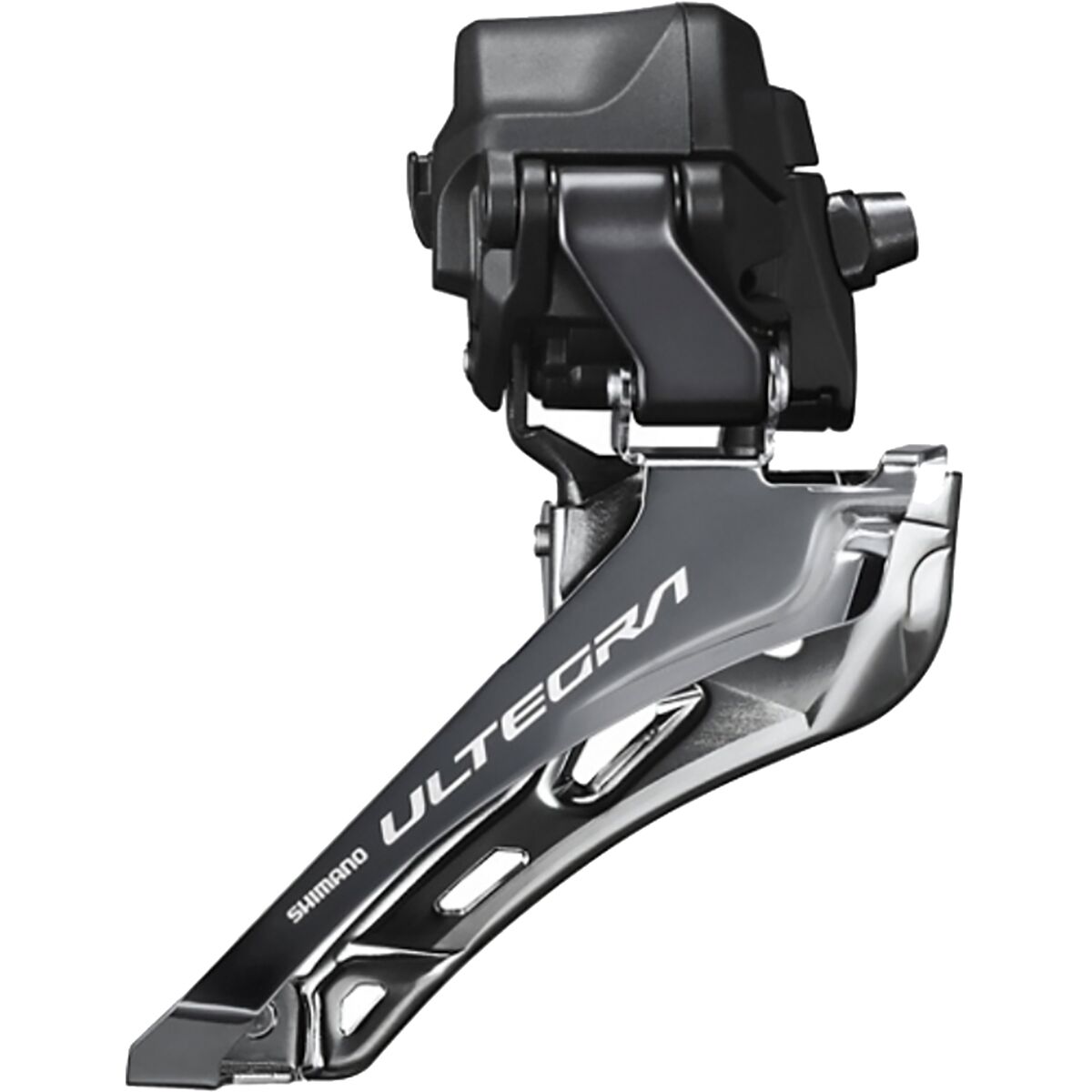

| Front Derailleur | Shimano FD-R8150 |
| Rear Derailleur | Shimano Shadow RD-R8150 |
| Crankset | 52-36T |
| Bottom Bracket | BSA (English Threaded Bottom Bracket) Shimano |
| Cassette | 11-34 |
| Chain | Shimano CN-M8100 12V |
Brakes
| Brakes | Shimano Ultegra R8170, 160 mm Front / 140 mm Rear, RT-CL900 rotors |
|---|
Cockpit & Contact Points
| Headset | 1"1/8 and 1"1/4 - SLT Treated Bearings |
|---|---|
| Handlebar | Colnago CC.01 integrated Cockpit - regular geometry. |
| Stem | CC01 integrated cockpit |
| Saddle | Prologo Scratch M5 TiroxSelle Italia Novus Boost EVO TI316 Superflow(subject to stock availability) |
| Seatpost | Standard OptionCarbon seatpost, 15mm offsetSold separatelyCarbon seatpost, 0 mm offset |
Wheels & Tires
| Hubs | Fulcrum Wind 420 DBAluminum, Low flanges. Sealed bearing, AdjustableFulcrum Racing 600 DBAluminum, Aluminum flanges Sealed cartridge bearings |
|---|---|
| Wheels | Option 1Fulcrum Sharq 57Option 2VISION SC45 |
| Rims | Material: Fulcrum Wind 420 DBCarbon (FF80)Fulcrum Racing 600 DBAlluminium; Rim Height: Fulcrum Wind 420 DB42 mmFulcrum Racing 600 DB24 mm; Internal Channel Width: Fulcrum Wind 420 DB23 mmFulcrum Racing 600 DB20 mm |
| Front Tire | Fulcrum Sharq 57Pirelli PZero Race 700x28VISION SC45Pirelli P7 Sport 700x28 |
| Rear Tire | Fulcrum Sharq 57Pirelli PZero Race 700x28VISION SC45Pirelli P7 Sport 700x28 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 420 | 455 | 485 | 510 | 530 | 550 | 570 |
|---|---|---|---|---|---|---|---|
| Head tube | 101 mm | 112 mm | 127 mm | 146 mm | 162 mm | — | 199 mm |
| Head-tube angle | 70.6° | 71.5° | 72.3° | 72.5° | 73° | 73° | 73.5° |
| Seat-tube angle | 75.5° | 75.3° | 74.8° | 74.5° | 73.8° | 73.5° | 73.3° |
| Chainstay / rear center | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Reach | 371 mm | 377 mm | 384 mm | 390 mm | 397 mm | 404 mm | 411 mm |
| Stack | 509 mm | 523 mm | 539 mm | 557 mm | 575 mm | 593 mm | 612 mm |
| Front center | 579 mm | 581.5 mm | 586.5 mm | 596.5 mm | 600 mm | 612.5 mm | 622 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 172.5 or 175 mm (subject to availability) | 172.5 or 175 mm (subject to availability) |
| Stem length | 90 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm |
| Handlebar width | 390 mm | 390 mm | 390 mm | 410 mm | 410 mm | 410 or 430 mm (subject to availability) | 410 or 430 mm (subject to availability) |
Geometry source: Colnago first-party labeled geometry panels ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
420 geometry
Riding position
The 509 mm stack is low relative to the 371 mm reach, giving the frame a performance-oriented, lower-front-end proportion with more potential for a stretched riding position. A 75.5° seat angle puts the rider relatively forward over the bottom bracket, shortening the effective seated reach compared with a more relaxed seat angle.
Handling tendencies
The 70.6° head angle points to more stability-oriented steering geometry. Head angle is only one part of steering feel; fork offset, trail, wheel size and cockpit setup also matter.
Archive context
Its stack of 509 mm sits toward the lower end. The seat angle of 75.5° sits somewhat steeper than typical. Its reach of 371 mm sits somewhat longer than typical.
455 geometry
Riding position
The 523 mm stack is low relative to the 377 mm reach, giving the frame a performance-oriented, lower-front-end proportion with more potential for a stretched riding position. A 75.3° seat angle puts the rider relatively forward over the bottom bracket, shortening the effective seated reach compared with a more relaxed seat angle.
Handling tendencies
The 71.5° head angle points to more stability-oriented steering geometry. Head angle is only one part of steering feel; fork offset, trail, wheel size and cockpit setup also matter.
Archive context
The seat angle of 75.3° sits toward the steeper end. Its reach of 377 mm sits toward the longer end. The head angle of 71.5° sits somewhat steeper than typical.
485 geometry
Riding position
The 539 mm stack is low relative to the 384 mm reach, giving the frame a performance-oriented, lower-front-end proportion with more potential for a stretched riding position. A 74.8° seat angle puts the rider relatively forward over the bottom bracket, shortening the effective seated reach compared with a more relaxed seat angle.
Handling tendencies
The 72.3° head angle points to moderate and balanced steering geometry. Head angle is only one part of steering feel; fork offset, trail, wheel size and cockpit setup also matter.
Archive context
The head angle of 72.3° sits toward the steeper end. Its reach of 384 mm sits toward the longer end. The seat angle of 74.8° sits toward the steeper end.
510 geometry
Riding position
The 557 mm stack is low relative to the 390 mm reach, giving the frame a performance-oriented, lower-front-end proportion with more potential for a stretched riding position. A 74.5° seat angle puts the rider relatively forward over the bottom bracket, shortening the effective seated reach compared with a more relaxed seat angle.
Handling tendencies
The 72.5° head angle points to moderate and balanced steering geometry. Head angle is only one part of steering feel; fork offset, trail, wheel size and cockpit setup also matter.
Archive context
The seat angle of 74.5° sits toward the steeper end. Its reach of 390 mm sits toward the longer end. The chainstay of 408 mm sits somewhat shorter than typical.
530 geometry
Riding position
The 397 mm reach and 575 mm stack form a moderate road-bike proportion, balancing cockpit length with front-end height rather than pushing to an extreme race-low or endurance-upright shape.
Handling tendencies
The 73° head angle points to moderate and balanced steering geometry. Head angle is only one part of steering feel; fork offset, trail, wheel size and cockpit setup also matter.
Archive context
The seat angle of 73.8° sits toward the steeper end. Its reach of 397 mm sits toward the longer end. The chainstay of 408 mm sits somewhat shorter than typical.
550 geometry
Riding position
The 404 mm reach and 593 mm stack form a moderate road-bike proportion, balancing cockpit length with front-end height rather than pushing to an extreme race-low or endurance-upright shape.
Handling tendencies
The 73° head angle points to moderate and balanced steering geometry. Head angle is only one part of steering feel; fork offset, trail, wheel size and cockpit setup also matter.
Archive context
Its reach of 404 mm sits toward the longer end. The seat angle of 73.5° sits somewhat steeper than typical. The chainstay of 408 mm sits somewhat shorter than typical.
570 geometry
Riding position
The 411 mm reach and 612 mm stack form a moderate road-bike proportion, balancing cockpit length with front-end height rather than pushing to an extreme race-low or endurance-upright shape.
Handling tendencies
The 73.5° head angle points to moderate and balanced steering geometry. Head angle is only one part of steering feel; fork offset, trail, wheel size and cockpit setup also matter.
Archive context
Its reach of 411 mm sits toward the longer end. The chainstay of 408 mm sits toward the shorter rear-center end. The seat angle of 73.3° sits somewhat steeper than typical.
Across the size range
From 420 to 570, reach grows by 40 mm and stack by 103 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 408 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
