2026 Cervelo P-Series Rival AXS

Original specifications: 9.28 kgs published weight · geometry for 6 published sizes.

Share owner experience

Selling this bike? Get the spec link and selling options

At a glance

Model year
2026
Category
Road
Original MSRP
$6,950.00
Sizes
48, 51, 54, 56, 58, 61
Colors
Haleakala
Weight
9.28 kgs
Geometry
6 manufacturer sizes
In this record
18 specifications · archived image · original MSRP · geometry
Archive ID
900000164

Current retail availability

This exact model is available

Backcountry currently lists a 2026 Cervelo P-Series Rival AXS matching this Archive record. Available sizes, colors and prices can change.

$6,950.00

View this bike at Backcountry Affiliate link · Velopedia may earn a commission. Retail relationships do not influence Archive data or analysis.
Original build18 specifications

Manufacturer catalog

Published sizes and colors

6 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

485154565861

Published colors

Haleakala

Frameset

Frame ConstructionCervélo P-Series frame
ForkCervélo All-Carbon, Tapered P Fork
Fork MaterialCarbon Fiber

Drivetrain

ShiftersRiderever Triva Carbon AXS for SRAM AXS Blip controller
Rear DerailleurSRAM Rival AXS E1
CranksetSRAM Rival AXS E1, 48T Aero, DUB, with power meter
Bottom BracketSRAM DUB, BBright
CassetteSRAM Rival D1, 10-36T, 12-Speed
ChainSRAM Rival E1

Brakes

BrakesBrake controls: Riderever Triva Carbon AXS for SRAM AXS Blip controller; Rotors: Shimano CL700 Centerlock

Cockpit & Contact Points

HeadsetFSA IS2 1-1/4, 45° x 45° / 1-3/8, 36° x 45°
HandlebarProfile Design Bracket Riser Kit 30mm
StemCervélo ST36 Alloy
SaddleFizik Transiro Aeris LD R5
SeatpostCervélo SP23 Carbon

Wheels & Tires

WheelsVision TC60 i23
Front TireVittoria Corsa N.EXT TLR G2.0 700x29c
Rear TireVittoria Corsa N.EXT TLR G2.0 700x29c

Geometry

6 sizes · 13 measurements

Frame measurements by size.

All geometry measurements6 sizes · 13 measurements
Measurement485154565861
Head tube87.8 mm101.7 mm118.4 mm137.3 mm158.3 mm177.2 mm
Head-tube angle71°72.5°72.5°72.5°72.5°72.5°
Seat-tube angle75°75°75°75°75°75°
Chainstay / rear center405 mm405 mm405 mm405 mm405 mm405 mm
Wheelbase973 mm974 mm993 mm1012 mm1030 mm1045 mm
Bottom-bracket drop80 mm80 mm80 mm80 mm80 mm80 mm
Reach378 mm395 mm409 mm422 mm434 mm443 mm
Stack494 mm515 mm531 mm549 mm569 mm587 mm
Standover height734 mm755 mm770 mm787 mm806 mm823 mm
Fork offset / rake52 mm43 mm43 mm43 mm43 mm43 mm
Front center581 mm583 mm602 mm620 mm638 mm653 mm
Trail62.1 mm62.1 mm62.1 mm62.1 mm62.1 mm62.1 mm
Wheel size700C700C700C700C700C700C

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes48T · 10–36T · 12-speed
Lowest1.33:1 Highest4.80:1 Total range360%
Estimated speed At 90 RPM Lowest gear9.6 mph Highest gear34.4 mph

Rear tire: 700C×29.

How it works

Ratio = chainring teeth ÷ rear sprocket teeth. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Campaign

Parts & serviceability

Find replacement parts

Original specifications

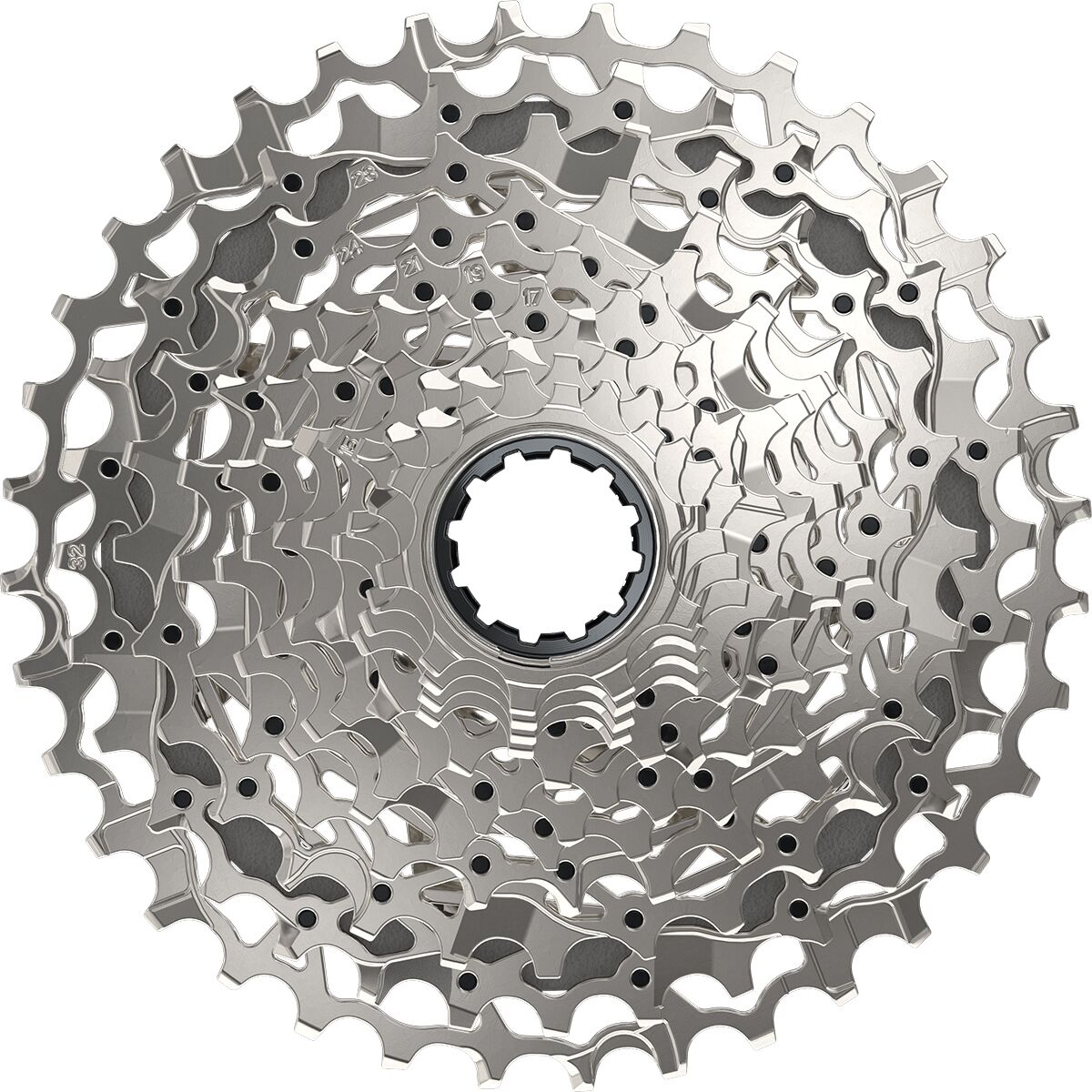

Cassette · Original
SRAM Rival D1, 10-36T, 12-Speed Search: SRAM Rival D1, 10-36T, 12-Speed cassette
Retailer offers · Affiliate links
Bottom bracket · Original
SRAM DUB, BBright
Retailer offers · Affiliate links

Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. Velopedia may earn from qualifying retailer purchases.

Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
0 of 20 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2026 Cervelo P-Series Rival AXS · Triathlon/TT · Published sizes: 48, 51, 54, 56, 58, 61

Archived: Frame: Cervélo P-Series frame · Fork: Cervélo All-Carbon, Tapered P Fork · Carbon Fiber

Archived: Shifters: Riderever Triva Carbon AXS for SRAM AXS Blip controller · Rear derailleur: SRAM Rival AXS E1 · Crankset: SRAM Rival AXS E1, 48T Aero, DUB, with power meter · Bottom bracket: SRAM DUB, BBright · Cassette: SRAM Rival D1, 10-36T, 12-Speed · Chain: SRAM Rival E1

Archived: Brakes: Brake controls: Riderever Triva Carbon AXS for SRAM AXS Blip controller; Rotors: Shimano CL700 Centerlock

Archived: Wheels: Vision TC60 i23 · Front tire: Vittoria Corsa N.EXT TLR G2.0 700x29c · Rear tire: Vittoria Corsa N.EXT TLR G2.0 700x29c

Controls and contact points

Archived: Headset: FSA IS2 1-1/4, 45° x 45° / 1-3/8, 36° x 45° · Handlebar: Profile Design Bracket Riser Kit 30mm · Stem: Cervélo ST36 Alloy · Seatpost: Cervélo SP23 Carbon · Saddle: Fizik Transiro Aeris LD R5
