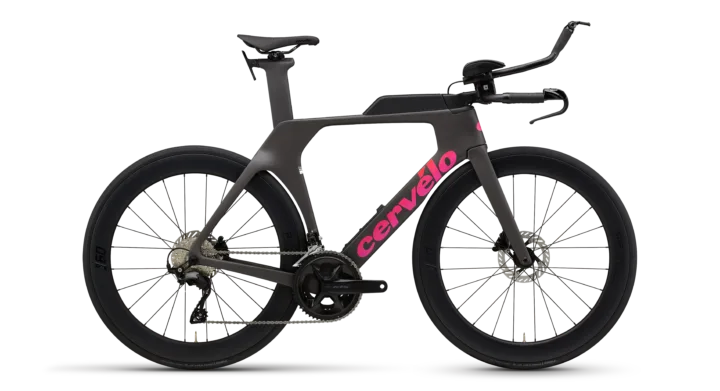

2026 Cervelo P-Series 105
Original specifications: 9.7 kgs published weight · geometry for 6 published sizes.
Selling this bike? Get the spec link and selling options
At a glance
- Model year
- 2026
- Category
- Road
- Original MSRP
- $5,300.00
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Abyss, Haleakala
- Weight
- 9.7 kgs
- Geometry
- 6 manufacturer sizes
- In this record
- 18 specifications · 2 archived images · original MSRP · geometry
- Archive ID
- 900000163
Original build18 specifications
Frameset
| Frame Construction | Cervélo P-Series frame |
|---|---|
| Fork | Cervélo All-Carbon, Tapered P Fork |
| Fork Material | Carbon Fiber |
Drivetrain
| Front Derailleur | Shimano 105, R7100 |
|---|---|
| Rear Derailleur | Shimano 105, R7100 |
| Crankset | Shimano 105 R7100, 52/36T |
| Bottom Bracket | FSA, BBright thread together for 24mm spindle |
| Cassette | Shimano 105, R7101, 11-34T, 12-Speed |
| Chain | Shimano M7100 |
Brakes
| Brakes | Riderever Triva Carbon; Rotors: Shimano CL700 Centerlock |
|---|
Cockpit & Contact Points
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-3/8, 36° x 45° |
|---|---|
| Handlebar | Profile Design Bracket Riser Kit 30mm |
| Stem | Cervélo ST36 Alloy |
| Saddle | Cervélo Tri Saddle |
| Seatpost | Cervélo SP23 Carbon |
Wheels & Tires
| Wheels | Vision TC60 i23 |
|---|---|
| Front Tire | Vittoria Corsa N.EXT TLR G2.0 700x29c |
| Rear Tire | Vittoria Corsa N.EXT TLR G2.0 700x29c |
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 13 measurements
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Head tube | 87.8 mm | 101.7 mm | 118.4 mm | 137.3 mm | 158.3 mm | 177.2 mm |
| Head-tube angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| Seat-tube angle | 75° | 75° | 75° | 75° | 75° | 75° |
| Chainstay / rear center | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 973 mm | 974 mm | 993 mm | 1012 mm | 1030 mm | 1045 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Reach | 378 mm | 395 mm | 409 mm | 422 mm | 434 mm | 443 mm |
| Stack | 494 mm | 515 mm | 531 mm | 549 mm | 569 mm | 587 mm |
| Standover height | 734 mm | 755 mm | 770 mm | 787 mm | 806 mm | 823 mm |
| Fork offset / rake | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Front center | 581 mm | 583 mm | 602 mm | 620 mm | 638 mm | 653 mm |
| Trail | 62.1 mm | 62.1 mm | 62.1 mm | 62.1 mm | 62.1 mm | 62.1 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = chainring teeth ÷ rear sprocket teeth. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Parts & serviceability
Find replacement parts

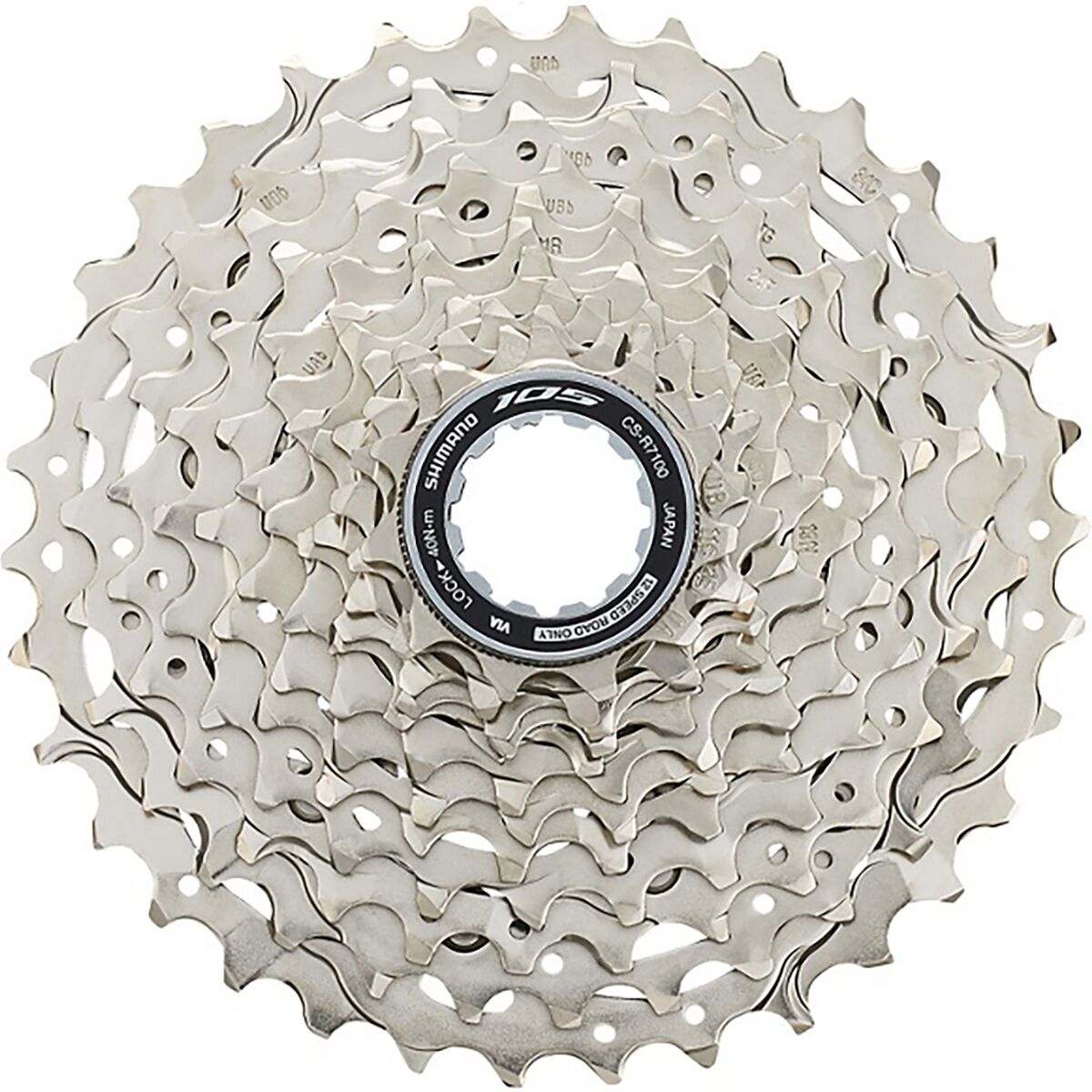

Shimano 105 CS-R7100 12-Speed Cassette Silver, 11-34T, 12- Speed
11-34T, 12- Speed

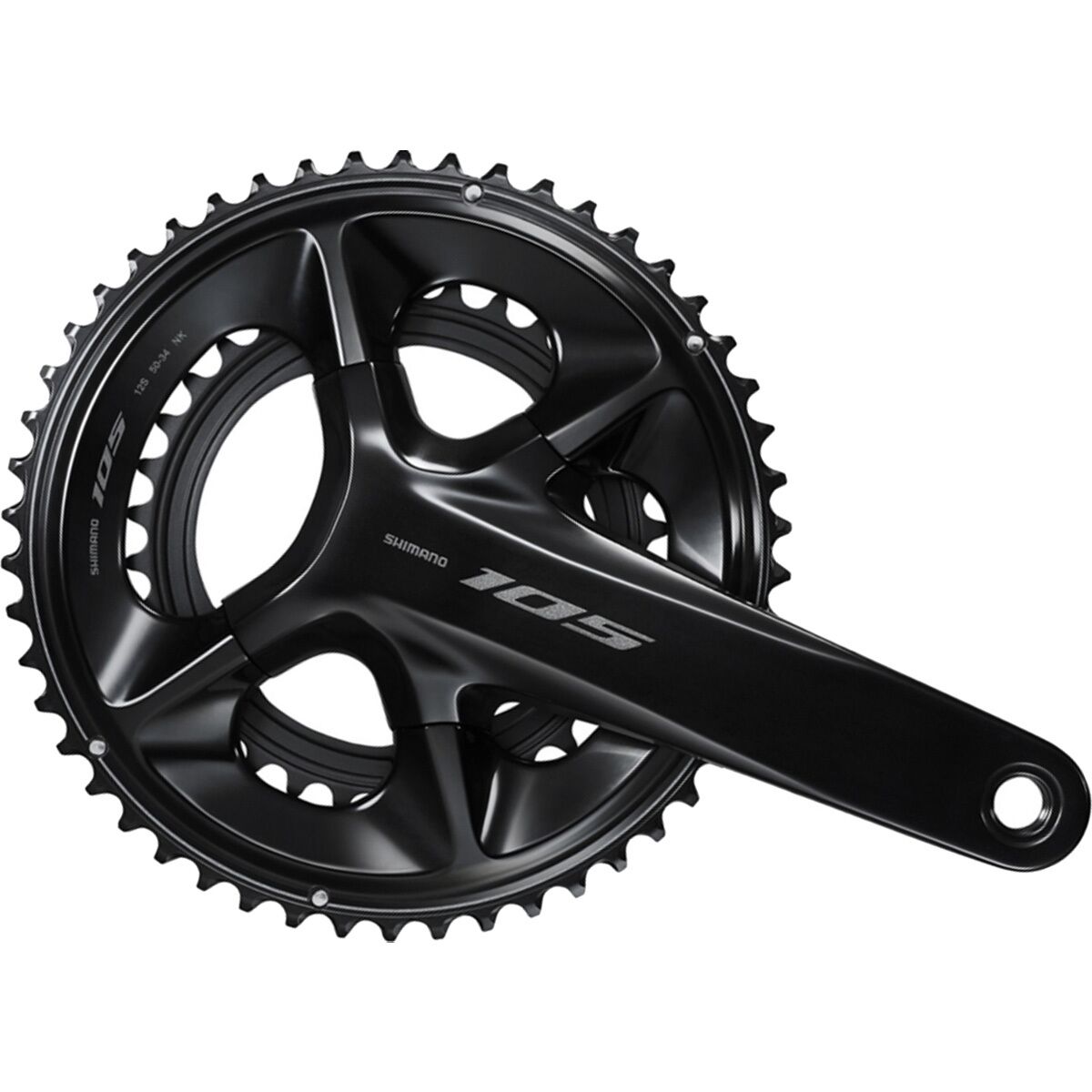

Shimano 105 FC-R7100 12-Speed Crankset
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Cervelo P-Series 105 · Triathlon/TT · Published sizes: 48, 51, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Cervélo P-Series frame · Fork: Cervélo All-Carbon, Tapered P Fork · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Front derailleur: Shimano 105, R7100 · Rear derailleur: Shimano 105, R7100 · Crankset: Shimano 105 R7100, 52/36T · Bottom bracket: FSA, BBright thread together for 24mm spindle · Cassette: Shimano 105, R7101, 11-34T, 12-Speed · Chain: Shimano M7100
Brakes
Inspect the brakes →Archived: Brakes: Riderever Triva Carbon; Rotors: Shimano CL700 Centerlock
Wheels and tires
Check wheels and tires →Archived: Wheels: Vision TC60 i23 · Front tire: Vittoria Corsa N.EXT TLR G2.0 700x29c · Rear tire: Vittoria Corsa N.EXT TLR G2.0 700x29c
Controls and contact points
Archived: Headset: FSA IS2 1-1/4, 45° x 45° / 1-3/8, 36° x 45° · Handlebar: Profile Design Bracket Riser Kit 30mm · Stem: Cervélo ST36 Alloy · Seatpost: Cervélo SP23 Carbon · Saddle: Cervélo Tri Saddle
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
