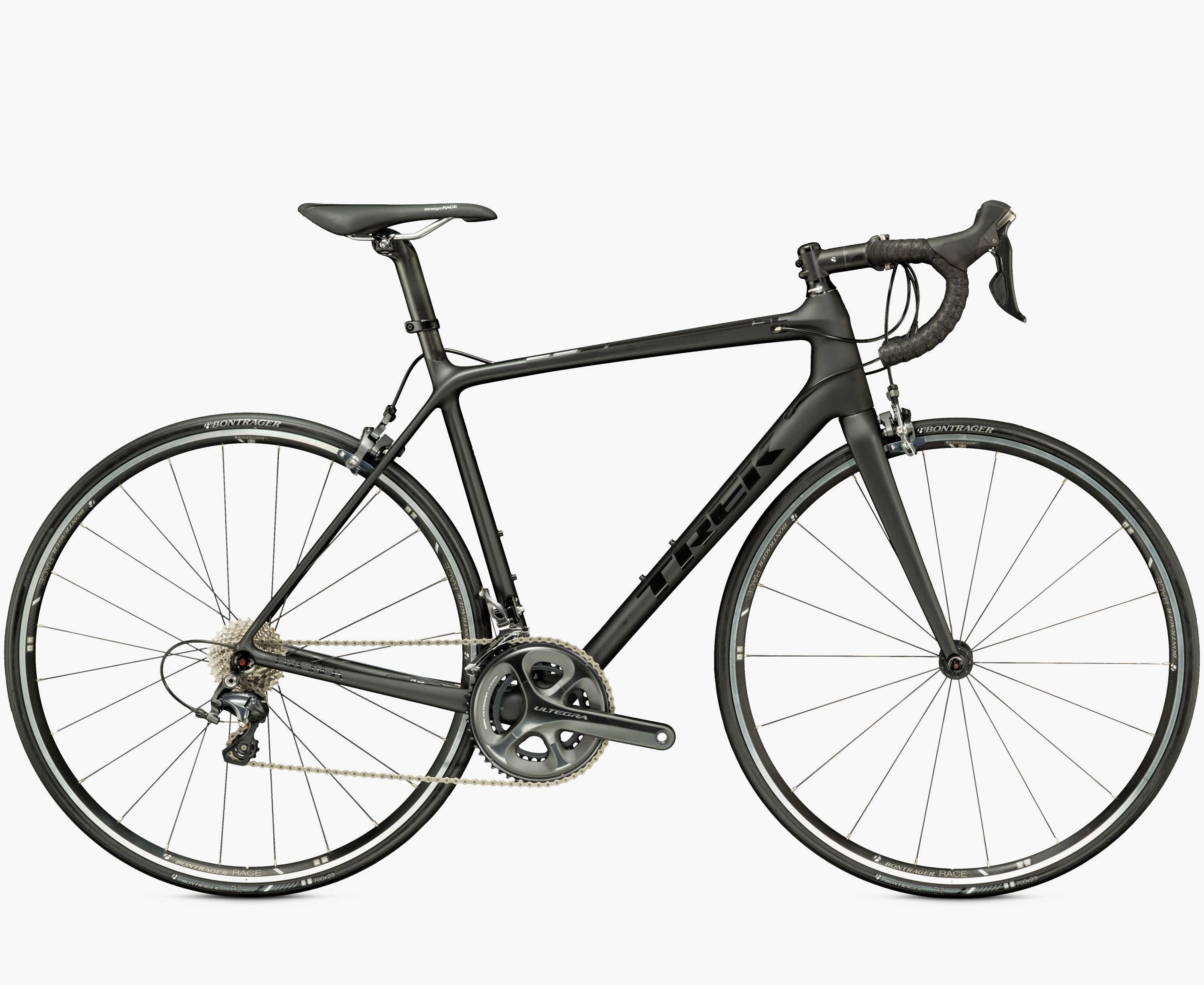

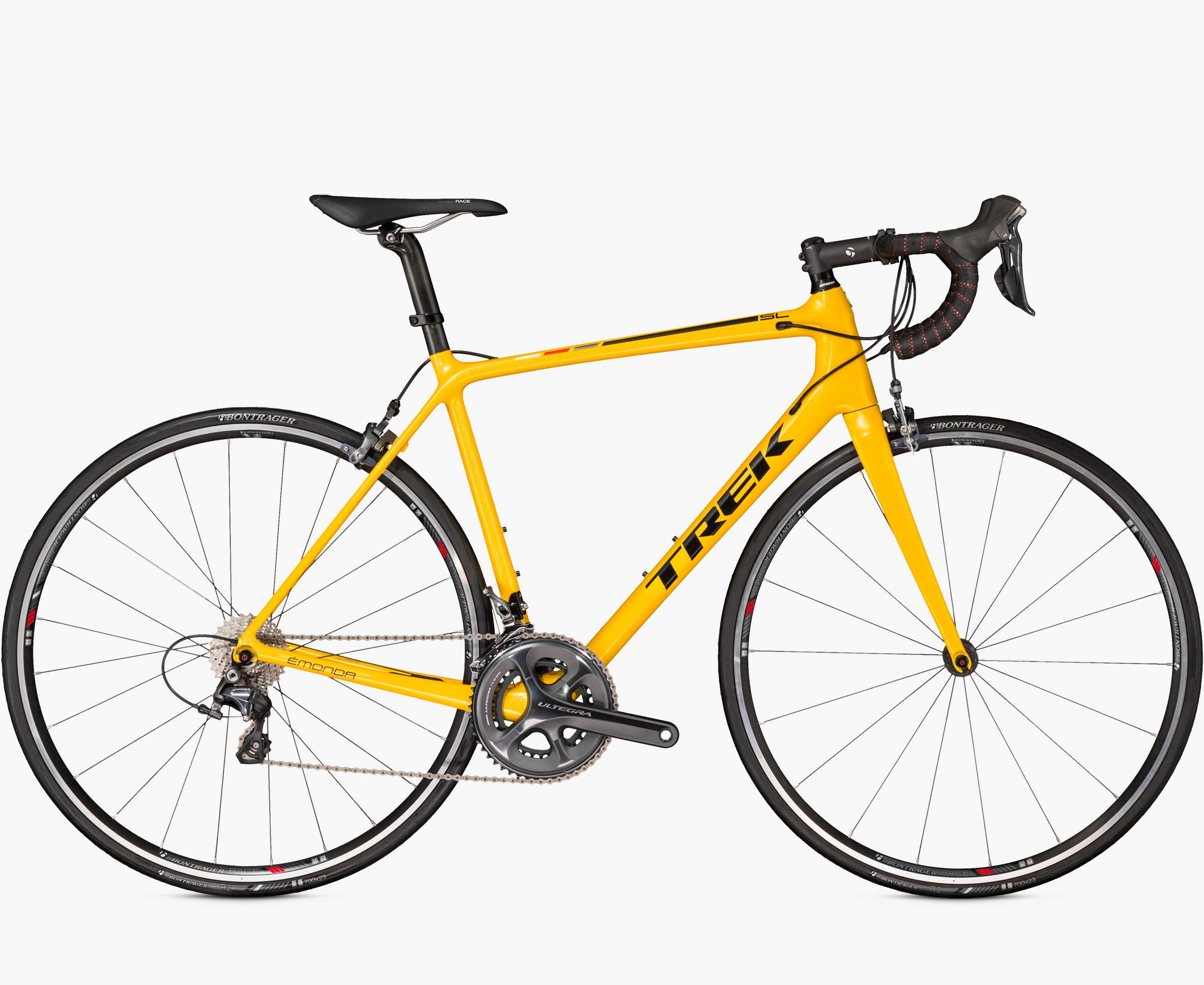

2016 Trek Emonda SL 6
Road Double bicycle from the Velopedia specification archive.
- Original MSRP
- $2,999.99
- Sizes
- 47, 50, 52, 54, 56, 58, 60, 62, 64cm
- Colors
- Matte Trek Black/Gloss Trek Black, Goldenage
- Archive ID
- 1160832
Frameset
| Frame Construction | Ultralight 500 Series OCLV Carbon, ride-tuned performance tube optimization, E2 tapered head tube, BB90, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast |
|---|---|
| Frame Material | Carbon Fiber |
| Fork Material | Carbon Fiber |
Drivetrain
| Component Group | Shimano Ultegra |
|---|---|
| Shifters | Shimano Ultegra, 11 speed |
| Front Derailleur | Shimano Ultegra |
| Rear Derailleur | Shimano Ultegra |
| Crankset | Shimano Ultegra, 50/34 (compact) |
| Bottom Bracket | BB90 |
| Rear Cogs | Shimano Ultegra, 11-28, 11 speed |
| Chain | Shimano Ultegra |
Brakes
| Brakes | Shimano Ultegra |
|---|
Cockpit & Contact Points
| Headset | FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom |
|---|---|
| Handlebar | Bontrager Race Lite, VR, 31.8mm |
| Stem | Bontrager Elite, 31.8mm, 7 degree, w/Blendr computer & light mounts |
| Saddle | Bontrager Paradigm R, hollow chromoly rails |
| Seatpost | Bontrager Ride Tuned carbon seatmast cap, 20mm offset |
Wheels & Tires
| Hubs | Bontrager alloy hubs |
|---|---|
| Rims | Bontrager Race Tubeless Ready |
| Front Tire | Bontrager R2 Hard-Case Lite, aramid bead, 700x23c |
| Wheel Size | 700c |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
