Velopedia Bicycle Archive

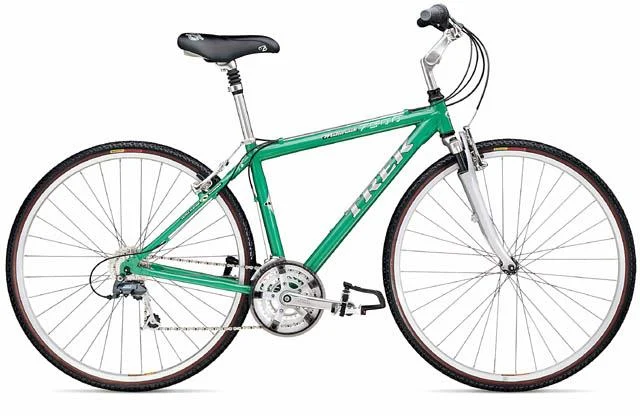

1999 Trek 7500 SHX (02)
Hybrid bicycle from the Velopedia specification archive.
- Original MSRP
- $699.99
- Sizes
- 15", 17.5", 20.5", 23", womens 17", womens 20"
- Colors
- Explorer Green
- Weight
- 24
- Archive ID
- 84339
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | Rock Shox Ruby Metro, 1.2" travel |
| Fork Material | Aluminum/magnesium, triple-clamp crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | Grip Shift Centera |
| Front Derailleur | Shimano Nexave top-swing, top-pull/clamp-on 35.0mm |
| Rear Derailleur | Shimano Deore LX SGS |
| Crankset | Shimano Nexave 400, 28/38/48 teeth |
| Bottom Bracket | Shimano BB-LP27, 110mm spindle |
| BB Shell Width | 73mm English |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | KAZ LR900, 1/2 x 3/32" |
| Pedals | Aluminum cage w/clips & straps |
Brakes
| Brakes | Lee Chi TX22 brakes, Lee Chi LV78E levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Tange-Seiki Passage |
|---|---|
| Handlebar | Alloy MTB |
| Handlebar Extensions | Not included |
| Stem | Aluminum, adjustable |
| Saddle | Selle Bassano |
| Seatpost | Polygon, suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Bontrager Comp I, Rear: Bontrager Comp II |
|---|---|
| Rims | Bontrager Fairlane, 32-hole |
| Spokes | Stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 35c Continental City Grip |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
