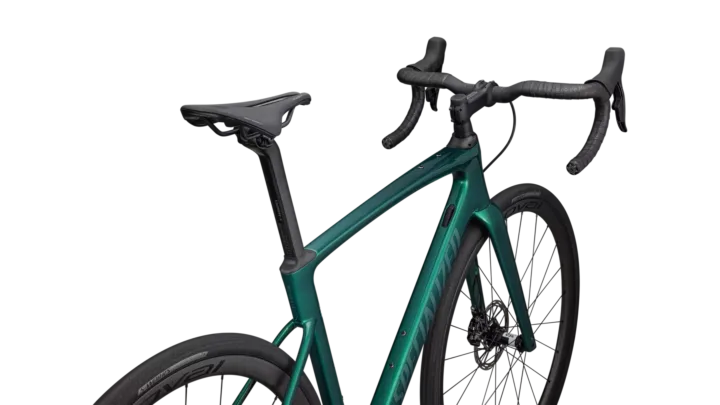

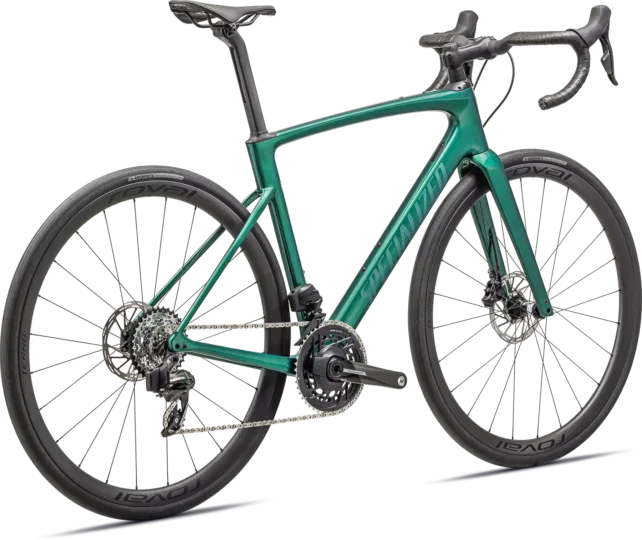

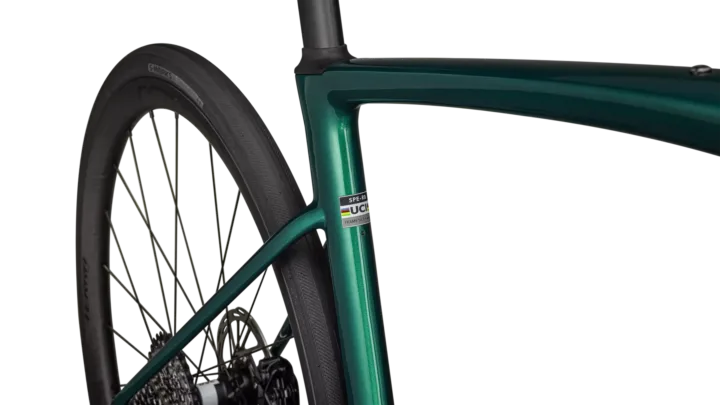

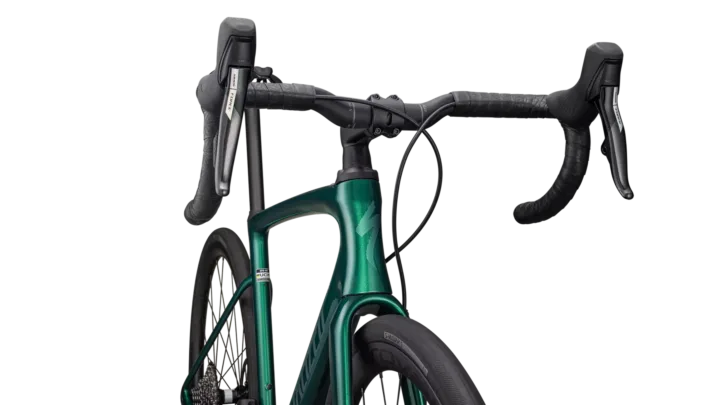

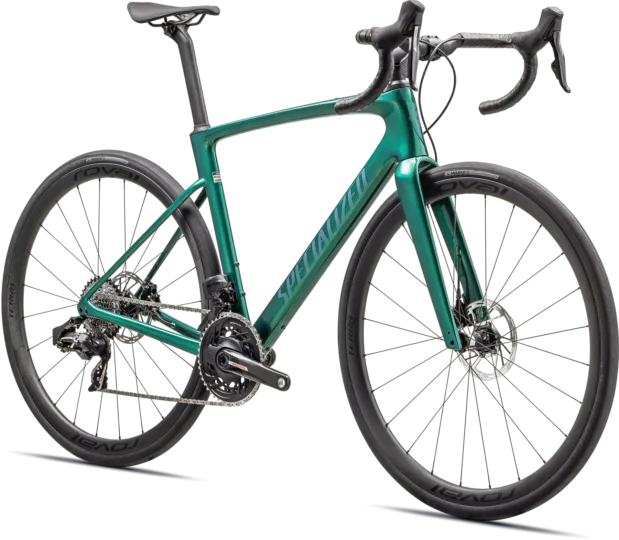

2024 Specialized Roubaix SL8 Pro

Original specifications: 8.1kg (17 lb, 13.7 oz) published weight · geometry for 7 published sizes.

Share owner experience

Selling this bike? Get the spec link and selling options

At a glance

Model year
2024
Category
Road
Original MSRP
$7,499.99
Sizes
44, 49, 52, 54, 56, 58, 61
Colors
Gloss Metallic Pine
Weight
8.1kg (17 lb, 13.7 oz)
Geometry
7 manufacturer sizes
In this record
19 specifications · 6 archived images · original MSRP · geometry
Archive ID
900003955
Campaign
Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

7 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

44495254565861

Published colors

Gloss Metallic Pine

Frameset

Frame ConstructionFACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Frame MaterialCarbon Fiber
ForkFuture Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Fork MaterialCarbon Fiber

Drivetrain

ShiftersSRAM Force eTAP AXS, 12-speed
Front DerailleurSRAM Force eTAP AXS, 12-speed
Rear DerailleurSRAM Force eTAP AXS, 12-speed
CranksetSRAM Force AXS w/Power, 12-speed; chainrings: 46/33T
Bottom BracketSRAM DUB BSA
CassetteSRAM XG 1270, 10-36T
ChainSRAM Force, 12-Speed

Brakes

Brakes(F) SRAM Force Hydraulic Disc, 160mm / (R) SRAM Force Hydraulic Disc, 160mm

Cockpit & Contact Points

HandlebarS-Works Carbon Hover Drop 125mm, Reach 75mm, w/Di2 hole
StemFuture Stem Pro
SaddleBody Geometry Power Pro, hollow titanium rails
SeatpostS-Works Pave Seat post

Wheels & Tires

Wheels(F) Roval Terra CL II, 25mm internal width, 32mm depth, 21h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Aerolite spokes / (R) Roval Terra CL II, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Aerolite spokes
Front TireS-Works Mondo 2BR, 700x32c
Rear TireS-Works Mondo 2BR, 700x32c

Geometry

7 sizes · 20 measurements

Frame measurements by size.

All geometry measurements7 sizes · 20 measurements
Measurement44495254565861
Seat tube365 mm410 mm446 mm465 mm485 mm505 mm545 mm
Effective top tube503 mm523 mm534 mm550 mm569 mm584 mm600 mm
Head tube90 mm90 mm105 mm122 mm140 mm168 mm202 mm
Head-tube angle69.3°70.8°71.5°72.3°73°73°73.5°
Seat-tube angle75°74°74°74°73.5°73.5°73.5°
Chainstay / rear center418 mm418 mm418 mm420 mm420 mm423 mm423 mm
Wheelbase994 mm992 mm998 mm1005 mm1012 mm1031 mm1042 mm
Bottom-bracket drop80 mm80 mm80 mm78 mm78 mm78 mm78 mm
Bottom-bracket height269 mm269 mm269 mm270 mm270 mm271 mm271 mm
Reach353 mm363 mm370 mm381 mm389 mm397 mm403 mm
Stack543 mm549 mm566 mm585 mm605 mm630 mm665 mm
Standover height686 mm719 mm747 mm766 mm787 mm809 mm847 mm
Fork offset / rake52 mm52 mm52 mm47 mm47 mm47 mm47 mm
Front center589 mm587 mm593 mm598 mm604 mm620 mm631 mm
Trail76 mm66 mm62 mm61 mm57 mm57 mm54 mm
Fork length / axle-to-crown375 mm375 mm375 mm375 mm375 mm375 mm375 mm
Seatpost length380 mm380 mm380 mm380 mm380 mm450 mm450 mm
Crank length165 mm165 mm170 mm172.5 mm172.5 mm175 mm175 mm
Stem length70 mm80 mm90 mm100 mm100 mm110 mm110 mm
Handlebar width360 mm380 mm400 mm420 mm420 mm440 mm440 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes46/33T · 10–36T · 12-speed
Lowest0.92:1 Highest4.60:1 Total range502%
Estimated speed At 90 RPM Lowest gear6.6 mph Highest gear33.3 mph

Rear tire: 700C×32.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
SRAM Force, 12-Speed Search: SRAM Force, 12-Speed chain
Retailer offers · Affiliate links
Cassette · Original
SRAM XG 1270, 10-36T
Front tire · Original
S-Works Mondo 2BR, 700x32c
Retailer offers · Affiliate links
Challenge Strada Pro Tubeless Tire Tan, 700x32

Challenge Strada Pro Tubeless Tire Tan, 700x32

700x32

Replacement option · verify fit

More parts (5)
Bottom bracket · Original
SRAM DUB BSA
Crankset · Original
SRAM Force AXS w/Power, 12-speed; chainrings: 46/33T
Front derailleur · Original
SRAM Force eTAP AXS, 12-speed Search: SRAM Force 12-speed electronic front derailleur
Rear derailleur · Original
SRAM Force eTAP AXS, 12-speed Search: SRAM Force 12-speed electronic rear derailleur
Retailer offers · Affiliate links
Shifters · Original
SRAM Force eTAP AXS, 12-speed Search: SRAM Force 12-speed electronic shifter

Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.

Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
0 of 19 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2024 Specialized Roubaix SL8 Pro · Road · Published sizes: 44, 49, 52, 54, 56, 58, 61

Archived: Frame: FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc · Fork: Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc · Carbon Fiber

Archived: Shifters: SRAM Force eTAP AXS, 12-speed · Front derailleur: SRAM Force eTAP AXS, 12-speed · Rear derailleur: SRAM Force eTAP AXS, 12-speed · Crankset: SRAM Force AXS w/Power, 12-speed; chainrings: 46/33T · Bottom bracket: SRAM DUB BSA · Cassette: SRAM XG 1270, 10-36T · Chain: SRAM Force, 12-Speed

Archived: Brakes: (F) SRAM Force Hydraulic Disc, 160mm / (R) SRAM Force Hydraulic Disc, 160mm

Archived: Front tire: S-Works Mondo 2BR, 700x32c · Rear tire: S-Works Mondo 2BR, 700x32c

Controls and contact points

Archived: Handlebar: S-Works Carbon Hover Drop 125mm, Reach 75mm, w/Di2 hole · Stem: Future Stem Pro · Seatpost: S-Works Pave Seat post · Saddle: Body Geometry Power Pro, hollow titanium rails
