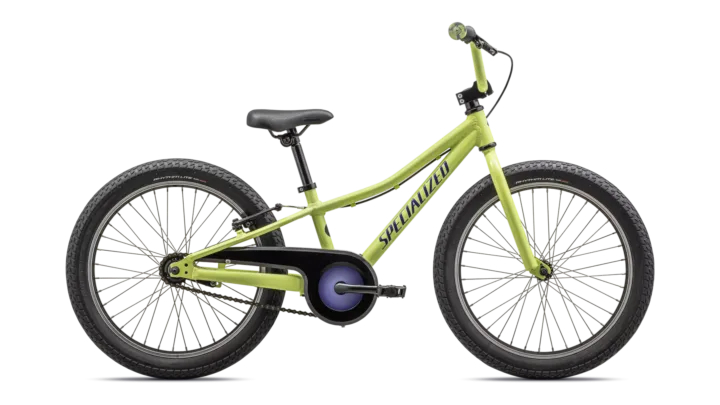

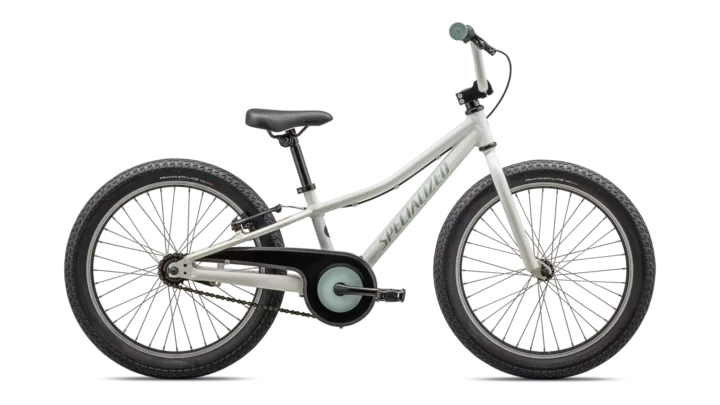

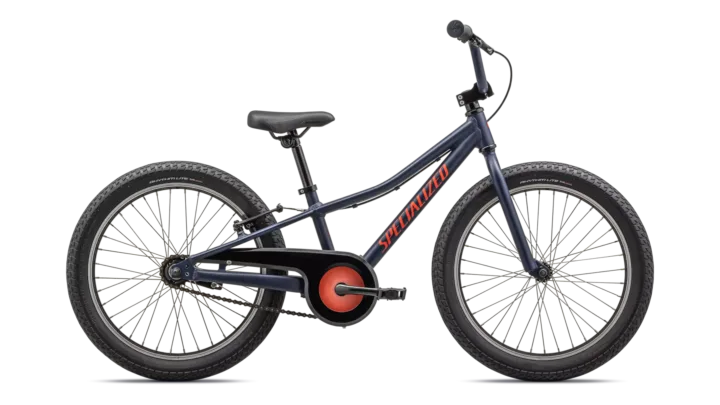

2023 Specialized Riprock Coaster 20

Archived: 2023 Specialized Riprock Coaster 20 · Youth · Published sizes: 20

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Specialized A1 Premium Aluminum · Fork: Hi-Ten steel · Steel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Crankset: Hi-Ten steel, 114mm; chainrings: Steel, 36T · Bottom bracket: Feimin FP-B701, 68MM · Chain: KMC Z510, single-speed, anti-drop, 1/2"x1/8"

• Check chain tension and chainline, rotate the drivetrain through a full revolution and confirm the rear axle or tensioning hardware cannot slip.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (R) V-brake w/ tool-less reach adjust brake lever

• Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: 20" alloy, 16mm depth, 21mm internal width · Hubs: (F) Steel, bolt-on, 100mm spacing, loose ball bearings, 36h / (R) Coaster brake, bolt-on, loose ball bearings, 110mm spacing, 18T cog, 36h · Front tire: Rhythm Lite, 30 TPI, wire bead, 20x2.3" · Rear tire: Rhythm Lite, 30 TPI, wire bead, 20x2.3"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: BMX, steel, 10-degree backsweep, 4-degree upsweep, 130mm rise, 560mm width, 22.2mm · Stem: Die Cast Aluminum, 37mm length, 10 degree, 22.2 clamp diameter · Seatpost: Steel, 25.4mm · Saddle: Specialized Kids' Henge · Pedals: Nylon platform w/ reflectors

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
