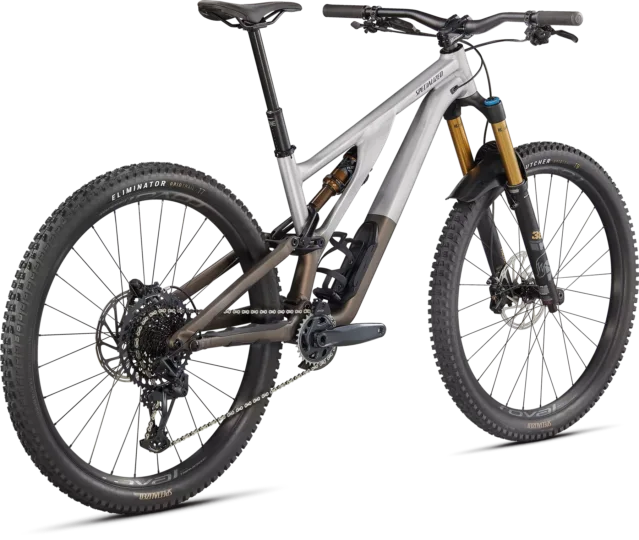

2022 Specialized Stumpjumper EVO Elite Alloy

Archived: 2022 Specialized Stumpjumper EVO Elite Alloy · Mountain · Published sizes: S1, S2, S3, S4, S5, S6

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Aluminum · Fork: FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel · Rear shock: FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1:210x50mm, S2-S6:210x55mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SRAM GX, trigger, 12-speed · Rear derailleur: SRAM GX Eagle, 12-speed · Crankset: SRAM GX Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm; chainrings: Alloy, 30T · Bottom bracket: SRAM DUB, BSA 73mm, Threaded · Cassette: Sram XG-1275, 12-speed, 10-52t · Chain: SRAM GX Eagle, 12-speed

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm / (R) SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready · Hubs: (F) Roval, sealed cartridge bearings, 15x110mm spacing, 28h / (R) Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h · Front tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" · Rear tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.3"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width · Stem: Deity, 35.0mm · Seatpost: OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm) · Saddle: Bridge Comp, Hollow Cr-mo rails 155/143

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
