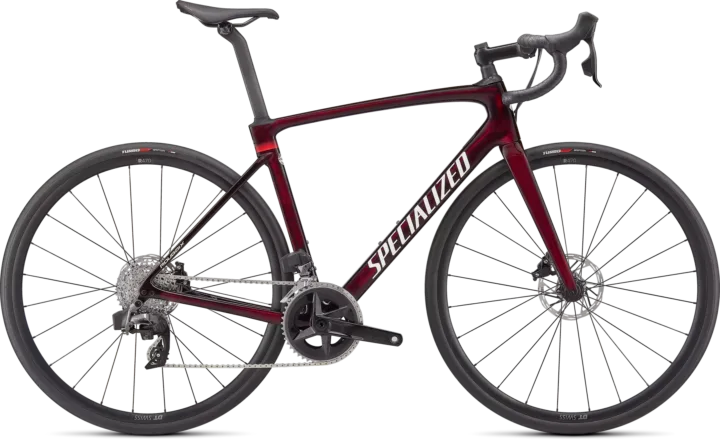

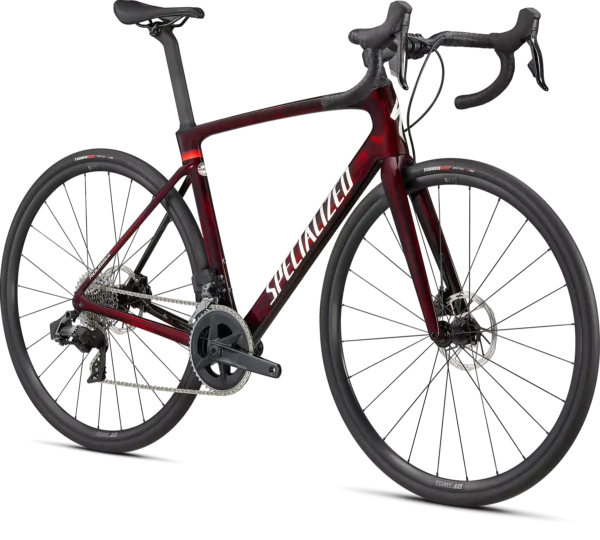

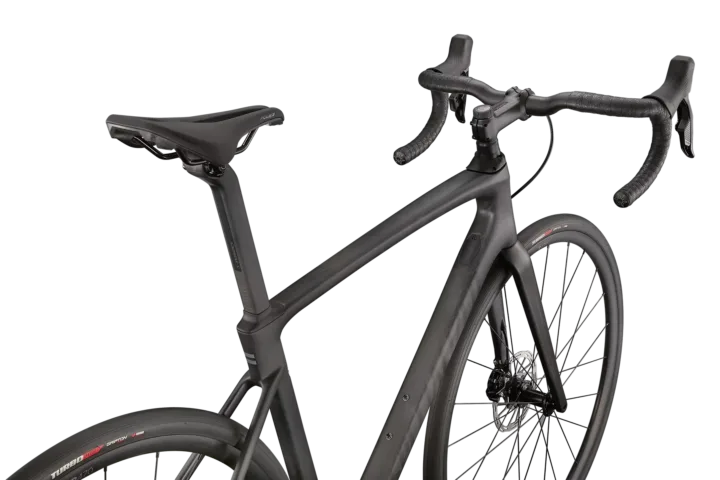

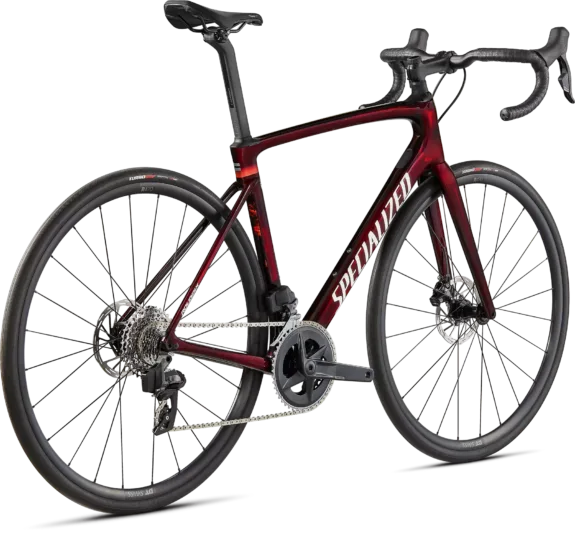

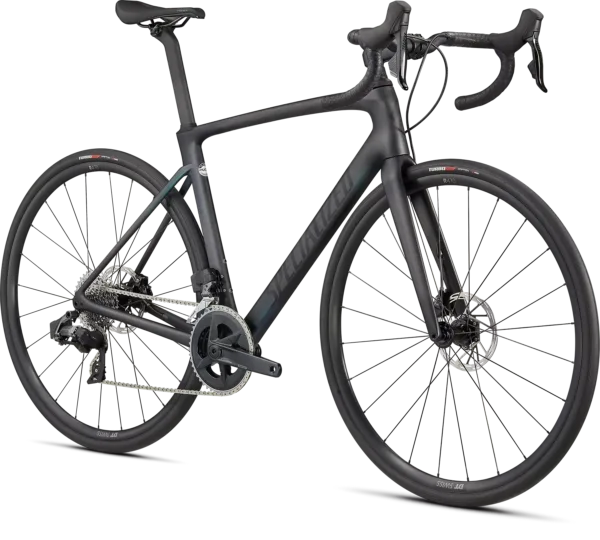

2022 Specialized Roubaix Comp

Original specifications: geometry for 8 published sizes.

Share owner experience

Selling this bike? Get the spec link and selling options

At a glance

Model year
2022
Category
Road
Original MSRP
From $5,199.99
Sizes
44, 49, 52, 54, 56, 58, 61, 64
Colors
Satin Carbon Oil Gold Fade, Gloss Red Tint Carbon Metallic White Silver
Geometry
8 manufacturer sizes
In this record
19 specifications · 8 archived images · original MSRP · geometry
Archive ID
900004058

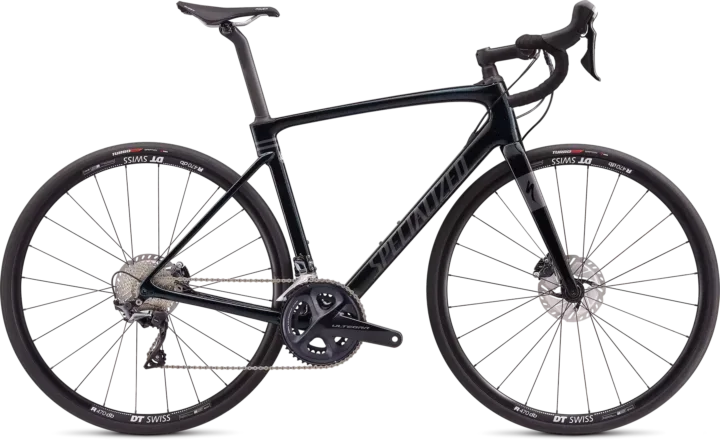

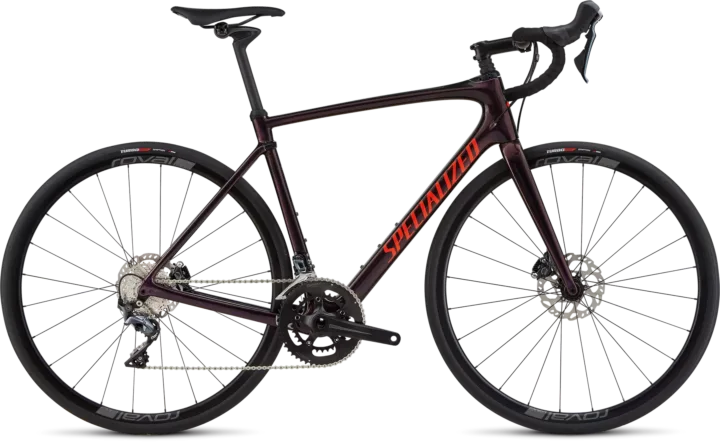

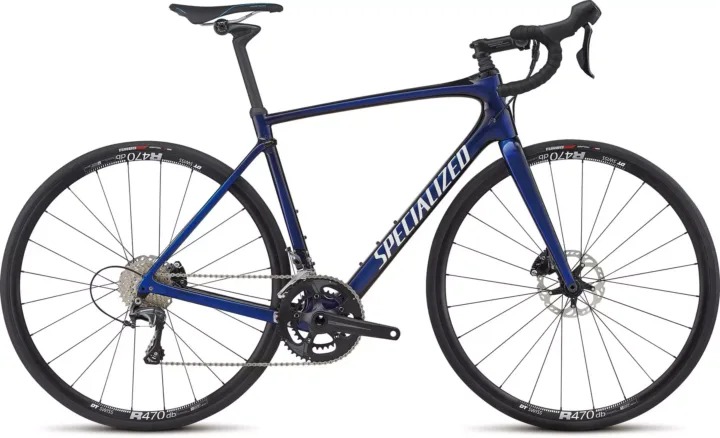

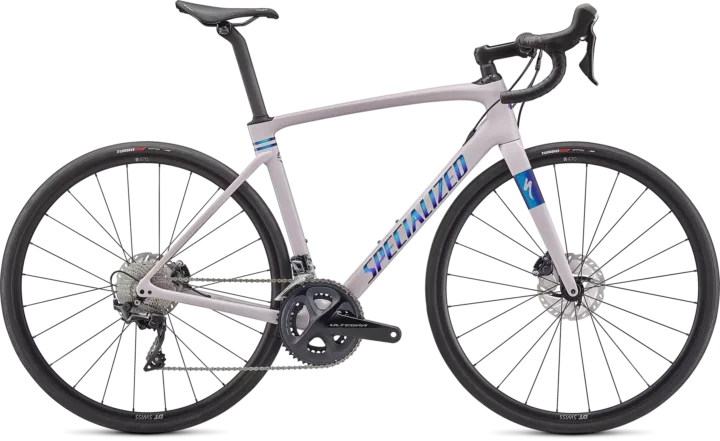

Model history 4 other years
Campaign
Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

8 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

4449525456586164

Published colors

Satin Carbon Oil Gold FadeGloss Red Tint Carbon Metallic White Silver

Frameset

Frame ConstructionFACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Frame MaterialCarbon Fiber
ForkFuture Shock 2.0 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc

Drivetrain

ShiftersSRAM Rival eTap AXS
Front DerailleurSRAM Rival eTAP AXS, braze-on
Rear DerailleurSRAM Rival eTap AXS, 12-speed
CranksetSRAM Rival; chainrings: 46/33T
Bottom BracketSRAM DUB BSA 68
CassetteSRAM Rival, 12-speed, 10-36t
ChainSRAM Rival 12-speed

Brakes

Brakes(F) SRAM Rival eTAP AXS, hydraulic disc / (R) SRAM Rival eTAP AXS, hydraulic disc

Cockpit & Contact Points

HandlebarSpecialized Hover Comp, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole
StemFuture Stem, Pro
SaddleBody Geometry Power Comp, steel rails
SeatpostS-Works Pave

Wheels & Tires

Hubs(F) Tubeless Valve
Wheels(F) DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples. / (R) DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, alloy freehub body, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Front TireSpecialized Turbo Pro, 700x30mm
Rear TireSpecialized Turbo Pro, 700x30mm

Geometry

8 sizes · 20 measurements

Frame measurements by size.

All geometry measurements8 sizes · 20 measurements
Measurement4449525456586164
Seat tube365 mm410 mm446 mm465 mm485 mm505 mm547 mm568 mm
Effective top tube512 mm525 mm533 mm545 mm563 mm579 mm595 mm609 mm
Head tube90 mm100 mm112 mm125 mm143 mm170 mm205 mm215 mm
Head-tube angle70°71.5°72°72.75°73.5°73.5°74°74°
Seat-tube angle74°74°74°74°73.5°73.5°73.5°73°
Chainstay / rear center413 mm413 mm413 mm415 mm415 mm418 mm418 mm418 mm
Wheelbase981 mm982 mm986 mm988 mm995 mm1014 mm1024 mm1033 mm
Bottom-bracket drop77.5 mm77.5 mm77.5 mm76 mm76 mm74.5 mm74.5 mm74.5 mm
Bottom-bracket height265 mm265 mm265 mm266 mm266 mm268 mm268 mm268 mm
Reach353 mm363 mm368 mm376 mm384 mm392 mm398 mm404 mm
Stack540 mm555 mm570 mm585 mm605 mm630 mm665 mm675 mm
Standover height682 mm715 mm743 mm762 mm783 mm805 mm844 mm862 mm
Fork offset / rake50 mm50 mm50 mm44 mm44 mm44 mm44 mm44 mm
Front center580 mm581 mm586 mm585 mm592 mm607 mm618 mm626 mm
Trail71 mm62 mm59 mm61 mm55 mm55 mm52 mm52 mm
Fork length / axle-to-crown370 mm370 mm370 mm370 mm370 mm370 mm370 mm370 mm
Seatpost length380 mm380 mm380 mm380 mm380 mm450 mm450 mm450 mm
Crank length165 mm165 mm170 mm172.5 mm172.5 mm175 mm175 mm175 mm
Stem length70 mm80 mm90 mm100 mm100 mm110 mm110 mm120 mm
Handlebar width360 mm380 mm400 mm420 mm420 mm440 mm440 mm440 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes46/33T · 10–36T · 12-speed
Lowest0.92:1 Highest4.60:1 Total range502%
Estimated speed At 90 RPM Lowest gear6.6 mph Highest gear33.1 mph

Rear tire: 700C×30.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
SRAM Rival 12-speed Search: SRAM Rival 12-speed chain
Cassette · Original
SRAM Rival, 12-speed, 10-36t Search: SRAM Rival, 12-speed, 10-36t cassette
Retailer offers · Affiliate links
Front tire · Original
Specialized Turbo Pro, 700x30mm
Retailer offers · Affiliate links
More parts (6)
Bottom bracket · Original
SRAM DUB BSA 68
Crankset · Original
SRAM Rival; chainrings: 46/33T
Front derailleur · Original
SRAM Rival eTAP AXS, braze-on Search: SRAM Rival 12-speed electronic front derailleur

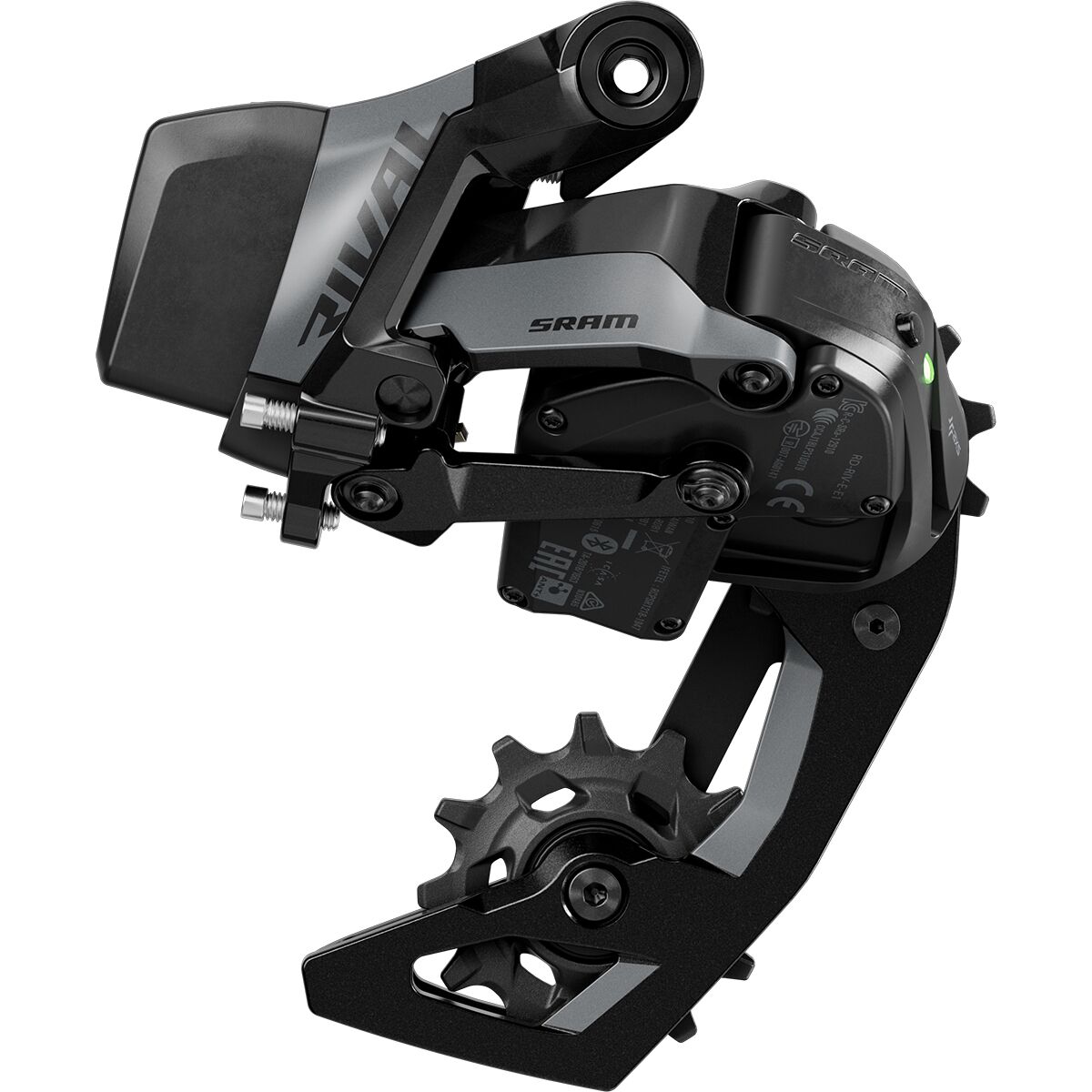

Rear derailleur · Original
SRAM Rival eTap AXS, 12-speed Search: SRAM Rival 12-speed electronic rear derailleur
Retailer offers · Affiliate links
Shifters · Original
SRAM Rival eTap AXS Search: SRAM Rival 12-speed electronic shifter
Handlebar · Original
Specialized Hover Comp, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole

Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.

Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
0 of 20 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2022 Specialized Roubaix Comp · Road · Published sizes: 44, 49, 52, 54, 56, 58, 61, 64

Archived: Frame: FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc · Fork: Future Shock 2.0 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc

Archived: Shifters: SRAM Rival eTap AXS · Front derailleur: SRAM Rival eTAP AXS, braze-on · Rear derailleur: SRAM Rival eTap AXS, 12-speed · Crankset: SRAM Rival; chainrings: 46/33T · Bottom bracket: SRAM DUB BSA 68 · Cassette: SRAM Rival, 12-speed, 10-36t · Chain: SRAM Rival 12-speed

Archived: Brakes: (F) SRAM Rival eTAP AXS, hydraulic disc / (R) SRAM Rival eTAP AXS, hydraulic disc

Archived: Hubs: (F) Tubeless Valve · Front tire: Specialized Turbo Pro, 700x30mm · Rear tire: Specialized Turbo Pro, 700x30mm

Controls and contact points

Archived: Handlebar: Specialized Hover Comp, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole · Stem: Future Stem, Pro · Seatpost: S-Works Pave · Saddle: Body Geometry Power Comp, steel rails
