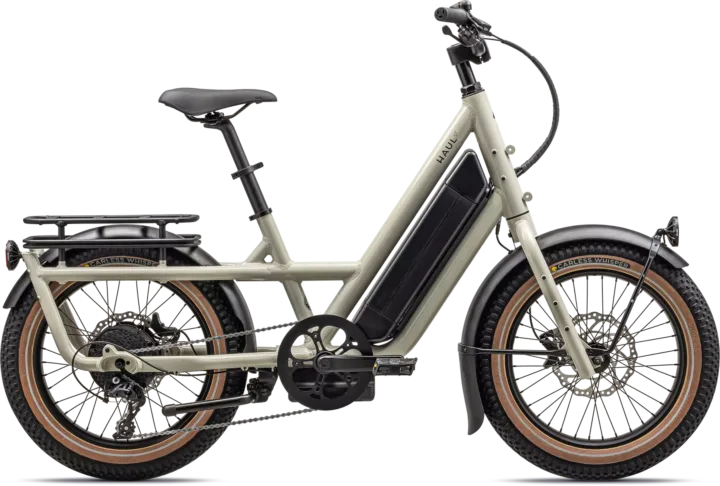

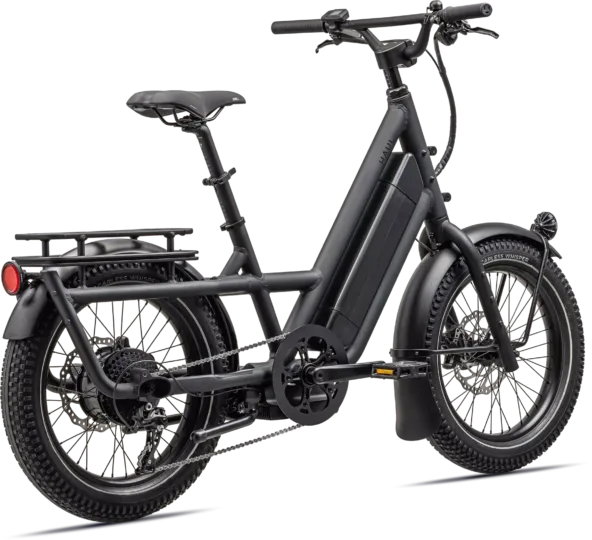

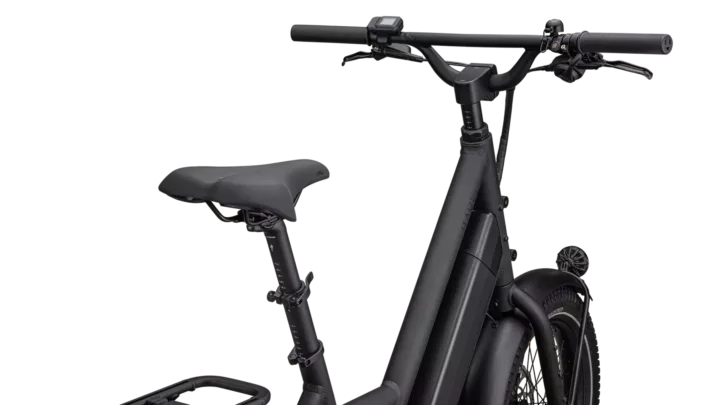

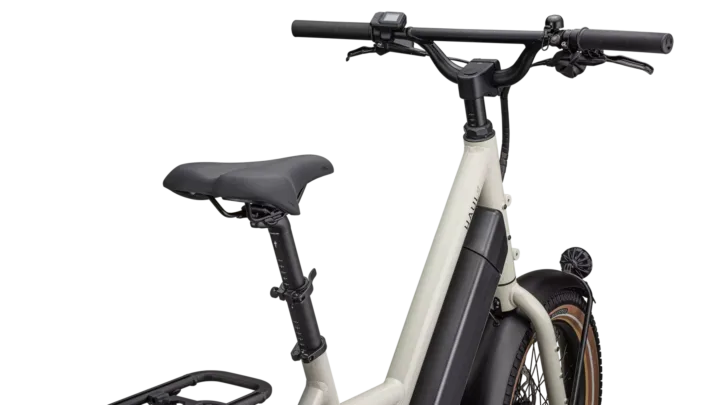

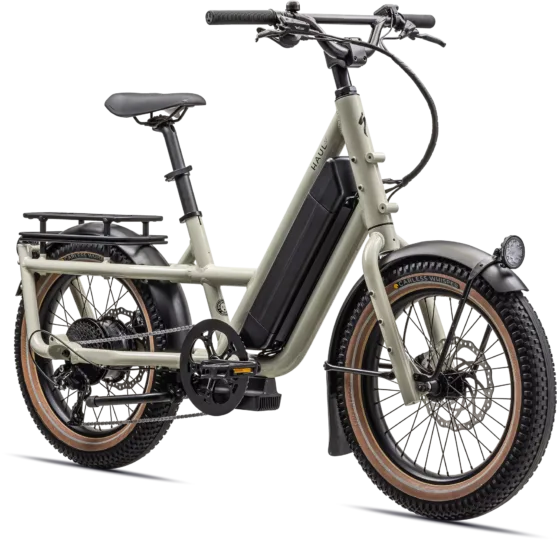

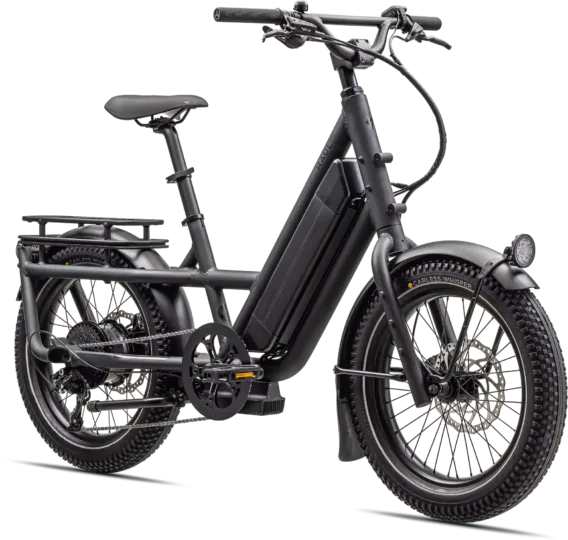

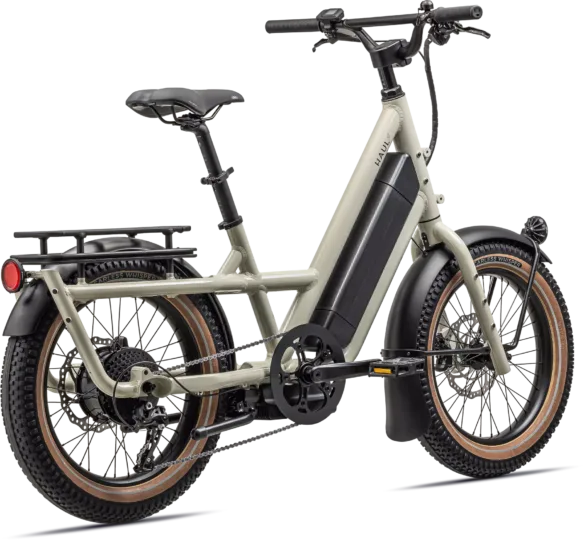

2022 Specialized Haul ST

Archived: 2022 Specialized Haul ST · Electric-assist

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.

Archived: Frame: Haul ST Premium Aluminum, Post mount disc brake, fender/rack mounts · Fork: 2022 Globe Fork

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: microSHIFT Advent, 9-speed · Rear derailleur: microSHIFT, short cage, 9-speed · Crankset: Forged alloy arm, alloy chainring guard, 160mm · Bottom bracket: Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor · Cassette: SunRace, 9-Speed, 11-36t · Chain: KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor / (R) Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: 20'', double-wall alloy, 50X20mm, 36h · Hubs: (F) Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h · Front tire: Carless Whisper Reflect, 20X3.5 · Rear tire: Carless Whisper Reflect, 20X3.5

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width · Stem: Globe, cargo 1.5X150mm quill stem · Seatpost: Double Extension Seatpost +/- 330mm, 34.9mm, 585mm, 20mm Offset · Saddle: Specialized Body Geometry Comfort Gel · Pedals: Specialized Flat pedal

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Archived: Motor: Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h · Battery: Globe external battery, 772Wh, IPX7 · Display: Globe handlebar remote HMI, State of charge, Ride Mode display, USB plug, BLE · Charger: Globe charger, 48V System w/ Globe system charger plug, AC power cord included

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
