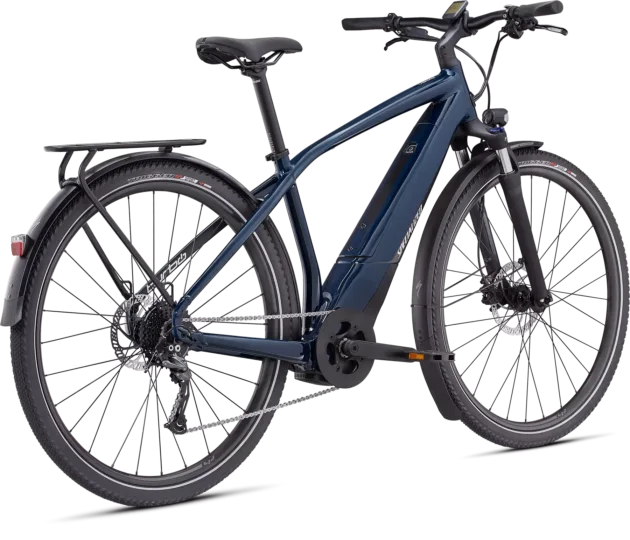

2021 Specialized Turbo Vado 3.0

Archived: 2021 Specialized Turbo Vado 3.0 · Electric-assist · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds · Fork: SR SunTour MOBIE30, custom crown, steel steerer, 9mm open dropout, 50mm of travel · Steel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: SR SunTour MOBIE30, custom crown, steel steerer, 9mm open dropout, 50mm of travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano Alivio, 9-speed w/ Optical Gear Display · Rear derailleur: Shimano Alivio, SGS, 9-speed · Crankset: Custom alloy forged crankarms; chainrings: 48/32 w/ chainguard · Cassette: Shimano CS-HG200, 9-speed, 11-36t · Chain: KMC e9T, 9-speed w/ Missing Link™

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Tektro HD-T275, hydraulic disc, 180mm / (R) Tektro HD-T275, hydraulic disc, 160mm

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: 700C disc, double-wall alloy, pinned, no eyelets · Hubs: (F) Specialized 6-bolt disc, ball bearings, 9x100mm spacing, 32h / (R) Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h · Front tire: Trigger Sport Reflect, 700x47c · Rear tire: Trigger Sport Reflect, 700x47c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm · Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp · Seatpost: Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm · Saddle: Bridge Sport, Steel rails, 155mm · Pedals: Specialized Commuter w/ grip tape & reflectors

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Archived: Motor: Specialized 1.2 E, custom Rx Street-tuned motor, 250W nominal · Battery: Specialized U1-460, On/Off button, state of charge display, 460Wh · Display: Specialized TCD-W w/ handlebar remote & built-in anti-theft feature, Bluetooth® connectivity, 5 available display pages · Charger: Custom Specialized 42V2A Charger w/ Rosenberger plug, AC power cord included

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
