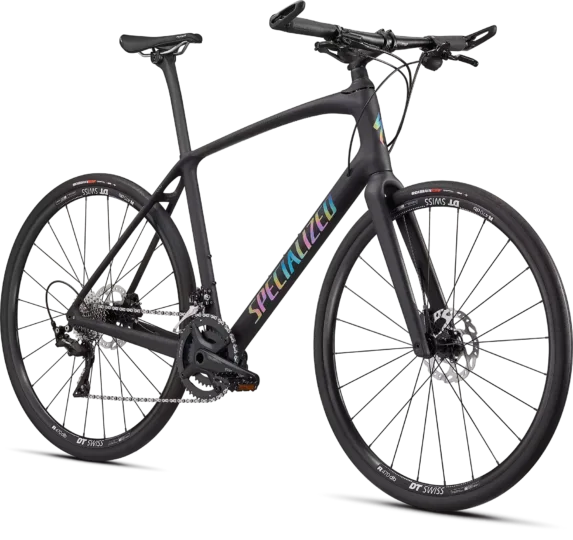

2021 Specialized Sirrus 6.0
Original specifications: geometry for 6 published sizes.
Selling this bike? Get the spec link and selling options
At a glance
- Model year
- 2021
- Category
- Hybrid
- Original MSRP
- $3,250.00
- Sizes
- XS, S, M, L, XL, XXL
- Colors
- Gloss Green Tint / Satin Black Reflective, Satin Carbon / Black Rainbow Reflective
- Geometry
- 6 manufacturer sizes
- In this record
- 23 specifications · 4 archived images · original MSRP · geometry
- Archive ID
- 900004300
Model history 2 other years
Original buildCarbon Fiber
Frameset
| Frame Construction | Specialized FACT 9r carbon, Fitness Geometry, 12x142mm thru-axle, internal cable routing, flat-mount disc, Plug + Play fender mounts |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Carbon Monocoque, 12x100mm thru-axle, flat-mount disc, Future Shock 1.5 |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | MicroSHIFT, 11-Speed |
|---|---|
| Front Derailleur | Shimano 105 R7000, braze-on |
| Rear Derailleur | Shimano 105 R7000 GS, medium cage, 11-speed |
| Crankset | Praxis Alba M30 X; chainrings: 48/32T |
| Bottom Bracket | Praxis 68mm BSA |
| BB Shell Width | 68 mm |
| Cassette | Shimano 105, 11-speed, 11-32t |
| Chain | KMC X11, 11-speed w/ Missing Link™ |
| Pedals | Platform, alloy |
Brakes
| Brakes | (F) Shimano MT201, hydraulic disc, resin pads, flat-mount, 160mm / (R) Shimano MT201, hydraulic disc, resin pads, flat-mount, 160mm |
|---|
Cockpit & Contact Points
| Handlebar | Double-butted alloy, 9-degree backsweep, 31.8mm |
|---|---|
| Stem | Future Stem, Comp |
| Saddle | Body Geometry Power Comp, Cromoly rails |
| Seatpost | S-Works FACT Carbon 27.2mm, 20mm offset |
Wheels & Tires
| Hubs | (F) Specialized front hub disc, sealed cartridge bearings, 12x100mm thru-axle, 24h / (R) Specialized, sealed cartridge bearings, 12x142mm thru-axle, 24h |
|---|---|
| Rims | DT Swiss R470, 23mm depth, 20mm internal width, disc brake, 24h |
| Spokes | Stainless, 14g |
| Front Tire | Roubaix Pro 2BR, 700x30/32 |
| Rear Tire | Roubaix Pro 2BR, 700x30/32 |
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 20 measurements
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube | 355 mm | 416 mm | 453 mm | 483 mm | 533 mm | 563 mm |
| Effective top tube | 532 mm | 554 mm | 573 mm | 580 mm | 603 mm | 628 mm |
| Head tube | 125 mm | 143 mm | 169 mm | 186 mm | 223 mm | 246 mm |
| Head-tube angle | 70° | 70° | 71° | 71.5° | 72° | 72° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1027 mm | 1050 mm | 1060 mm | 1063 mm | 1082 mm | 1101 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom-bracket height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Reach | 355 mm | 371 mm | 384 mm | 386 mm | 398 mm | 410 mm |
| Stack | 585 mm | 602 mm | 631 mm | 649 mm | 687 mm | 709 mm |
| Standover height | 714 mm | 756 mm | 788 mm | 813 mm | 849 mm | 875 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Front center | 602 mm | 625 mm | 635 mm | 637 mm | 656 mm | 675 mm |
| Trail | 71 mm | 71 mm | 65 mm | 62 mm | 58 mm | 58 mm |
| Fork length / axle-to-crown | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Seatpost length | 300 mm | 300 mm | 350 mm | 350 mm | 400 mm | 400 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm |
| Stem length | 70 mm | 70 mm | 80 mm | 90 mm | 100 mm | 110 mm |
| Handlebar width | 580 mm | 580 mm | 600 mm | 600 mm | 620 mm | 620 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Parts & serviceability
Find replacement parts

KMC X11SL-TI Gold Chain One Color, 116 Links
Replacement option
More parts (5)Fewer parts

Shimano 105 FD-R7000 Front Derailleur

Zipp Service Course B2 Seatpost Black/20mm Setback, 27.2x350mm
Replacement option
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2021 Specialized Sirrus 6.0 · Hybrid · Published sizes: XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Specialized FACT 9r carbon, Fitness Geometry, 12x142mm thru-axle, internal cable routing, flat-mount disc, Plug + Play fender mounts · Fork: Carbon Monocoque, 12x100mm thru-axle, flat-mount disc, Future Shock 1.5 · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: MicroSHIFT, 11-Speed · Front derailleur: Shimano 105 R7000, braze-on · Rear derailleur: Shimano 105 R7000 GS, medium cage, 11-speed · Crankset: Praxis Alba M30 X; chainrings: 48/32T · Bottom bracket: Praxis 68mm BSA · Cassette: Shimano 105, 11-speed, 11-32t · Chain: KMC X11, 11-speed w/ Missing Link™
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano MT201, hydraulic disc, resin pads, flat-mount, 160mm / (R) Shimano MT201, hydraulic disc, resin pads, flat-mount, 160mm
Wheels and tires
Check wheels and tires →Archived: Rims: DT Swiss R470, 23mm depth, 20mm internal width, disc brake, 24h · Hubs: (F) Specialized front hub disc, sealed cartridge bearings, 12x100mm thru-axle, 24h / (R) Specialized, sealed cartridge bearings, 12x142mm thru-axle, 24h · Front tire: Roubaix Pro 2BR, 700x30/32 · Rear tire: Roubaix Pro 2BR, 700x30/32
Controls and contact points
Archived: Handlebar: Double-butted alloy, 9-degree backsweep, 31.8mm · Stem: Future Stem, Comp · Seatpost: S-Works FACT Carbon 27.2mm, 20mm offset · Saddle: Body Geometry Power Comp, Cromoly rails · Pedals: Platform, alloy
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery4 images
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
