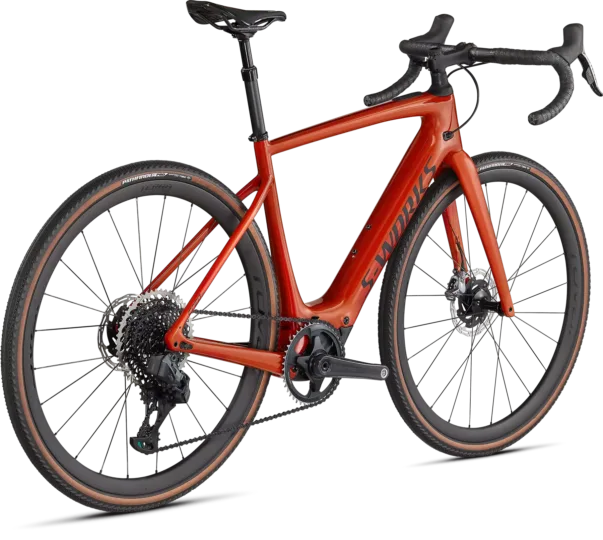

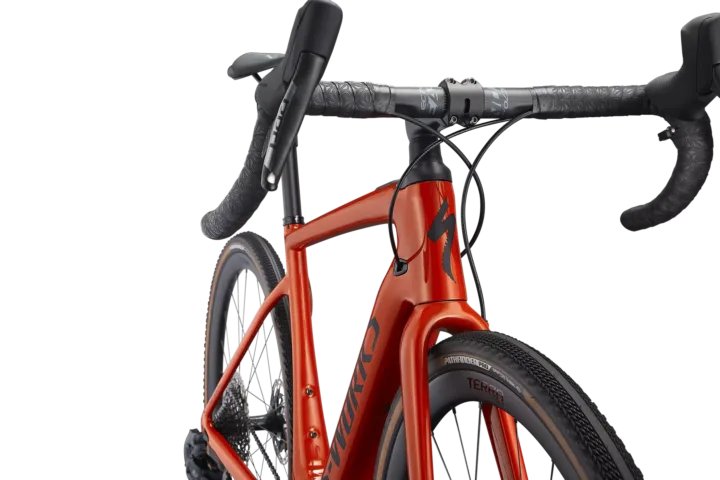

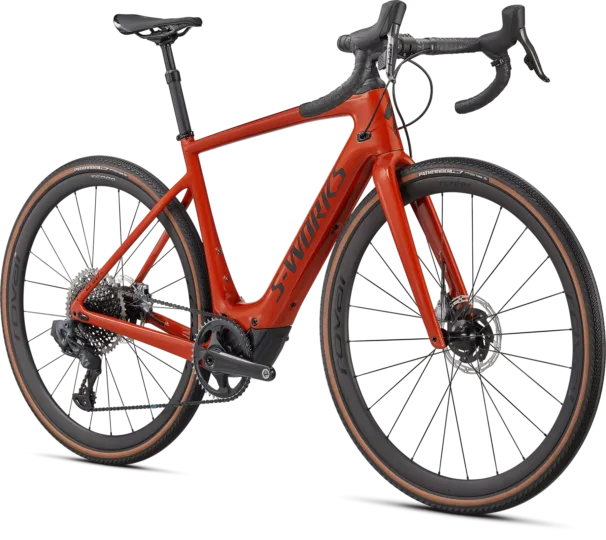

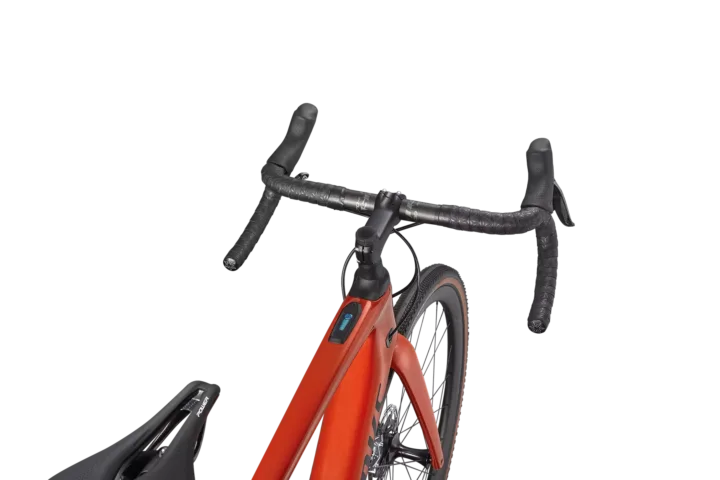

2021 Specialized S-Works Turbo Creo SL EVO

Archived: 2021 Specialized S-Works Turbo Creo SL EVO · Electric-assist · Published sizes: XS, S, M, L, XL, XXL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm · Fork: Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: SRAM RED eTap AXS · Rear derailleur: SRAM XX1 Eagle AXS · Crankset: Praxis Carbon/M30 Spindle Interface; chainrings: SRAM X-SYNC, 44T · Cassette: SRAM XG-1295 Eagle, 12-speed, 10-50t · Chain: SRAM XX1 Eagle, 12-speed

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) SRAM RED eTAP AXS, hydraulic disc / (R) SRAM RED eTAP AXS, hydraulic disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Front tire: Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c · Rear tire: Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: Easton EC70 AX Carbon, 16-degree flare · Stem: S-Works Future Stem w/ Integrated Computer mount · Seatpost: Easton EA70AX Dropper seat post · Saddle: Body Geometry S-Works Power, carbon fiber rails, carbon fiber base

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

Archived: Motor: Specialized SL 1.1, custom lightweight motor · Battery: Specialized SL1-320, fully integrated, 320Wh · Display: Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth® · Charger: Custom charger, 48V System w/ SL system charger plug

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
