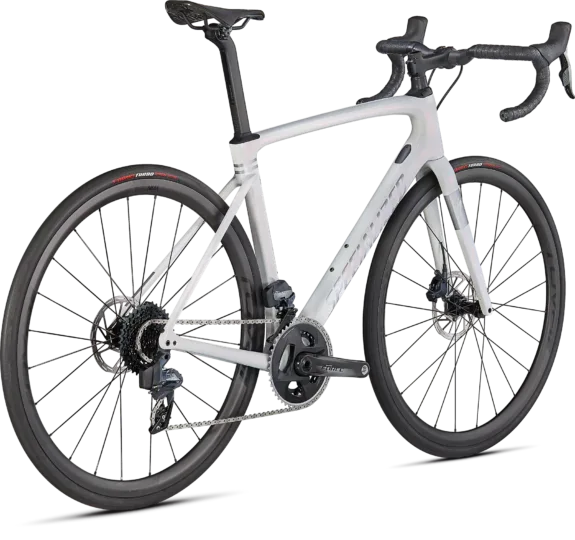

2021 Specialized Roubaix Pro

Original specifications: geometry for 7 published sizes.

Share owner experience

Selling this bike? Get the spec link and selling options

At a glance

Model year
2021
Category
Road
Original MSRP
$7,500.00
Sizes
44, 49, 52, 54, 56, 58, 61, 64
Colors
Abalone/Spectraflair/Flake Silver
Geometry
7 manufacturer sizes
In this record
18 specifications · 6 archived images · original MSRP · geometry
Archive ID
900003915
Model history 5 other years
Campaign
Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

8 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

4449525456586164

Published colors

Abalone/Spectraflair/Flake Silver

Frameset

Frame ConstructionFACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Frame MaterialCarbon Fiber
ForkFuture Shock 2.0 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc

Drivetrain

ShiftersSRAM Force eTap AXS
Front DerailleurSRAM Force eTAP AXS, braze-on
Rear DerailleurSRAM Force eTAP AXS, 12-speed
CranksetSRAM FC Force DUB, 12-speed; chainrings: 46/33
Bottom BracketSRAM DUB BSA 68
CassetteSRAM Force, XG-1270 D1, 12-speed, 10-36t
ChainSRAM CN Force 12-speed

Brakes

Brakes(F) SRAM Force eTAP, hydraulic disc / (R) SRAM Force eTAP, hydraulic disc

Cockpit & Contact Points

HandlebarS-Works Carbon Hover Drop 125mm, Reach 75mm, w/Di2 hole
StemFuture Stem, Pro w/Integrated Computer Mount
SaddleBody Geometry Power Pro, hollow titanium rails
SeatpostS-Works Pave

Wheels & Tires

Wheels(F) Roval Alpinist CL, 21mm internal width carbon rim, 33mm depth, Win Tunnel Engineered, DT for Roval 350 hub, DT Swiss Aerolite spokes / (R) Roval Alpinist CL, 21mm internal width carbon rim, 33mm depth, Win Tunnel Engineered, DT for Roval 350 hub, DT Swiss Aerolite spokes
Front TireS-Works Turbo, 700x28mm
Rear TireS-Works Turbo, 700x28mm

Geometry

7 sizes · 20 measurements

Frame measurements by size.

All geometry measurements7 sizes · 20 measurements
Measurement44495254565861
Seat tube365 mm410 mm446 mm465 mm485 mm505 mm547 mm
Effective top tube512 mm525 mm533 mm545 mm563 mm579 mm595 mm
Head tube90 mm100 mm112 mm125 mm143 mm170 mm205 mm
Head-tube angle70°71.5°72°72.75°73.5°73.5°74°
Seat-tube angle74°74°74°74°73.5°73.5°73.5°
Chainstay / rear center413 mm413 mm413 mm415 mm415 mm418 mm418 mm
Wheelbase981 mm982 mm986 mm988 mm995 mm1014 mm1024 mm
Bottom-bracket drop77.5 mm77.5 mm77.5 mm76 mm76 mm74.5 mm74.5 mm
Bottom-bracket height265 mm265 mm265 mm266 mm266 mm268 mm268 mm
Reach353 mm363 mm368 mm376 mm384 mm392 mm398 mm
Stack540 mm555 mm570 mm585 mm605 mm630 mm665 mm
Standover height682 mm715 mm743 mm762 mm783 mm805 mm844 mm
Fork offset / rake50 mm50 mm50 mm44 mm44 mm44 mm44 mm
Front center580 mm581 mm586 mm585 mm592 mm607 mm618 mm
Trail71 mm62 mm59 mm61 mm55 mm55 mm52 mm
Fork length / axle-to-crown370 mm370 mm370 mm370 mm370 mm370 mm370 mm
Seatpost length380 mm380 mm380 mm380 mm380 mm380 mm450 mm
Crank length165 mm165 mm170 mm172.5 mm172.5 mm175 mm175 mm
Stem length70 mm80 mm90 mm100 mm100 mm110 mm110 mm
Handlebar width360 mm380 mm400 mm420 mm420 mm440 mm440 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes46/33T · 10–36T · 12-speed
Lowest0.92:1 Highest4.60:1 Total range502%
Estimated speed At 90 RPM Lowest gear6.6 mph Highest gear32.9 mph

Rear tire: 700C×28.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
SRAM CN Force 12-speed Search: SRAM CN Force 12-speed chain
Retailer offers · Affiliate links
Cassette · Original
SRAM Force, XG-1270 D1, 12-speed, 10-36t Search: SRAM XG-1270 12-speed 10-36 cassette
Front tire · Original
S-Works Turbo, 700x28mm
Retailer offers · Affiliate links
Specialized SW Mondo 2Bliss Tire Black, 700x28

Specialized SW Mondo 2Bliss Tire Black, 700x28

700x28

Replacement option · verify fit

More parts (5)
Bottom bracket · Original
SRAM DUB BSA 68
Crankset · Original
SRAM FC Force DUB, 12-speed; chainrings: 46/33
Front derailleur · Original
SRAM Force eTAP AXS, braze-on Search: SRAM Force 12-speed electronic front derailleur
Rear derailleur · Original
SRAM Force eTAP AXS, 12-speed Search: SRAM Force 12-speed electronic rear derailleur
Retailer offers · Affiliate links
Shifters · Original
SRAM Force eTap AXS Search: SRAM Force 12-speed electronic shifter

Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.

Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
0 of 19 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2021 Specialized Roubaix Pro · Road · Published sizes: 44, 49, 52, 54, 56, 58, 61, 64

Archived: Frame: FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc · Fork: Future Shock 2.0 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc

Archived: Shifters: SRAM Force eTap AXS · Front derailleur: SRAM Force eTAP AXS, braze-on · Rear derailleur: SRAM Force eTAP AXS, 12-speed · Crankset: SRAM FC Force DUB, 12-speed; chainrings: 46/33 · Bottom bracket: SRAM DUB BSA 68 · Cassette: SRAM Force, XG-1270 D1, 12-speed, 10-36t · Chain: SRAM CN Force 12-speed

Archived: Brakes: (F) SRAM Force eTAP, hydraulic disc / (R) SRAM Force eTAP, hydraulic disc

Archived: Front tire: S-Works Turbo, 700x28mm · Rear tire: S-Works Turbo, 700x28mm

Controls and contact points

Archived: Handlebar: S-Works Carbon Hover Drop 125mm, Reach 75mm, w/Di2 hole · Stem: Future Stem, Pro w/Integrated Computer Mount · Seatpost: S-Works Pave · Saddle: Body Geometry Power Pro, hollow titanium rails

Before and during the test ride
