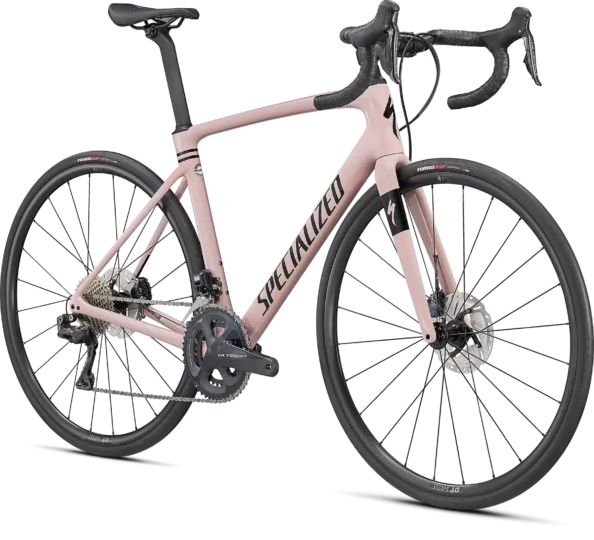

2021 Specialized Roubaix Expert

Original specifications: geometry for 8 published sizes.

Share owner experience

Selling this bike? Get the spec link and selling options

At a glance

Model year
2021
Category
Road
Original MSRP
$5,000.00
Sizes
44, 49, 52, 54, 56, 58, 61, 64
Colors
Gloss Black/Forest Green/Oak Green, Satin Carbon/White, Gloss Blush/Black
Geometry
8 manufacturer sizes
In this record
18 specifications · 8 archived images · original MSRP · geometry
Archive ID
900004306
Model history 4 other years
Campaign
Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

8 sizes · 3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

4449525456586164

Published colors

Gloss Black/Forest Green/Oak GreenSatin Carbon/WhiteGloss Blush/Black

Frameset

Frame ConstructionFACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Frame MaterialCarbon Fiber
ForkFuture Shock 2.0 w/ Damper, Smooth Boot, 12x100 mm thru-axle, flat-mount

Drivetrain

ShiftersShimano Ultegra Di2 Disc R8070
Front DerailleurShimano Ultegra Di2 R8050, braze-on
Rear DerailleurShimano Ultegra RX, RX805
CranksetShimano Ultegra R8000, HollowTech 2, 11-speed; chainrings: 50/34T
Bottom BracketShimano Threaded BSA BB
CassetteShimano Ultegra, 11-speed, 11-34t
ChainShimano Ultegra, 11-speed

Brakes

Brakes(F) Shimano Ultegra R8070, hydraulic disc / (R) Shimano Ultegra R8070, hydraulic disc

Cockpit & Contact Points

HandlebarSpecialized Hover Expert, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole
StemFuture Stem, Pro
SaddleBody Geometry Power Expert
SeatpostS-Works Pave

Wheels & Tires

Wheels(F) DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples. / (R) DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, alloy freehub body, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Front TireSpecialized Turbo Pro, 700x28mm
Rear TireSpecialized Turbo Pro, 700x28mm

Geometry

8 sizes · 20 measurements

Frame measurements by size.

All geometry measurements8 sizes · 20 measurements
Measurement4449525456586164
Seat tube365 mm410 mm446 mm465 mm485 mm505 mm547 mm568 mm
Effective top tube512 mm525 mm533 mm545 mm563 mm579 mm595 mm609 mm
Head tube90 mm100 mm112 mm125 mm143 mm170 mm205 mm215 mm
Head-tube angle70°71.5°72°72.75°73.5°73.5°74°74°
Seat-tube angle74°74°74°74°73.5°73.5°73.5°73°
Chainstay / rear center413 mm413 mm413 mm415 mm415 mm418 mm418 mm418 mm
Wheelbase981 mm982 mm986 mm988 mm995 mm1014 mm1024 mm1033 mm
Bottom-bracket drop77.5 mm77.5 mm77.5 mm76 mm76 mm74.5 mm74.5 mm74.5 mm
Bottom-bracket height265 mm265 mm265 mm266 mm266 mm268 mm268 mm268 mm
Reach353 mm363 mm368 mm376 mm384 mm392 mm398 mm404 mm
Stack540 mm555 mm570 mm585 mm605 mm630 mm665 mm675 mm
Standover height682 mm715 mm743 mm762 mm783 mm805 mm844 mm862 mm
Fork offset / rake50 mm50 mm50 mm44 mm44 mm44 mm44 mm44 mm
Front center580 mm581 mm586 mm585 mm592 mm607 mm618 mm626 mm
Trail71 mm62 mm59 mm61 mm55 mm55 mm52 mm52 mm
Fork length / axle-to-crown370 mm370 mm370 mm370 mm370 mm370 mm370 mm370 mm
Seatpost length380 mm380 mm380 mm380 mm380 mm380 mm450 mm450 mm
Crank length165 mm165 mm170 mm172.5 mm172.5 mm175 mm175 mm175 mm
Stem length70 mm80 mm90 mm100 mm100 mm110 mm110 mm120 mm
Handlebar width360 mm380 mm400 mm420 mm420 mm440 mm440 mm440 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes50/34T · 11–34T · 11-speed
Lowest1.00:1 Highest4.55:1 Total range455%
Estimated speed At 90 RPM Lowest gear7.2 mph Highest gear32.5 mph

Rear tire: 700C×28.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano Ultegra, 11-speed
Retailer offers
Cassette · Original
Shimano Ultegra, 11-speed, 11-34t
Retailer offers
Front tire · Original
Specialized Turbo Pro, 700x28mm
Retailer offers
Other replacement options (1)
More parts (6)
Brake pads · Original
(F) Shimano Ultegra R8070, hydraulic disc / (R) Shimano Ultegra R8070, hydraulic disc
Bottom bracket · Original
Shimano Threaded BSA BB
Crankset · Original
Shimano Ultegra R8000, HollowTech 2, 11-speed; chainrings: 50/34T
Front derailleur · Original
Shimano Ultegra Di2 R8050, braze-on
Rear derailleur · Original
Shimano Ultegra RX, RX805
Shifters · Original
Shimano Ultegra Di2 Disc R8070

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
0 of 19 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2021 Specialized Roubaix Expert · Road · Published sizes: 44, 49, 52, 54, 56, 58, 61, 64

Archived: Frame: FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc · Fork: Future Shock 2.0 w/ Damper, Smooth Boot, 12x100 mm thru-axle, flat-mount

Archived: Shifters: Shimano Ultegra Di2 Disc R8070 · Front derailleur: Shimano Ultegra Di2 R8050, braze-on · Rear derailleur: Shimano Ultegra RX, RX805 · Crankset: Shimano Ultegra R8000, HollowTech 2, 11-speed; chainrings: 50/34T · Bottom bracket: Shimano Threaded BSA BB · Cassette: Shimano Ultegra, 11-speed, 11-34t · Chain: Shimano Ultegra, 11-speed

Archived: Brakes: (F) Shimano Ultegra R8070, hydraulic disc / (R) Shimano Ultegra R8070, hydraulic disc

Archived: Front tire: Specialized Turbo Pro, 700x28mm · Rear tire: Specialized Turbo Pro, 700x28mm
