Velopedia Bicycle Archive

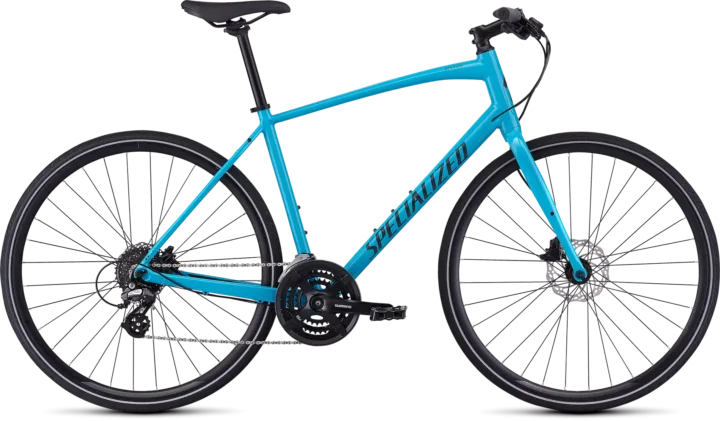

2020 Specialized Sirrus
Original specifications: geometry for 5 published sizes.
Selling this bike? Get the spec link and selling options
At a glance
- Model year
- 2020
- Category
- Hybrid
- Original MSRP
- $625.00
- Sizes
- S, M, L, XL, XXL
- Colors
- Charcoal / Candy Red / Black, Gloss Nice Blue/Black Reflective
- Geometry
- 5 manufacturer sizes
- In this record
- 23 specifications · 2 archived images · original MSRP · geometry
- Archive ID
- 900003847
Model history 15 other years
Original buildAluminum
Frameset
| Frame Construction | Specialized A1 SL Premium Aluminum, Fitness Geometry, fully manipulated butted tubing, internal cable routing, flat-mount disc, quick-release, Plug + Play rack/fender mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | Steel, flat-mount disc, 1-1/8" steerer, QR, Plug + Play rack/fender mounts |
| Fork Material | Steel |
Drivetrain
| Shifters | Shimano Acera, 8-speed |
|---|---|
| Front Derailleur | Shimano Tourney, 3-speed, top-swing |
| Rear Derailleur | Shimano Altus, 8-speed |
| Crankset | Chainrings: 48/38/28T |
| Bottom Bracket | BSA, square-taper, 68mm |
| BB Shell Width | 68 mm |
| Cassette | Shimano Altus, 8-speed, 11-32t |
| Chain | KMC X8 w/ Missing Link™, 8-speed |
| Pedals | Specialized Body Geometry Fitness, platform, plastic |
Brakes
| Brakes | (F) Promax F1, hydraulic disc, flat-mount, 160mm / (R) Promax F1, hydraulic disc, flat-mount, 140mm |
|---|
Cockpit & Contact Points
| Handlebar | Double-butted alloy, 9-degree backsweep, 31.8mm |
|---|---|
| Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
| Saddle | Specialized Canopy Sport, steel rails, 155mm |
| Seatpost | Alloy, 12mm offset, 2-bolt clamp, 27.2mm |
Wheels & Tires
| Hubs | (F) Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h / (R) Alloy, 6-bolt disc, 8-/9-speed freehub, loose ball bearing, quick-release, 32h |
|---|---|
| Rims | 700C disc, double-wall alloy, 22mm depth, 21mm internal width, 32h |
| Spokes | Stainless, 14g |
| Front Tire | Specialized Nimbus II Sport Reflect, 60TPI, wire bead w/ Black Belt protection, 700x32mm |
| Rear Tire | Specialized Nimbus II Sport Reflect, 60TPI, wire bead w/ Black Belt protection, 700x32mm |
Geometry
Frame measurements by size.
| Measurement | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seatpost length | 300 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 175 mm | 175 mm |
| Stem length | 80 mm | 90 mm | 100 mm | 100 mm | 110 mm |
| Handlebar width | 580 mm | 580 mm | 600 mm | 620 mm | 620 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Parts & serviceability
Find replacement parts

SRAM PC-870 Chain One Color, 8 Speed, 114 Links
8 Speed, 114 Links
Replacement option · verify fit

Continental Gator Hardshell Tire - Black Edition Black, 700c x 32mm
700c x 32mm
Replacement option · verify fit

Challenge Strada Pro Tubeless Tire Tan, 700x32
700x32
Replacement option · verify fit
More parts (6)
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2020 Specialized Sirrus · Hybrid · Published sizes: S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Specialized A1 SL Premium Aluminum, Fitness Geometry, fully manipulated butted tubing, internal cable routing, flat-mount disc, quick-release, Plug + Play rack/fender mounts · Fork: Steel, flat-mount disc, 1-1/8" steerer, QR, Plug + Play rack/fender mounts · Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Acera, 8-speed · Front derailleur: Shimano Tourney, 3-speed, top-swing · Rear derailleur: Shimano Altus, 8-speed · Crankset: Chainrings: 48/38/28T · Bottom bracket: BSA, square-taper, 68mm · Cassette: Shimano Altus, 8-speed, 11-32t · Chain: KMC X8 w/ Missing Link™, 8-speed
Brakes
Inspect the brakes →Archived: Brakes: (F) Promax F1, hydraulic disc, flat-mount, 160mm / (R) Promax F1, hydraulic disc, flat-mount, 140mm
Wheels and tires
Check wheels and tires →Archived: Rims: 700C disc, double-wall alloy, 22mm depth, 21mm internal width, 32h · Hubs: (F) Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h / (R) Alloy, 6-bolt disc, 8-/9-speed freehub, loose ball bearing, quick-release, 32h · Front tire: Specialized Nimbus II Sport Reflect, 60TPI, wire bead w/ Black Belt protection, 700x32mm · Rear tire: Specialized Nimbus II Sport Reflect, 60TPI, wire bead w/ Black Belt protection, 700x32mm
Controls and contact points
Archived: Handlebar: Double-butted alloy, 9-degree backsweep, 31.8mm · Stem: Specialized, 3D-forged alloy, 4-bolt, 7-degree rise · Seatpost: Alloy, 12mm offset, 2-bolt clamp, 27.2mm · Saddle: Specialized Canopy Sport, steel rails, 155mm · Pedals: Specialized Body Geometry Fitness, platform, plastic
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
