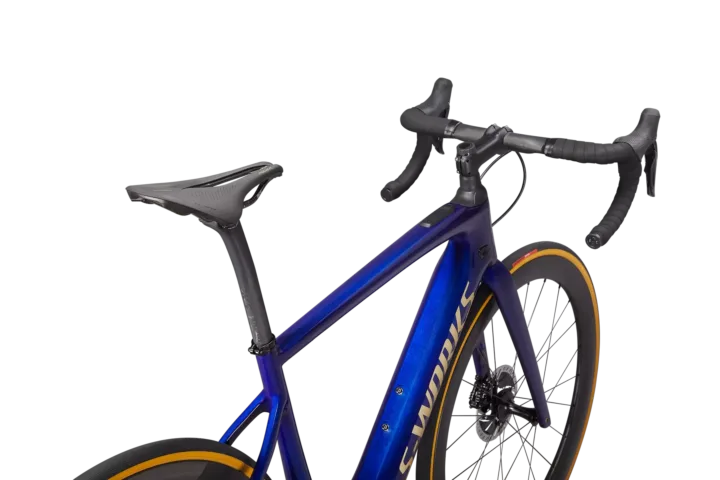

2020 Specialized S-Works Turbo Creo SL - Founder's Edition

Archived: 2020 Specialized S-Works Turbo Creo SL - Founder's Edition · Electric-assist · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm · Fork: Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: SRAM Red eTap AXS Hydraulic · Rear derailleur: Shimano XTR M9050 Di2, Shadow Plus, GS cage, 11-speed · Crankset: Praxis Carbon/M30 Spindle Interface; chainrings: 40T · Cassette: Shimano XTR, 11-speed ,11-40t · Chain: SRAM RED 12-speed

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Shimano 105, Hydraulic disc / (R) Shimano 105, Hydraulic disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheels: (F) Custom Roval CLX 50 wheelset / (R) Custom Roval CLX 50 wheelset · Front tire: Turbo Cotton, 700x28 · Rear tire: Turbo Cotton, 700x28

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: S-Works Short & Shallow, 125mm Drop, 75mm Reach w/Di2 Hole · Stem: S-Works Future Stem w/ Integrated Computer mount · Seatpost: S-Works FACT carbon 27.2mm, 20mm offset · Saddle: S-Works Power, carbon rails, carbon base, synthetic leather

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Archived: Motor: Specialized SL 1.1, custom lightweight motor · Battery: Specialized SL1-320, fully integrated, 320Wh · Display: Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth® · Charger: Custom charger, 48V System w/ SL system charger plug

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
