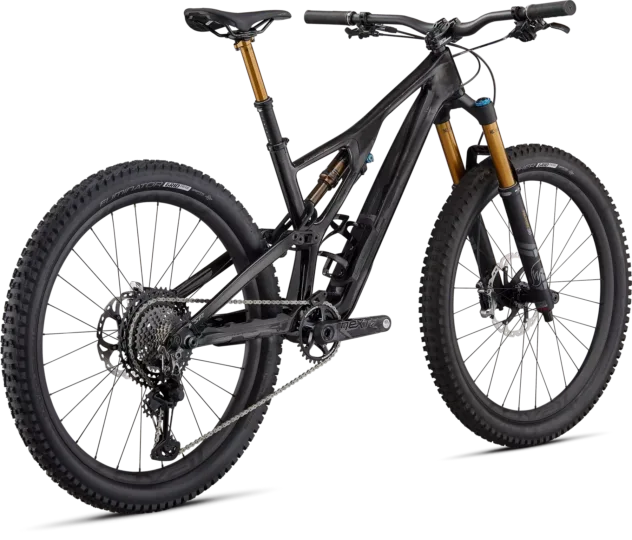

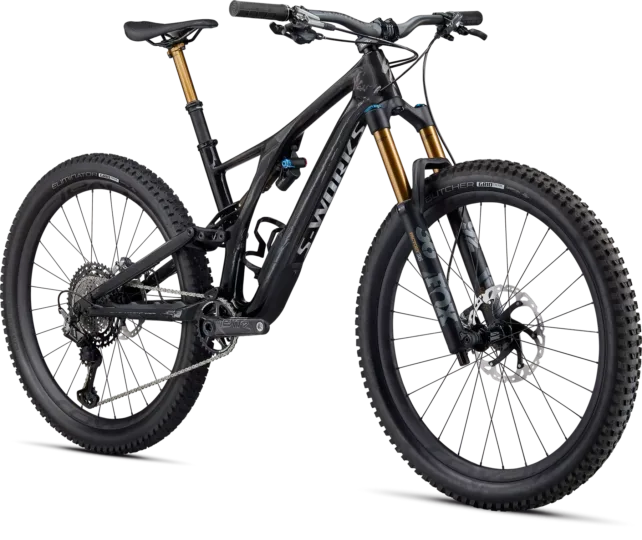

2020 Specialized S-Works Stumpjumper 27.5

Archived: 2020 Specialized S-Works Stumpjumper 27.5 · Mountain · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: FACT 11m carbon chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel · Fork: FOX FLOAT Performance Elite, 36, GRIP2 damper, 51mm offset, 15x110mm, tapered alloy steerer, 150mm of travel · Aluminum

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: FOX FLOAT Performance Elite, 36, GRIP2 damper, 51mm offset, 15x110mm, tapered alloy steerer, 150mm of travel · Rear shock: FOX FLOAT DPX2 Factory, Rx Trail Tune, EVOL Air sleeve, Kashima coat, 3-position adjustment w/ Open Mode adjustment, 210x52.5mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: Shimano XTR M9100, 12-speed · Rear derailleur: Shimano XTR M9100, 12-speed, Shadow Plus · Crankset: Race Face Next R Carbon, 170mm; chainrings: Steel, 30T · Bottom bracket: Threaded, 30mm spindle · Cassette: Shimano XTR M9100, 12-speed, 10-51t · Chain: Shimano XTR M9100, 12-speed w/ quick link

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Shimano XTR M9120, 4-piston caliper, hydraulic disc, 180mm rotor / (R) Shimano XTR M9120, 4-piston caliper, hydraulic disc, 180mm rotor

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: Roval Traverse SL Carbon 27.5, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready · Front tire: Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6" · Rear tire: Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm · Stem: Deity, 31.8mm · Seatpost: FOX Factory Transfer, Kashima, 30.9, Shimano Ispec-EV lever (S: 125mm, M/L: 150mm, XL:175mm) · Saddle: Body Geometry Myth 155 S, Body Geometry Henge 143 M/L/XL, hollow ti rails

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
