2019 Specialized S-Works Turbo Levo

Archived: 2019 Specialized S-Works Turbo Levo · Electric-assist · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: S-Works FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, dropper post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel · Fork: FOX 36 Factory E-bike, GRIP2 damper, 29" Boost™, 150mm of travel

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

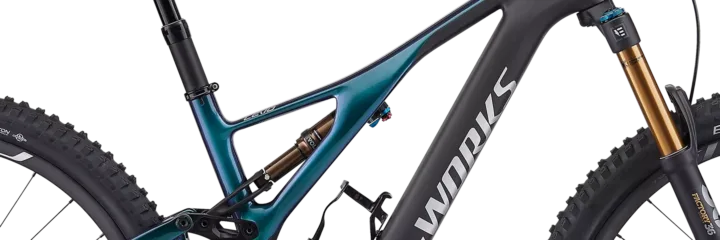

Archived: Fork: FOX 36 Factory E-bike, GRIP2 damper, 29" Boost™, 150mm of travel · Rear shock: FOX FLOAT Factory DPS, 210x52.5, 150mm of travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

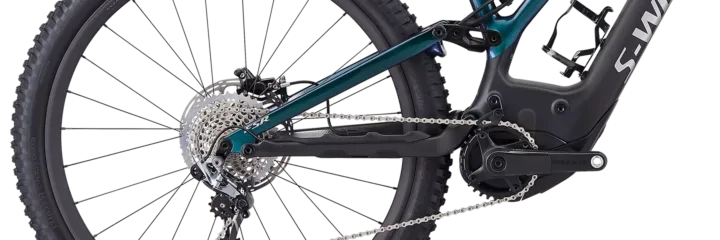

Archived: Shifters: SRAM X01, single-click lever · Rear derailleur: SRAM XX1, 11-speed · Crankset: Praxis, full carbon ISIS, custom offset, 165mm; chainrings: 32T, custom steel · Cassette: SRAM XG1199, XD, 11-speed, 10-42t · Chain: SRAM XX1, 11-speed

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm / (R) SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: Roval Traverse SL 29, XD driver, 148mm spacing · Front tire: Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6" · Rear tire: Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm · Stem: Deity, 31.8mm · Seatpost: Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm, S: 130mm, M/L/XL: 160mm of travel · Saddle: Body Geometry Phenom Expert, hollow titanium rails, carbon fiber base, 143mm · Pedals: Specialized Body Geometry Fitness, platform, plastic

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

Archived: Motor: Specialized Turbo Full Power System 2.2 Motor · Battery: Specialized M2-700, integrated battery w/rock guard, 700Wh · Display: Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote · Charger: Custom charger, 42V4A w/ Rosenberger plug

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
