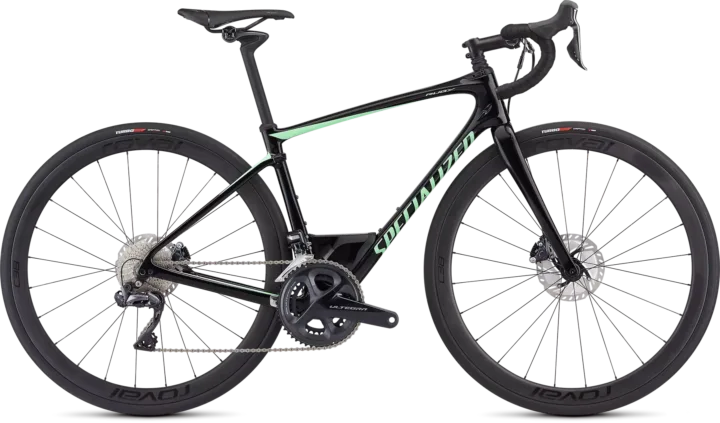

2019 Specialized Ruby Expert

Archived: 2019 Specialized Ruby Expert · Road · Published sizes: 44, 48, 51, 54, 56

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Specialized FACT 10r carbon, Endurance Geometry, Rider-First Engineered™, 12x142mm thru-axle, Future Shock suspension, 20mm of travel, flat disc mounts · Fork: Specialized FACT full-carbon, flat-mount disc, 12x100mm thru-axle · Carbon Fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano Ultegra Di2 Disc R8070 · Front derailleur: Shimano Ultegra Di2 R8050, braze-on · Rear derailleur: Shimano Ultegra Di2 R8050, GS medium cage · Crankset: Shimano Ultegra R8000, HollowTech 2, 11-speed; chainrings: 50/34T · Bottom bracket: Shimano Ultegra, BBR60 · Cassette: Shimano Ultegra, 11-speed, 11-34t · Chain: Shimano Ultegra, 11-speed

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

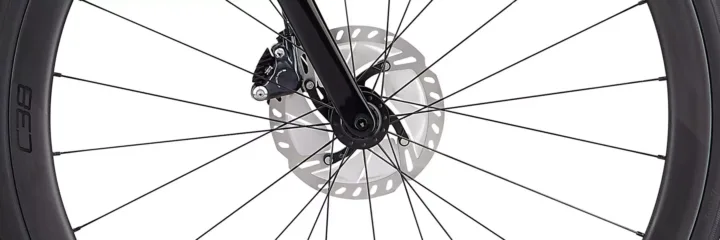

Archived: Brakes: (F) Shimano Ultegra, hydraulic disc / (R) Shimano Ultegra, hydraulic disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

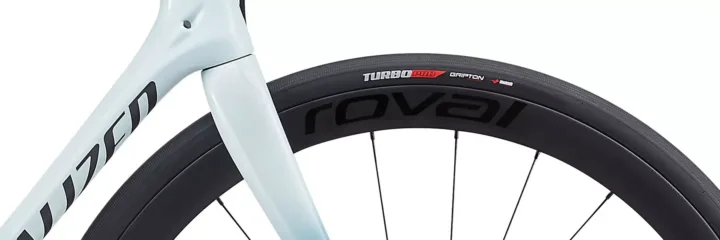

Archived: Wheels: (F) Roval C 38 Disc, carbon, tubeless-ready, 38mm depth, 24h / (R) Roval C 38 Disc, carbon, tubeless-ready, 38mm depth, 24h · Front tire: Specialized Turbo Pro, 700x28mm · Rear tire: Specialized Turbo Pro, 700x28m

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

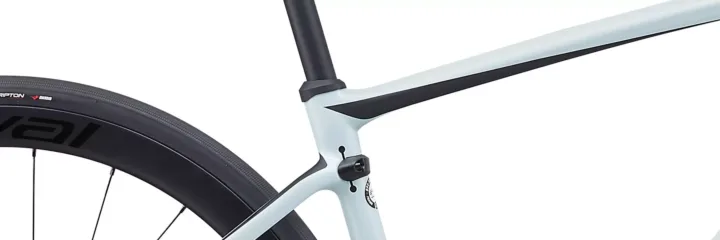

Archived: Handlebar: Specialized Expert Hover, alloy, 125x75mm w/ Di2 hole · Stem: Specialized Pro SL, alloy, 4-bolt · Seatpost: S-Works CG-R, FACT carbon fiber, single-bolt, 27.2mm · Saddle: Ruby Expert, 155 · Pedals: Nylon, 105x78x28mm, loose ball w/reflectors

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
