2019 Specialized Rockhopper Pro - Women's
Original specifications: geometry for 4 published sizes.
Selling this bike? Get the spec link and selling options
At a glance
- Model year
- 2019
- Category
- Mountain
- Original MSRP
- $1,300.00
- Sizes
- XS, S, M, L
- Colors
- Satin Gloss Black/Acid Purple/Acid Lava
- Geometry
- 4 manufacturer sizes
- In this record
- 22 specifications · 7 archived images · original MSRP · geometry
- Archive ID
- 900003486
Model history 1 other year
Original buildAluminum
Frameset
| Frame Construction | A1 SL Aluminum, Sport XC 29 Geometry, tapered head tube, internal cable routing, Boost QR 141x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Recon RL, Solo Air, 9x100 QR, 51mm offset, 80/90/100mm of travel |
Drivetrain
| Shifters | Shimano Deore, 10-speed w/ Optical Gear Display |
|---|---|
| Front Derailleur | Shimano Deore, 2-speed |
| Rear Derailleur | Shimano SLX, Shadow Plus, SGS cage, 10-speed |

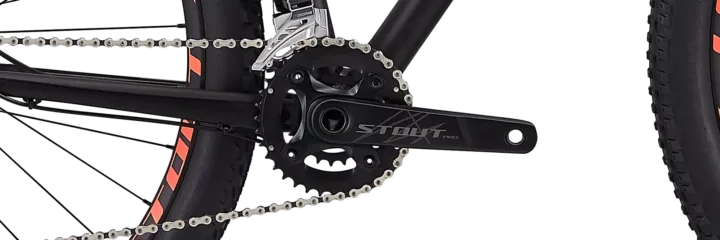

| Crankset | Stout Pro, forged alloy, BSA, 2x10; chainrings: Alloy, 36/22T |
| Bottom Bracket | BSA for 24mm spindle |
| BB Shell Width | 24 mm |
| Cassette | SunRace, 10-Speed, 11-36t |
| Chain | KMC X10, 10-speed w/ reusable Missing Link™ |
| Pedals | Specialized Dirt |
Brakes
| Brakes | (F) Shimano BR-MT200, hydraulic disc, 160/180mm / (R) Shimano BR-MT200, hydraulic disc, 160mm |
|---|
Cockpit & Contact Points
| Handlebar | Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm |
|---|---|
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Saddle | Myth Sport, steel rails, 155mm |
| Seatpost | Alloy, 12mm offset, 2-bolt clamp, 30.9mm |
Wheels & Tires
| Hubs | (F) Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 28h / (R) Shimano FH-MT200, 9x141mm QR, Center Lock™ disc, 32h |
|---|---|
| Rims | Stout XC 29, 25mm internal width, disc-specific, 2Bliss Ready |
| Spokes | Stainless, 14g |
| Front Tire | Ground Control Sport, 29x2.3" |
| Rear Tire | Fast Trak Sport, 29x2.1" |
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 20 measurements
| Measurement | XS | S | M | L |
|---|---|---|---|---|
| Seat tube | 370 mm | 400 mm | 430 mm | 470 mm |
| Effective top tube | 548 mm | 567 mm | 594 mm | 622 mm |
| Head tube | 95 mm | 95 mm | 95 mm | 110 mm |
| Head-tube angle | 69.8° | 69.8° | 69.8° | 69.8° |
| Seat-tube angle | 74° | 73.9° | 73.8° | 73.7° |
| Chainstay / rear center | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1065 mm | 1084 mm | 1110 mm | 1138 mm |
| Bottom-bracket drop | 57.5 mm | 57.5 mm | 57.5 mm | 57.5 mm |
| Bottom-bracket height | 312.5 mm | 312.5 mm | 312.5 mm | 312.5 mm |
| Reach | 380 mm | 395 mm | 418 mm | 441 mm |
| Stack | 586 mm | 595 mm | 605 mm | 619 mm |
| Standover height | 719 mm | 765 mm | 776 mm | 807 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Front center | 631 mm | 650 mm | 676 mm | 704 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm |
| Fork length / axle-to-crown | 486 mm | 496 mm | 506 mm | 506 mm |
| Seatpost length | 350 mm | 350 mm | 400 mm | 400 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 175 mm |
| Stem length | 45 mm | 60 mm | 70 mm | 80 mm |
| Handlebar width | 720 mm | 720 mm | 720 mm | 720 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Parts & serviceability
Find replacement parts
More parts (6)
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases.
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2019 Specialized Rockhopper Pro - Women's · Mountain · Published sizes: XS, S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: A1 SL Aluminum, Sport XC 29 Geometry, tapered head tube, internal cable routing, Boost QR 141x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger · Fork: RockShox Recon RL, Solo Air, 9x100 QR, 51mm offset, 80/90/100mm of travel
Suspension
Evaluate the suspension →Archived: Fork: RockShox Recon RL, Solo Air, 9x100 QR, 51mm offset, 80/90/100mm of travel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore, 10-speed w/ Optical Gear Display · Front derailleur: Shimano Deore, 2-speed · Rear derailleur: Shimano SLX, Shadow Plus, SGS cage, 10-speed · Crankset: Stout Pro, forged alloy, BSA, 2x10; chainrings: Alloy, 36/22T · Bottom bracket: BSA for 24mm spindle · Cassette: SunRace, 10-Speed, 11-36t · Chain: KMC X10, 10-speed w/ reusable Missing Link™
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano BR-MT200, hydraulic disc, 160/180mm / (R) Shimano BR-MT200, hydraulic disc, 160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Stout XC 29, 25mm internal width, disc-specific, 2Bliss Ready · Hubs: (F) Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 28h / (R) Shimano FH-MT200, 9x141mm QR, Center Lock™ disc, 32h · Front tire: Ground Control Sport, 29x2.3" · Rear tire: Fast Trak Sport, 29x2.1"
Controls and contact points
Archived: Handlebar: Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm · Stem: Stout 3D-forged alloy, 31.8mm, 6-degree rise · Seatpost: Alloy, 12mm offset, 2-bolt clamp, 30.9mm · Saddle: Myth Sport, steel rails, 155mm · Pedals: Specialized Dirt
