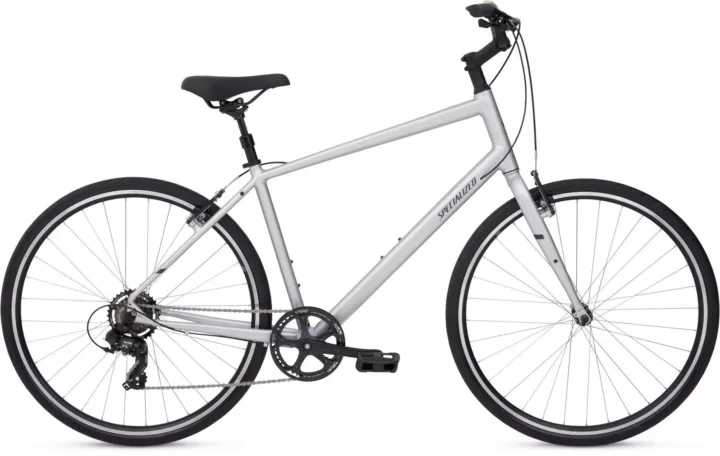

2019 Specialized Alibi C

Original specifications: geometry for 4 published sizes.

Share owner experience

Selling this bike? Get the spec link and selling options

At a glance

Model year
2019
Category
Hybrid
Original MSRP
$500.00
Sizes
S, M, L, XL
Colors
Satin Cast Blue/Rocket Red Reflective, Satin Light Silver/Black Reflective
Geometry
4 manufacturer sizes
In this record
18 specifications · 2 archived images · original MSRP · geometry
Archive ID
900003410
Campaign
Original buildAluminum

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Satin Cast Blue/Rocket Red ReflectiveSatin Light Silver/Black Reflective

Frameset

Frame ConstructionSpecialized A1 Premium Aluminum, formed tubes, fender/rack mounts
Frame MaterialAluminum
ForkHi-Ten, V-brake mounts

Drivetrain

ShiftersShimano Acera, 7-speed
Rear DerailleurShimano Tourney, 7-speed
CranksetForged alloy, 130mm BCD; chainrings: 42T
Bottom BracketBSA, square-taper, cartridge bearings
CassetteShimano Tourney freewheel, 7-speed, 14-34t
ChainKMC Z51 EPT, anti-rust coating, 7-speed
PedalsSpecialized City, platform

Brakes

Brakes(F) V-brake, linear pull / (R) V-brake, linear pull

Cockpit & Contact Points

Handlebar640mm width, 15-degree backsweep, 80mm rise, 31.8mm
StemSpecialized, 3D-forged alloy, 4-bolt, 7-degree rise
SaddleBody Geometry Comfort Gel, 200mm
SeatpostSpring suspension, alloy, 27.2mm, 2-bolt clamp

Wheels & Tires

Wheels(F) Alibi V-Brake / (R) Alibi V-Brake
Front TireNimbus Airless, 700x38mm
Rear TireNimbus Airless, 700x38mm

Geometry

4 sizes · 17 measurements

Frame measurements by size.

All geometry measurements4 sizes · 17 measurements
MeasurementSMLXL
Effective top tube585 mm607 mm628 mm652 mm
Head tube160 mm185 mm210 mm240 mm
Head-tube angle70°70°70°70°
Seat-tube angle73°73°73°73°
Chainstay / rear center445 mm445 mm445 mm445 mm
Wheelbase1096 mm1119 mm1144 mm1169 mm
Bottom-bracket drop70 mm70 mm65 mm65 mm
Reach405 mm420 mm435 mm450 mm
Stack575 mm599 mm617 mm645 mm
Standover height714 mm766 mm790 mm834.5 mm
Fork offset / rake51 mm51 mm51 mm51 mm
Front center661 mm684 mm707 mm732 mm
Trail75 mm75 mm75 mm75 mm
Seatpost length350 mm350 mm350 mm350 mm
Crank length165 mm170 mm175 mm175 mm
Stem length60 mm70 mm90 mm100 mm
Handlebar width640 mm640 mm640 mm640 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42T · 14–34T · 7-speed
Lowest1.24:1 Highest3.00:1 Total range243%
Estimated speed At 90 RPM Lowest gear9.1 mph Highest gear22.1 mph

Rear tire: 700C×38.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
KMC Z51 EPT, anti-rust coating, 7-speed
Cassette · Original
Shimano Tourney freewheel, 7-speed, 14-34t
Front tire · Original
Nimbus Airless, 700x38mm Replacement search: 700cx38 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (4)
Pedals · Original
Specialized City, platform
Rear derailleur · Original
Shimano Tourney, 7-speed
Shifters · Original
Shimano Acera, 7-speed
Seatpost · Original
Spring suspension, alloy, 27.2mm, 2-bolt clamp
Retailer offers

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
0 of 19 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2019 Specialized Alibi C · Hybrid/Comfort · Published sizes: S, M, L, XL

Archived: Frame: Specialized A1 Premium Aluminum, formed tubes, fender/rack mounts · Fork: Hi-Ten, V-brake mounts

Archived: Shifters: Shimano Acera, 7-speed · Rear derailleur: Shimano Tourney, 7-speed · Crankset: Forged alloy, 130mm BCD; chainrings: 42T · Bottom bracket: BSA, square-taper, cartridge bearings · Cassette: Shimano Tourney freewheel, 7-speed, 14-34t · Chain: KMC Z51 EPT, anti-rust coating, 7-speed

Archived: Brakes: (F) V-brake, linear pull / (R) V-brake, linear pull

Archived: Wheels: (F) Alibi V-Brake / (R) Alibi V-Brake · Front tire: Nimbus Airless, 700x38mm · Rear tire: Nimbus Airless, 700x38mm

Controls and contact points

Archived: Handlebar: 640mm width, 15-degree backsweep, 80mm rise, 31.8mm · Stem: Specialized, 3D-forged alloy, 4-bolt, 7-degree rise · Seatpost: Spring suspension, alloy, 27.2mm, 2-bolt clamp · Saddle: Body Geometry Comfort Gel, 200mm · Pedals: Specialized City, platform
