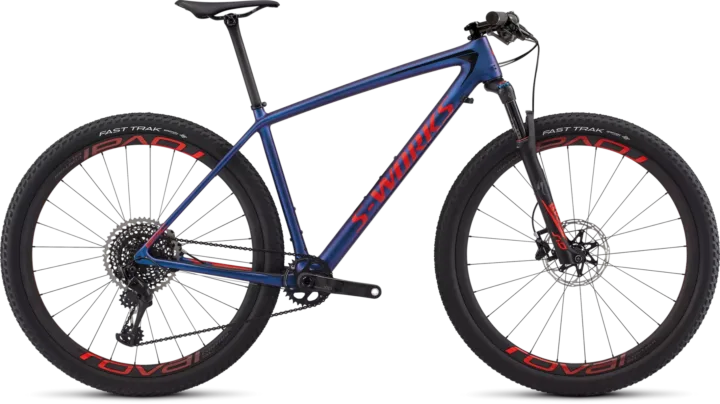

2018 Specialized S-Works Epic Hardtail XX1 Eagle

Archived: 2018 Specialized S-Works Epic Hardtail XX1 Eagle · Mountain · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: S-Works FACT 12m, full carbon frame w/ S-Works layup, XC Geometry, internal split-housing cable routing, PF30 BB, 12x148mm rear end, triangulated post-mount 160mm brake · Fork: Custom RockShox SID World Cup w/ Brain, top-mount Brain Fade adjust, rebound adjust, Solo Air spring, tapered carbon crown/steerer, 15x110mm Maxle Stealth thru-axle, 90/100mm of travel, 51mm offset · Carbon Fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: Custom RockShox SID World Cup w/ Brain, top-mount Brain Fade adjust, rebound adjust, Solo Air spring, tapered carbon crown/steerer, 15x110mm Maxle Stealth thru-axle, 90/100mm of travel, 51mm offset

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: SRAM XX1 Eagle, trigger, 12-speed · Rear derailleur: SRAM XX1 Eagle™, 12-speed · Crankset: SRAM XX1 Eagle, 175/170mm crankarm, 30mm spindle; chainrings: SRAM Eagle™, alloy, 32T · Bottom bracket: SRAM PF30 · Cassette: SRAM X01 Eagle, 12-speed, 10-50t · Chain: SRAM X01 Eagle, 12-speed w/ PowerLock

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) SRAM Level Ultimate, hydraulic disc, carbon lever, titanium hardware, organic pads, 160/180mm rotor / (R) SRAM Level Ultimate, hydraulic disc, carbon lever, titanium hardware, organic pads, 160mm rotor

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: Roval Control SL, hookless carbon, 25mm internal width, tubeless-ready, hand-built · Front tire: Fast Trak, GRIPTON compound, 2Bliss Ready, 29 x 2.3", · Rear tire: Fast Trak, GRIPTON compound, 2Bliss Ready, 29 x 2.1"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Handlebar: S-Works Carbon Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 720mm, 31.8mm · Stem: S-Works SL, alloy, titanium bolts, 6-degree rise · Seatpost: S-Works FACT carbon, 27.2mm, 0mm setback, carbon rail clamps · Saddle: Body Geometry S-Works Phenom, carbon rails, 143mm · Pedals: Specialized Dirt

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
