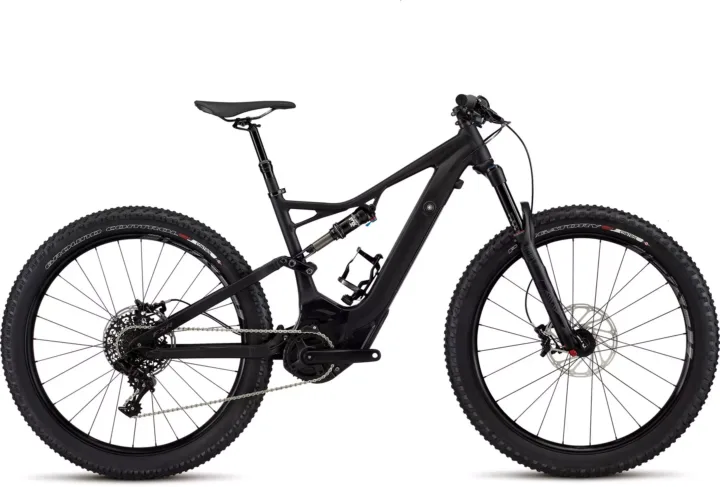

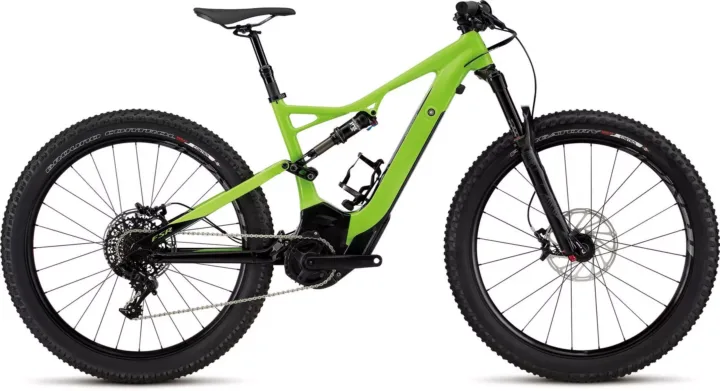

2017 Specialized Turbo Levo FSR Comp 6Fattie

Archived: 2017 Specialized Turbo Levo FSR Comp 6Fattie · Electric-assist · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Specialized M5 Premium Aluminum, Trail Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 140mm of travel · Fork: RockShox Yari RC 29/27.5+, Solo Air spring, adjustable compression and rebound, 15x110mm Maxle Ultimate thru-axle, 51mm offset, 140mm travel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: RockShox Yari RC 29/27.5+, Solo Air spring, adjustable compression and rebound, 15x110mm Maxle Ultimate thru-axle, 51mm offset, 140mm travel · Rear shock: FOX FLOAT Performance, Rx Trail Tune, AUTOSAG, DPS damper, rebound and 3-position compression adjust, 197x47.6mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SRAM GX, 11-speed, trigger · Rear derailleur: SRAM GX, long cage, 11-speed · Crankset: Custom alloy crankarms; chainrings: 32T · Cassette: SRAM XG-1150, 11-speed, 10-42t · Chain: SRAM PCX1, 11-speed w/PowerLink

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) SRAM Guide R, hydraulic disc, metallic pads, Guide S4 4-piston caliper, 200mm rotor / (R) SRAM Guide R, hydraulic disc, metallic pads, Guide S4 4-piston caliper, 200mm rotor

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Hubs: (F) Specialized disc, alloy, sealed cartridge bearings, 110x15mm thru-axle, 24h / (R) Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h · Front tire: Purgatory, GRID casing, 650bx3.0"", 60TPI, Aramid folding bead, 2Bliss Ready · Rear tire: Purgatory, GRID casing, 650bx3.0"", 60TPI, Aramid folding bead, 2Bliss Ready

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Handlebar: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width · Stem: Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise · Seatpost: Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel · Saddle: Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

Archived: Motor: Custom & exclusive for Specialized, Trail tuned, 250 W · Battery: Custom LEVO battery, 460Wh, 40x3.2Ah, ANT+/Bluetooth connectivity, IP 67 · Display: Integrated Trail display, 10-LED battery display, Mission Control iOS/Android App · Charger: Custom charger, 42V4A w/Rosenberger plug

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
