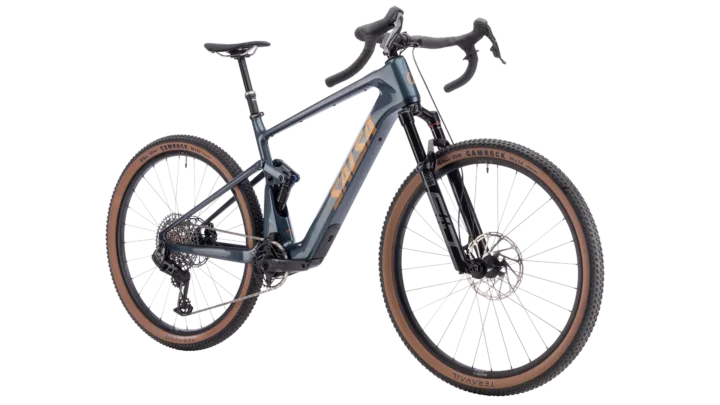

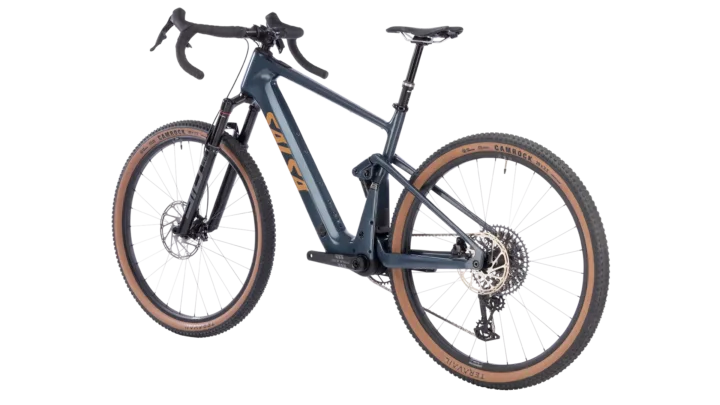

2026 Salsa Wanderosa C Rival GX AXS Transmission
Electric-assist bicycle from the Velopedia specification archive.
- Original MSRP
- $9,999.00
- Sizes
- XS, S, M, L, XL
- Colors
- Charcoal
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900000618
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Suspension is concentrated at the fork, so fork setup and rear-tire pressure are the main tools for balancing front and rear behavior. The electric-assist system adds another maintenance layer, especially battery condition, charger compatibility, motor operation and any available diagnostic history. Electronic shifting removes the usual shift cable but adds a separate battery and controls, while the 520% cassette range describes how much gearing is available.
Suspension setup
Front only
Fork settings affect the front while rear-wheel behavior remains dependent on tire and wheel setup.
E-bike system
Electric-assist
The drive system needs its own battery, charger, motor-control and diagnostic checks in addition to the bicycle components.
Drivetrain
Electronic · 520% range
Shift-system battery state joins derailleur setup and sprocket compatibility as a troubleshooting variable.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- E-bike systemConfirm the main battery charges with the correct charger, locks securely into its mount and has no case damage, swelling, corrosion or overheating marks. Power the bike on from cold, test every assist mode and ask for available battery-health and diagnostic records.Check the battery and electronics →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 24 checks based on 7 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Salsa Wanderosa C Rival GX AXS Transmission · Electric-assist · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon fiber · Fork: RockShox SID Select+ 3P, 120mm
Suspension
Evaluate the suspension →Archived: Fork: RockShox SID Select+ 3P, 120mm
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Rival AXS · Rear derailleur: SRAM GX Eagle Transmission · Crankset: Praxis aluminum, ETOR, 38t ring · Cassette: SRAM XS-1275, 10–52t, 12-speed · Chain: SRAM GX Eagle Transmission Flattop
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: SRAM Rival (post-mount front, flat-mount rear); Brake Levers: SRAM Rival AXS; Rotors: SRAM CenterLine (6-bolt, 200mm front, 180mm rear)
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Rims: WTB EZR i27, 28h, 29" · Hubs: (F) DT Swiss 370 15 x 110mm / (R) DT Swiss 370 12 x 148mm · Front tire: Teravail Camrock, 29 x 2.2" Durable casing, tan wall · Rear tire: Teravail Camrock, 29 x 2.2" Durable casing, tan wall
Controls and contact points
Archived: Headset: Acros · Handlebar: Salsa Cowchipper · Stem: Salsa Guide Trail · Seatpost: TranzX YSI35, 110mm travel · Saddle: WTB Gravelier
E-bike system
Check the battery and electronics →Archived: Salsa Wanderosa C Rival GX AXS Transmission · electric-assist identification
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon fiber |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox SID Select+ 3P, 120mm |
Drivetrain
| Shifters | SRAM Rival AXS |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | SRAM GX Eagle Transmission |
| Crankset | Praxis aluminum, ETOR, 38t ring |
| Cassette | SRAM XS-1275, 10–52t, 12-speed |
| Chain | SRAM GX Eagle Transmission Flattop |
Brakes
| Brakes | Brake Calipers: SRAM Rival (post-mount front, flat-mount rear); Brake Levers: SRAM Rival AXS; Rotors: SRAM CenterLine (6-bolt, 200mm front, 180mm rear) |
|---|
Cockpit & Contact Points
| Headset | Acros |
|---|---|
| Handlebar | Salsa Cowchipper |
| Stem | Salsa Guide Trail |
| Saddle | WTB Gravelier |
| Seatpost | TranzX YSI35, 110mm travel |
Wheels & Tires
| Hubs | (F) DT Swiss 370 15 x 110mm / (R) DT Swiss 370 12 x 148mm |
|---|---|
| Rims | WTB EZR i27, 28h, 29" |
| Spokes | 2.0/1.8 butted |
| Front Tire | Teravail Camrock, 29 x 2.2" Durable casing, tan wall |
| Rear Tire | Teravail Camrock, 29 x 2.2" Durable casing, tan wall |
| Wheel Size | 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat tube | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Effective top tube | 538.2 mm | 563.3 mm | 588.4 mm | 613.4 mm | 638.5 mm |
| Head tube | 100 mm | 105 mm | 125 mm | 145 mm | 165 mm |
| Head-tube angle | 65.3° | 65.3° | 65.3° | 65.3° | 65.3° |
| Seat-tube angle | 75.1° | 75.1° | 75.1° | 75.1° | 75.1° |
| Chainstay / rear center | 440.6 mm | 440.6 mm | 440.6 mm | 440.6 mm | 440.6 mm |
| Wheelbase | 1123.7 mm | 1149.7 mm | 1178.3 mm | 1206.8 mm | 1235.5 mm |
| Bottom-bracket drop | 37.6 mm | 37.6 mm | 37.6 mm | 37.6 mm | 37.6 mm |
| Bottom-bracket height | 332.4 mm | 332.4 mm | 332.4 mm | 332.4 mm | 332.4 mm |
| Reach | 380.3 mm | 404.1 mm | 424.4 mm | 444.6 mm | 464.9 mm |
| Stack | 595.4 mm | 599.9 mm | 618.1 mm | 636.3 mm | 654.5 mm |
| Standover height | 725.6 mm | 749.2 mm | 776.3 mm | 803.1 mm | 829.7 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork length / axle-to-crown | 531 mm | 531 mm | 531 mm | 531 mm | 531 mm |
| Crank length | 160 mm | 165 mm | 165 mm | 170 mm | 170 mm |
| Stem length | 35 mm | 35 mm | 45 mm | 45 mm | 45 mm |
Geometry source: Salsa first-party metric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
X-Small geometry
Riding position
At 595.4 mm of stack and 380.3 mm of reach, the frame is tall relative to its length, which generally supports a more upright position.
Handling tendencies
A 65.3° head angle combined with a 1123.7 mm wheelbase points to more stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Small geometry
Riding position
The 404.1 mm reach and 599.9 mm stack sit in a moderate proportion, without a strong long-and-low or tall-and-short bias.
Handling tendencies
A 65.3° head angle combined with a 1149.7 mm wheelbase points to more stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Medium geometry
Riding position
The 424.4 mm reach and 618.1 mm stack sit in a moderate proportion, without a strong long-and-low or tall-and-short bias.
Handling tendencies
A 65.3° head angle combined with a 1178.3 mm wheelbase points to more stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Large geometry
Riding position
The 444.6 mm reach and 636.3 mm stack sit in a moderate proportion, without a strong long-and-low or tall-and-short bias.
Handling tendencies
A 65.3° head angle combined with a 1206.8 mm wheelbase points to more stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
X-Large geometry
Riding position
The 464.9 mm reach and 654.5 mm stack sit in a moderate proportion, without a strong long-and-low or tall-and-short bias.
Handling tendencies
A 65.3° head angle combined with a 1235.5 mm wheelbase points to more stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Across the size range
From X-Small to X-Large, reach grows by 84.6 mm and stack by 59.1 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 440.6 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
