Velopedia Bicycle Archive

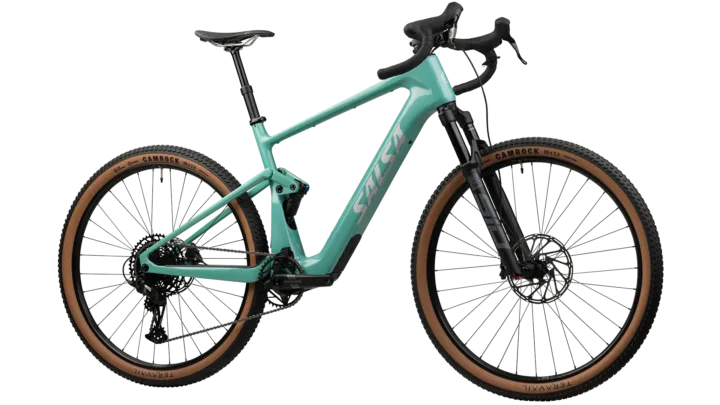

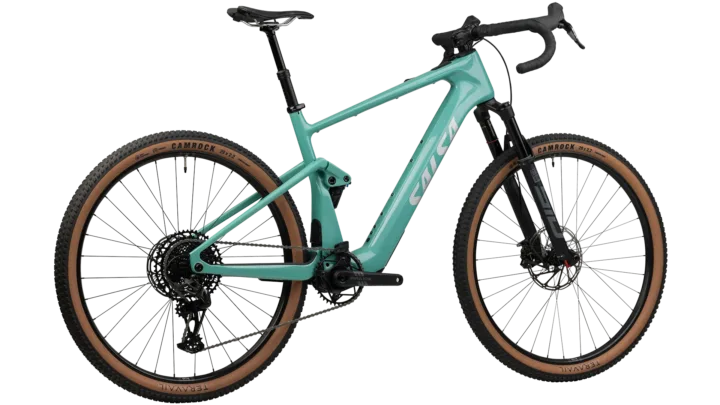

2026 Salsa Wanderosa C Apex Eagle

Electric-assist bicycle from the Velopedia specification archive.

Share owner experience

Original MSRP
$7,999.00
Sizes
XS, S, M, L, XL
Colors
Green
Weight
40 lb 12 oz - LG with tubes
Geometry
5 manufacturer sizes · Ride analysis
Archive ID
900000617

Current market

Snapshot not yet available
Protected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.

Move, scroll, tap or type to start the protected update.

Velopedia analysis

What the specifications mean

Derived from the archived manufacturer recordHow Velopedia reads these specifications →

Suspension is concentrated at the fork, so fork setup and rear-tire pressure are the main tools for balancing front and rear behavior. The electric-assist system adds another maintenance layer, especially battery condition, charger compatibility, motor operation and any available diagnostic history. The 500% cassette range describes the available gearing more clearly than the component-group name alone.

Suspension setup Front only Fork settings affect the front while rear-wheel behavior remains dependent on tire and wheel setup.
E-bike system Electric-assist The drive system needs its own battery, charger, motor-control and diagnostic checks in addition to the bicycle components.
Gearing 500% cassette range Calculated from the published 10–50-tooth sprocket span.
Frame material Carbon / composite Look for impact damage and clamp marks rather than metal-style dents or rust.

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
  • BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
  • E-bike systemConfirm the main battery charges with the correct charger, locks securely into its mount and has no case damage, swelling, corrosion or overheating marks. Power the bike on from cold, test every assist mode and ask for available battery-health and diagnostic records.Check the battery and electronics →
  • SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 24 checks based on 7 archived component groups Open checklistClose checklist
0 of 24 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2026 Salsa Wanderosa C Apex Eagle · Electric-assist · Published sizes: XS, S, M, L, XL

Archived: Frame: Carbon fiber · Fork: RockShox SID Base, 2P, 120mm

Archived: Fork: RockShox SID Base, 2P, 120mm

Archived: Shifters: SRAM Apex Eagle · Rear derailleur: SRAM Apex Eagle · Crankset: Praxis aluminum, ETOR, 38t ring · Cassette: SRAM PG-1210, 10–50t, 12-speed · Chain: SRAM NX Eagle

Archived: Brakes: Brake Calipers: SRAM Apex (post-mount front, flat-mount rear); Brake Levers: SRAM Apex Eagle; Rotors: SRAM CenterLine (6-bolt, 200mm front, 180mm rear)

Archived: Wheel size: 29" · Rims: WTB ST i27, 29" · Hubs: (F) Shimano TC500 15 x 110mm / (R) Shimano TC500 12 x 148mm · Front tire: Teravail Camrock, 29 x 2.2" Durable casing, tan wall · Rear tire: Teravail Camrock, 29 x 2.2" Durable casing, tan wall

Controls and contact points

Archived: Headset: Acros · Handlebar: Salsa Cowchipper · Stem: Salsa Guide Trail · Seatpost: TranzX YSP18 · Saddle: WTB Gravelier

Archived: Salsa Wanderosa C Apex Eagle · electric-assist identification

Before and during the test ride

Follow the full used-bike inspection order →

Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.

My Garage

Velopedia

Enter your email and Velopedia will send a private sign-in link. No password required.

Have you owned this bike?Help preserve its real-world history by sharing your owner experience.

Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.

After submitting, use the verification link sent to your email. Nothing appears publicly until Velopedia approves it.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

Catalog options

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Sizes

XSSMLXL

Colors

Green

Frameset

Frame ConstructionCarbon fiber
Frame MaterialCarbon Fiber
ForkRockShox SID Base, 2P, 120mm

Drivetrain

ShiftersSRAM Apex Eagle
Front DerailleurN/A

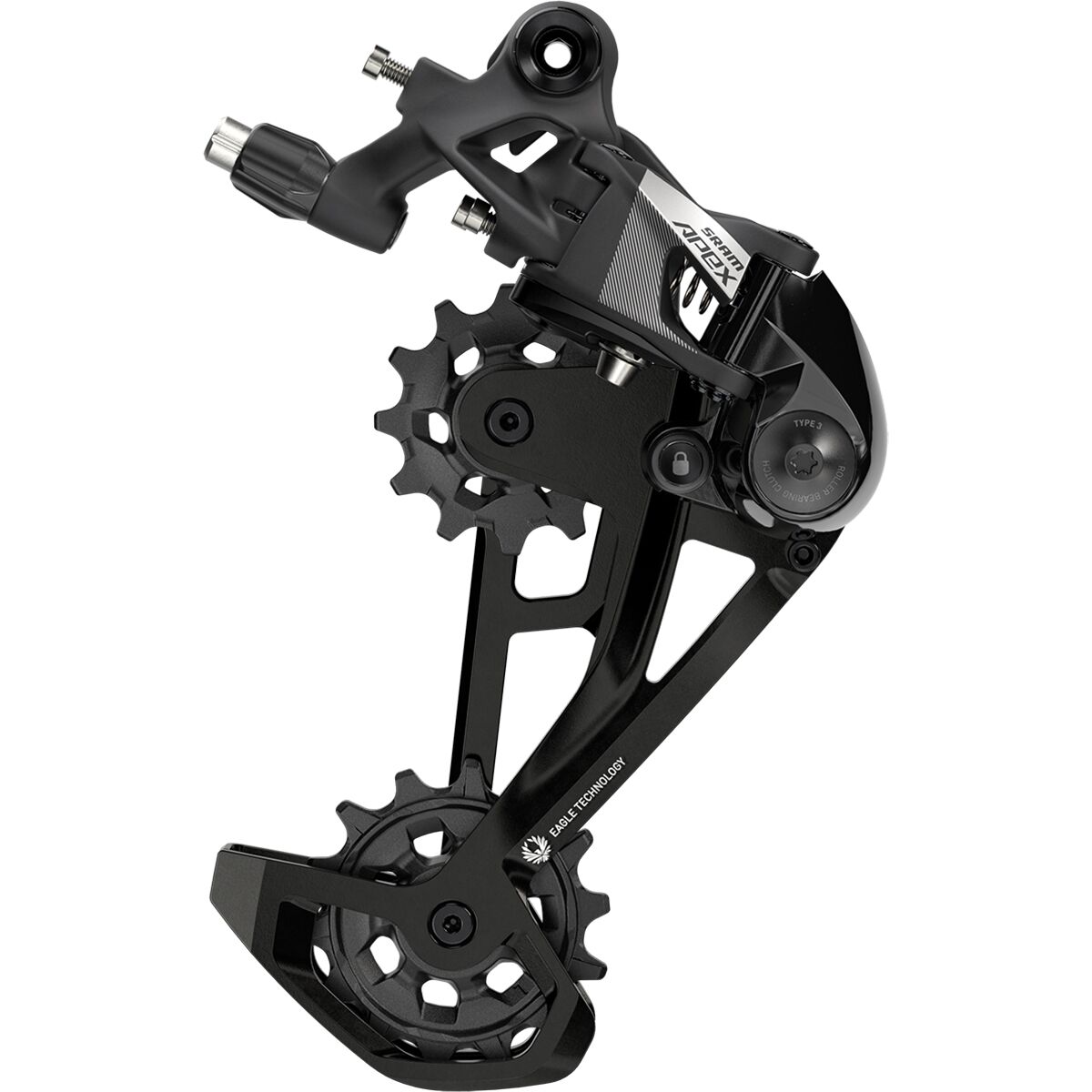

Rear DerailleurSRAM Apex Eagle
CranksetPraxis aluminum, ETOR, 38t ring
CassetteSRAM PG-1210, 10–50t, 12-speed
ChainSRAM NX Eagle

Brakes

BrakesBrake Calipers: SRAM Apex (post-mount front, flat-mount rear); Brake Levers: SRAM Apex Eagle; Rotors: SRAM CenterLine (6-bolt, 200mm front, 180mm rear)

Cockpit & Contact Points

HeadsetAcros
HandlebarSalsa Cowchipper
StemSalsa Guide Trail
SaddleWTB Gravelier
SeatpostTranzX YSP18

Wheels & Tires

Hubs(F) Shimano TC500 15 x 110mm / (R) Shimano TC500 12 x 148mm
RimsWTB ST i27, 29"
Spokes2.0/1.8mm butted
Front TireTeravail Camrock, 29 x 2.2" Durable casing, tan wall
Rear TireTeravail Camrock, 29 x 2.2" Durable casing, tan wall
Wheel Size29"

Size-specific frame data

Geometry

5 sizes · 16 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementX-SmallSmallMediumLargeX-Large
Seat tube430 mm460 mm490 mm520 mm550 mm
Effective top tube538.2 mm563.3 mm588.4 mm613.4 mm638.5 mm
Head tube100 mm105 mm125 mm145 mm165 mm
Head-tube angle65.3°65.3°65.3°65.3°65.3°
Seat-tube angle75.1°75.1°75.1°75.1°75.1°
Chainstay / rear center440.6 mm440.6 mm440.6 mm440.6 mm440.6 mm
Wheelbase1123.7 mm1149.7 mm1178.3 mm1206.8 mm1235.5 mm
Bottom-bracket drop37.6 mm37.6 mm37.6 mm37.6 mm37.6 mm
Bottom-bracket height332.4 mm332.4 mm332.4 mm332.4 mm332.4 mm
Reach380.3 mm404.1 mm424.4 mm444.6 mm464.9 mm
Stack595.4 mm599.9 mm618.1 mm636.3 mm654.5 mm
Standover height725.6 mm749.2 mm776.3 mm803.1 mm829.7 mm
Fork offset / rake44 mm44 mm44 mm44 mm44 mm
Fork length / axle-to-crown531 mm531 mm531 mm531 mm531 mm
Crank length160 mm165 mm165 mm170 mm170 mm
Stem length35 mm35 mm45 mm45 mm45 mm

Geometry source: Salsa first-party metric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry interpretation

What this geometry means

Choose a size

Medium geometry

Riding position

The 424.4 mm reach and 618.1 mm stack sit in a moderate proportion, without a strong long-and-low or tall-and-short bias.

Handling tendencies

A 65.3° head angle combined with a 1178.3 mm wheelbase points to more stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.

Across the size range

From X-Small to X-Large, reach grows by 84.6 mm and stack by 59.1 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 440.6 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.

Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.

Gallery

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
