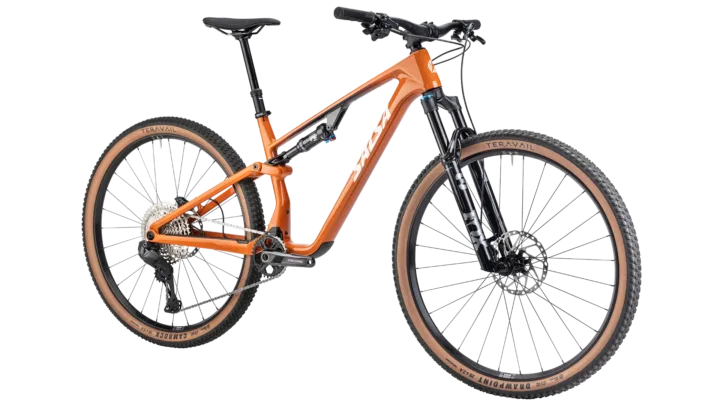

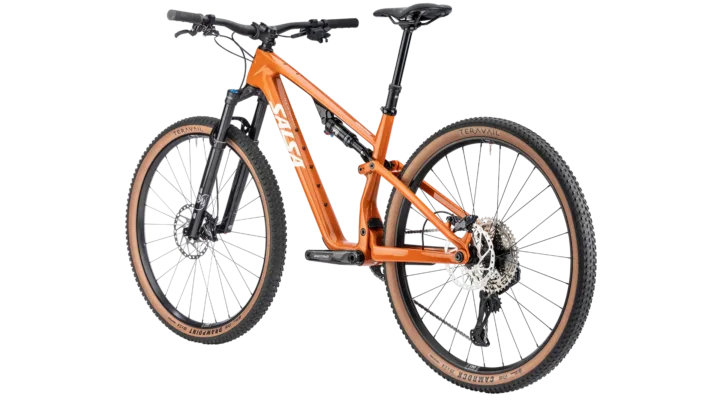

2026 Salsa Spearfish C Deore Di2
Original specifications: 29" wheels · 29 lb. 4 oz. published weight · geometry for 5 published sizes.
Selling this bike? Get the spec link and selling options
At a glance
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $5,999.00
- Sizes
- XS, S, M, L, XL
- Colors
- Amber
- Weight
- 29 lb. 4 oz.
- Geometry
- 5 manufacturer sizes
- In this record
- 20 specifications · 4 archived images · original MSRP · geometry
- Archive ID
- 900000549
Current retail availability
This exact model is available
Backcountry currently lists a 2026 Salsa Spearfish C Deore Di2 matching this Archive record. Available sizes, colors and prices can change.
$6,799.00
Original buildCarbon Fiber · 29"
Frameset
| Frame Construction | Carbon |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Fox 34 SL Performance Elite GRIP X, 44mm offset, 120mm |
Drivetrain
| Shifters | Shimano Deore M6250-R |
|---|---|
| Rear Derailleur | Shimano Deore M6260 SGS Di2 |
| Crankset | Shimano Deore M6120-1, 32t |
| Bottom Bracket | Shimano MT500-PA |
| Cassette | Shimano Deore M6100-12, Hyperglide+, 10–51t, 12-speed |
| Chain | Shimano Deore M6100 |
Brakes
| Brakes | Brake Calipers: Shimano Deore M6120 4-piston; Brake Levers: Shimano Deore M6100; Rotors: Shimano RT64 (Center Lock, 180mm front and rear) |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit 1.5E ZS NO.57E |
|---|---|
| Handlebar | Race Face Aeffect 35.0mm |
| Stem | Salsa Guide 35.0 |
| Saddle | WTB Silverado Steel Fusion Form, medium |
| Seatpost | TranzX YSI08 RAD+ adjustable-travel dropper, Shimano MT500 lever, XS: 125mm; SM–MD: 150mm; LG: 170mm; XL: 200mm |
Wheels & Tires
| Hubs | (F) Shimano TC500 15 x 110mm / (R) Shimano TC500 12 x 148mm |
|---|---|
| Rims | WTB KOM Team i30 TCS, 28h, 29" |
| Front Tire | Teravail Drawpoint 29 x 2.4", 120TPI Light Trail casing, tan wall (WTB TCS Sealant and valve included) |
| Rear Tire | Teravail Camrock 29 x 2.4", 120TPI Light Trail casing, tan wall (WTB TCS Sealant and valve included) |
| Wheel Size | 29" |
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 17 measurements
| Measurement | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 405 mm | 430 mm | 455 mm | 480 mm |
| Effective top tube | 567.8 mm | 584.9 mm | 606.9 mm | 629 mm | 651.1 mm |
| Head tube | 95 mm | 105 mm | 115 mm | 125 mm | 130 mm |
| Head-tube angle | 66.3- 66.0 | 66.3- 66.0 | 66.3- 66.0 | 66.3- 66.0 | 66.3- 66.0 |
| Seat-tube angle | 77.3- 77.0 | 77.3- 77.0 | 77.3- 77.0 | 77.3- 77.0 | 77.3- 77.0 |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1157 mm | 1176.1 mm | 1200 mm | 1224.1 mm | 1248.1 mm |
| Bottom-bracket drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Bottom-bracket height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Reach | 435 mm | 450 mm | 470 mm | 490 mm | 510 mm |
| Stack | 589.3 mm | 598.4 mm | 607.6 mm | 616.7 mm | 625.9 mm |
| Standover height | 719.1 mm | 719.2 mm | 719.2 mm | 719.3 mm | 719.3 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork length / axle-to-crown | 530 mm | 530 mm | 530 mm | 530 mm | 530 mm |
| Crank length | 165 mm | 165 mm | 165 mm | 165 mm | 165 mm |
| Stem length | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Handlebar width | 760 mm | 760 mm | 780 mm | 780 mm | 780 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Parts & serviceability
Find replacement parts

Shimano Deore CN-M6100 Chain Silver, 12 Speed, 126 Links
12 Speed, 126 Links

Shimano Deore 12 CS-M6100 Cassette Silver, 10-51T
10-51T
More parts (6)
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Salsa Spearfish C Deore Di2 · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon · Fork: Fox 34 SL Performance Elite GRIP X, 44mm offset, 120mm
Suspension
Evaluate the suspension →Archived: Fork: Fox 34 SL Performance Elite GRIP X, 44mm offset, 120mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore M6250-R · Rear derailleur: Shimano Deore M6260 SGS Di2 · Crankset: Shimano Deore M6120-1, 32t · Bottom bracket: Shimano MT500-PA · Cassette: Shimano Deore M6100-12, Hyperglide+, 10–51t, 12-speed · Chain: Shimano Deore M6100
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Shimano Deore M6120 4-piston; Brake Levers: Shimano Deore M6100; Rotors: Shimano RT64 (Center Lock, 180mm front and rear)
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Rims: WTB KOM Team i30 TCS, 28h, 29" · Hubs: (F) Shimano TC500 15 x 110mm / (R) Shimano TC500 12 x 148mm · Front tire: Teravail Drawpoint 29 x 2.4", 120TPI Light Trail casing, tan wall (WTB TCS Sealant and valve included) · Rear tire: Teravail Camrock 29 x 2.4", 120TPI Light Trail casing, tan wall (WTB TCS Sealant and valve included)
Controls and contact points
Archived: Headset: FSA Orbit 1.5E ZS NO.57E · Handlebar: Race Face Aeffect 35.0mm · Stem: Salsa Guide 35.0 · Seatpost: TranzX YSI08 RAD+ adjustable-travel dropper, Shimano MT500 lever, XS: 125mm; SM–MD: 150mm; LG: 170mm; XL: 200mm · Saddle: WTB Silverado Steel Fusion Form, medium
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery4 images
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
