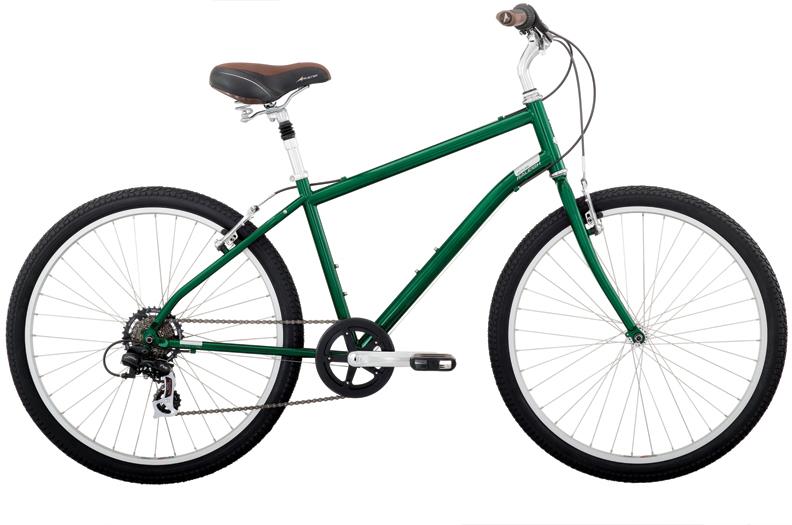

2010 Raleigh Venture
Comfort/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 16", 18", 20", 22"
- Colors
- Dark Green, Medium Silver
- Archive ID
- 21025
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Steel |
| Fork | Raleigh |
| Fork Material | Steel, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Shifters | Shimano SL-RS35 Revo |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano TX-30 |
| Crankset | ProWheel, 40 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | Shimano MF-TZ31 |
| Rear Cogs | 7-speed, 14 - 34 teeth |
| Chain | KMC Z51 |
| Pedals | Avenir Comfort Platform |
Brakes
| Brakes | ProMax Alloy V-Brake brakes, Alloy V-Brake levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded |
|---|---|
| Handlebar | Steel comfort riser |
| Handlebar Extensions | Not included |
| Stem | Alloy Quill |
| Saddle | Avenir Comfort |
| Seatpost | Alloy Micro adjust Suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Joytech Alloy QR |
|---|---|
| Rims | Weinmann CN520, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Kenda K-841A w/K-shield |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
