Velopedia Bicycle Archive

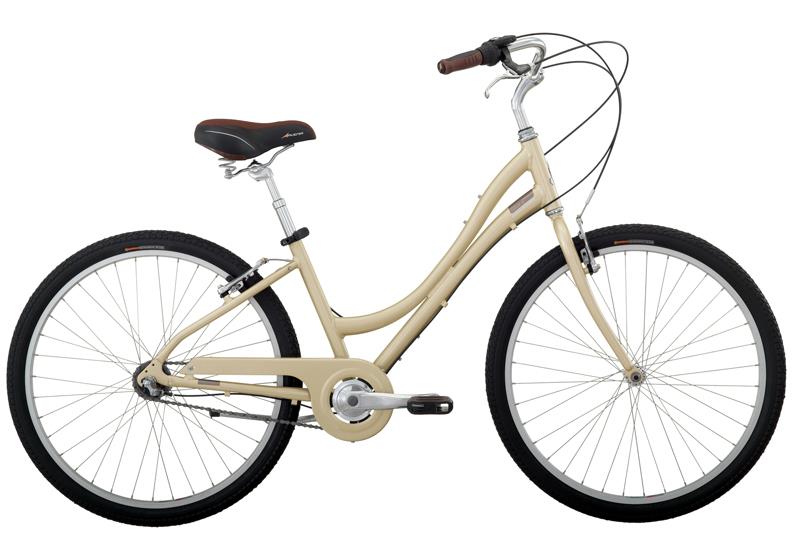

2010 Raleigh Circa 3 Women's
Comfort/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 14", 16", 19"
- Colors
- Champagne
- Archive ID
- 20996
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Atomic 13 Aluminum |
|---|
| Fork | Raleigh |
|---|
| Fork Material | Steel, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Comfort Mix |
|---|
| Shifters | Shimano Nexus 3spd |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | Forged aluminum, 36 teeth |
|---|
| Bottom Bracket | Sealed cartridge |
|---|
| Cassette | Shimano |
|---|
| Rear Cogs | 8-speed internal, 20 teeth |
|---|
| Chain | KMC HG40 |
|---|
| Pedals | Avenir Comfort Platform |
|---|
Brakes
| Brakes | Tektro V-brake brakes, Tektro levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded Threaded |
|---|
| Handlebar | Alloy Comfort Easy-Reach |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Alloy Quill |
|---|
| Saddle | Avenir Deluxe Comfort |
|---|
| Seatpost | Alloy Micro Adjust Bootless Suspension, 27.2mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Joytech Alloy QR, Rear: Shimano Nexus 3 speed Internal Gear |
|---|
| Rims | Weinmann XC-260, 36-hole |
|---|
| Spokes | Stainless, 14ga. (2.0mm) |
|---|
| Front Tire | 26 x 1.95" Kenda K-841A w/K-shield |
|---|
| Wheel Size | 26" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
